Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: 3D-FB N-JJ-20M
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+7--15+kit
Packaging Details: Standard neutral packing10*10*5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Cable: |
3D-FB |
Impedance: |
50OHm |
RF Connect Type: |
N/Male-N/Male |
Weight: |
0.65kg |
Color: |
Black/White |
Length: |
20M |
Products Name: |
Cellular Signal Booster |
Conductor Material: |
Copper |
Jacket Material: |
PVC |
Cable: |
3D-FB |
Impedance: |
50OHm |
RF Connect Type: |
N/Male-N/Male |
Weight: |
0.65kg |
Color: |
Black/White |
Length: |
20M |
Products Name: |
Cellular Signal Booster |
Conductor Material: |
Copper |
Jacket Material: |
PVC |

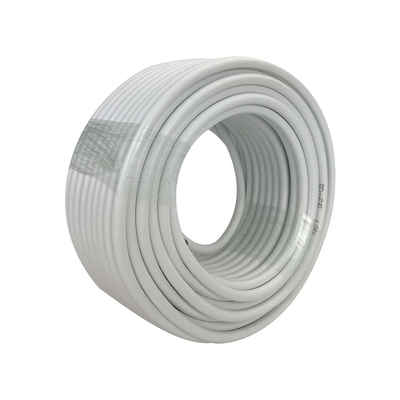

3D FB 20M N Male Custom Coax Cable For Mobile Phone Signal Repeater
Product Description
Cables are used for conveying electrical energy or communicating data and signals over distances.
They consist of one or more conductors, typically made of metal like copper or aluminum, which are encased in insulating materials and often shielded or armored to protect against environmental factors and interference.
Electrical Properties and Mechanical Properties :
1 . Characteristic impedance : 50 ohm
2 . Rated capacitance : 82 pf/m
3 . Velocity of propagation : 84 %
4 . Operating frequency : 1- 6000 MHz
5 . Operating temperature : -25°C ~ +70°C
6 . Minimum bending radius : 61 mm
7 . VSWR : 1 ~ 3000 MHz ≤ 1.15 ; 1 ~ 6000 MHz ≤ 1.20
Cable Construction :
1 . Inner conductor : Bare Copper or Copper Clad Aluminum, 1.42mm Diameter
2 . Insulation Layer : Foam Polyethylene (FPE), 3.81mm Diameter
3 . Outer Conductor : Single-sided Self-adhesive Aluminum Tape Tinned Copper, 4.52mm Diameter
4 . Jacket : Polyvinyl Chloride(PVC ) or Polyethylene (PE), 6.10mm Diameter

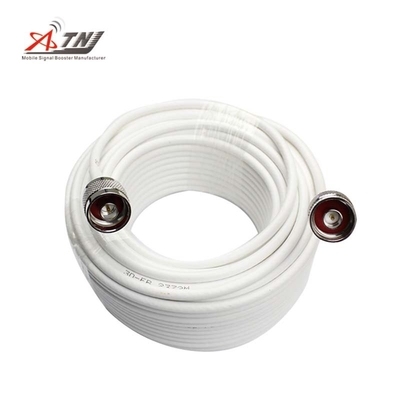

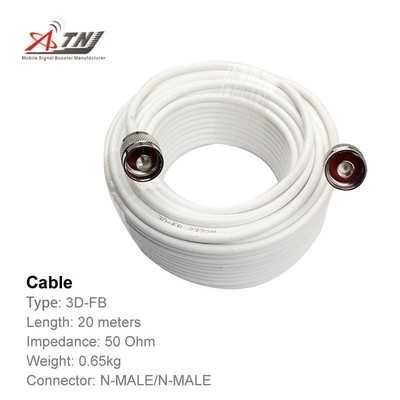

20 Meters N Male To N Male
|
Delivery quantity |
1 piece(s) |
|
Package |
Carton package |
|
Logo |
Customized logo printing on cable |
|
Color |
White |
|
OD |
6mm |
|
Length |
20 meters/roll |
|
Jacket |
PVC material with transparent surface |
|
Inner Conductor |
Copper |
|
Usage |
For all kinds of electronic |
|
Certification |
RoHS |
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
We are manufacturer, and have our own factory.
FAQ :
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?
A1 : We are factory, with trading service. We provide OEM/OEM service.
Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q3 : Can your company accept customize?
A3 : Welcome OEM & ODM.
Q4 : What is your payment terms?
A4 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
