5W Customized High Gain 85dB 3G Signal Booster Band1 WCDMA 2100MHz

Name: 5W Customized High Gain 85dB 3G Signal Booster Band1 WCDMA 2100MHz
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AT-37-W
Price: 1,225.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AT-37-W

Trading Properties

Minimum Order Quantity: 5Pcs

Price: USD+1100--1350+kit

Payment Terms: T/T,Western Union,Paypal,Bank transfering

Supply Ability: 1000+unit+per day.

Mobile Signal Boosters

LTE Cell Signal Booster

Cellular Signal Booster

Specifications

2100MHz Frequency Range:	1920-1980MHz , 2110-2170MHz	Booster Gain:	85dB
Booster Power:	37±2dBm	Material:	Zinc Alloy ,Plastic
Booster Bandwidth:	Wide Range	Support network:	3G, 4G, Voice
Booster Warranty:	3 Years	Products Type:	3G Signal Repeater, 5watt Signal Repeater
High Light:	90dB 3G Signal Booster , 5W 3G Signal Booster , 90dB High Gain Signal Amplifier

Product Description

5W Customized High Gain 85dB 3G Signal Booster Band1 WCDMA 2100MHz

Product Overview

5 Watt Customized WCDMA 2100MHz 3G Signal Booster Cell Tower Signal Repeater Amplifier designed for enhanced cellular signal coverage in weak signal areas.

Technical Specifications

Model No	AT-37-W
Function	With ALC AGC Function. Can control gain automatically. Avoid base station interference
Frequency (Band 1)	2100MHz -- Uplink frequency: 1920-1980MHz / Downlink frequency: 2110-2170MHz
Network Support	3G 4G Voice
Gain	85dB
Output Power	5watt
Power Supply	AC110V～220V; DC+24V 5A
Connector Type	N-F
Bandwidth	Wide Range

Detailed Specifications

Device Model	AT-37-W
Frequency Range	Uplink: 1920-1980MHz Downlink: 2110-2170MHz
Working System	Band1 WCDMA 2100MHz
Gain	85dB
Device Output Power	37dBm
Bandwidth	Wide Range
Ripple in Band	≤4dB
Noise Figure @ Max.Gain	≤6dB
V.S.W.R	≤2dB
MTBF	>50000 Hours
Power Supply	AC110V～220V; DC+24V 5A
Power Consumption	<20W
Impedance Matching	50ohm

Mechanical Specifications

RF Connector	N/F
Cooling	Heatsink Convection Cooling
Dimension	17013026(mm)
Net Weight	0.35KG
Installation Type	Wall Installation or Desk
Environment Conditions	IP55X
Origin	Shenzhen
Operating Temperature	-10°C~55°C

Key Features

Smart LCD: Shows real-time signal strength

Sleeping Mode: When no user calls, the device works in Sleeping mode for energy saving

ALC (Automatic Level Control): Automatically adjusts output gain to optimal figure for improved calling and data transfer quality

AGC (Automatic Gain Control): Automatically reduces gain when downlink output signal is too strong or self-oscillated to reduce interference

MGC (Manual Gain Control): Gain attenuation adjustment function with adjustment scope of 0-33dB for convenient installation

General Specifications

Output Power	5W/10W/20W
Power Supply	AC adapter
Size	308219135mm
Weight	7.0kg

How to Check Frequency Before Buying

Android mobile phone: Download App called "Network Cell Info Lite". The App will tell the number of LTE band.

iPhone: Dial *3001#12345#*. Click Cell Serving Info. Check Freq Band Indicator, the number is LTE Band.

Product Images

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit

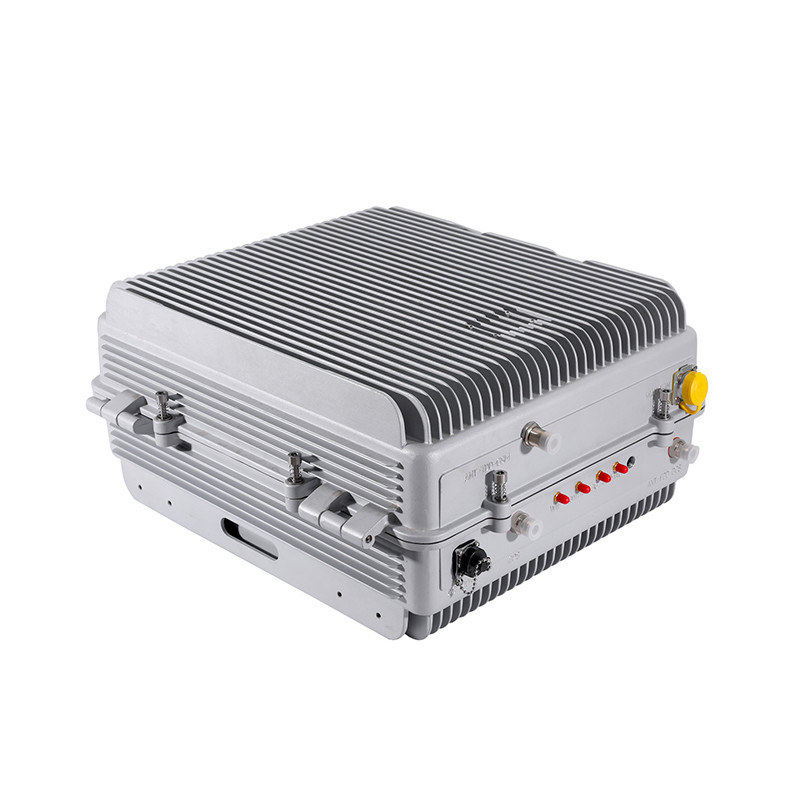

5W Customized High Gain 85dB 3G Signal Booster Front View

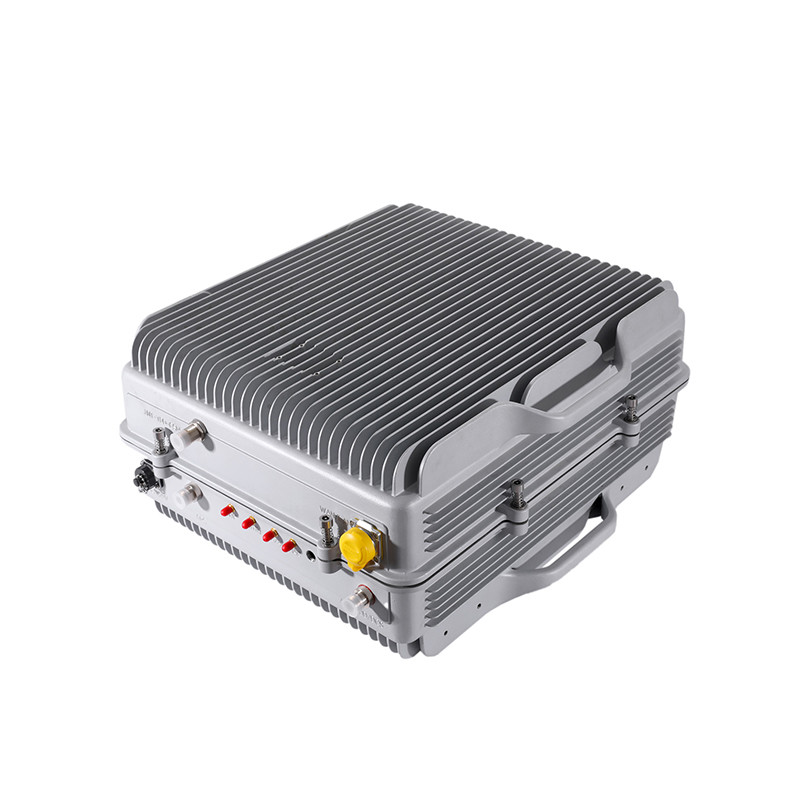

5W Customized High Gain 85dB 3G Signal Booster Side View

5W Customized High Gain 85dB 3G Signal Booster Internal Components

Frequently Asked Questions

1. I am in Kazakhstan and which band/frequency should I choose?

Frequency band chart for Kazakhstan mobile operators

Usually the typical frequencies work in Kazakhstan mobile operators should be 900MHz (2G), 850/900/2100MHz (3G) and 1800MHz work for 4G and part of 5G. Feel free to contact us for confirming a suitable model at your local area.

2. Are you trading company or manufacturer? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/ODM service.

3. Can I have a sample order? What is your MOQ?

Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

4. Is it easy to set up your items?

Yes. We have a user manual and support technical support 24/7.

5. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Warranty Information

● Please note that we always check and test the product twice before shipping and pack them well as far as possible. If the product is broken at receiving, please contact us, we would resend you a new one.

● Three years warranty period for our booster, it is only 3 months for the accessories. If the booster have any problems, please show us a video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us. We will reply you within 24 hours, except holiday.

Additional Documentation

Further detail please click here for downloading the products specification.
