Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: SMA Male-N Female
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1--3+kit
Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
RF Connect Type: |
Customized SMA Male-N Female |
Weight: |
0.05kg |
Material: |
Zinc Alloy |
Packing Size: |
3.5x3.5x3.5cm |
MOQ: |
1PCS |
Warranty: |
1 Year |
Products Type: |
4g Signal Repeater |
Impedance: |
50OHm |
RF Connect Type: |
Customized SMA Male-N Female |
Weight: |
0.05kg |
Material: |
Zinc Alloy |
Packing Size: |
3.5x3.5x3.5cm |
MOQ: |
1PCS |
Warranty: |
1 Year |
Products Type: |
4g Signal Repeater |

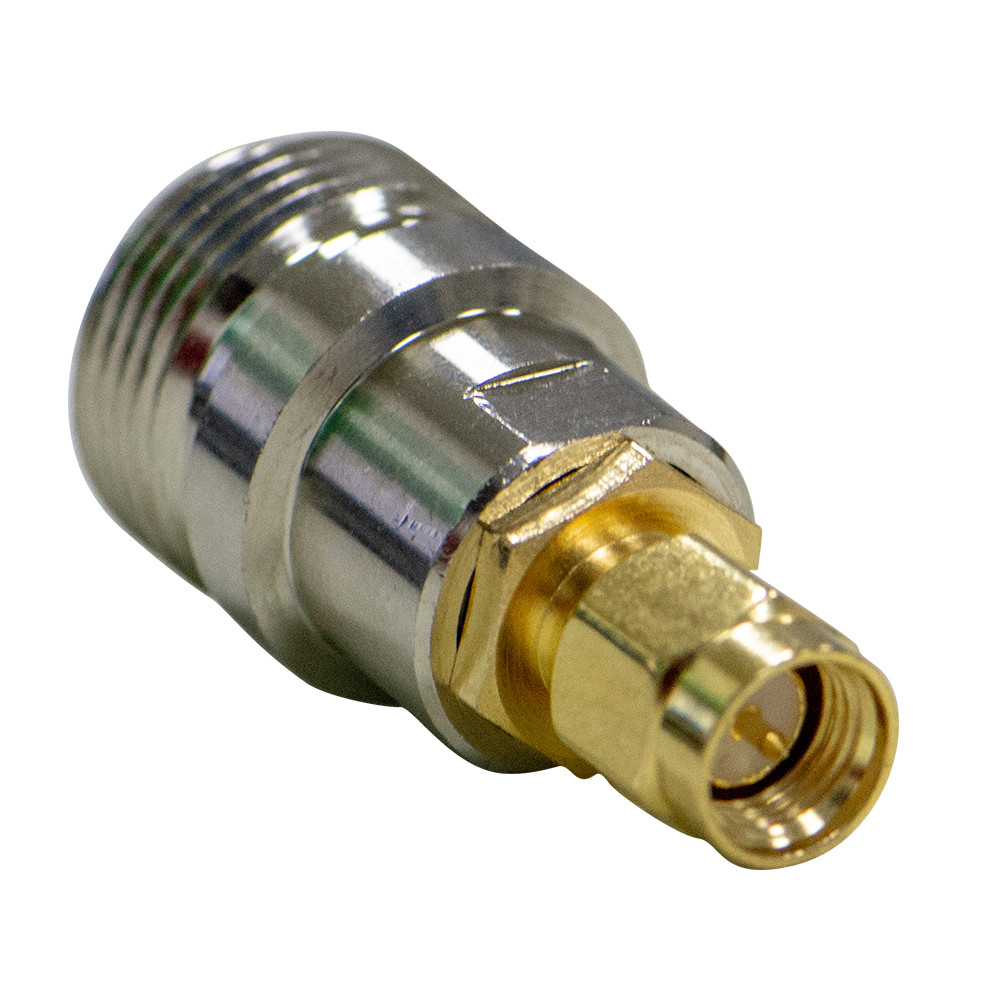

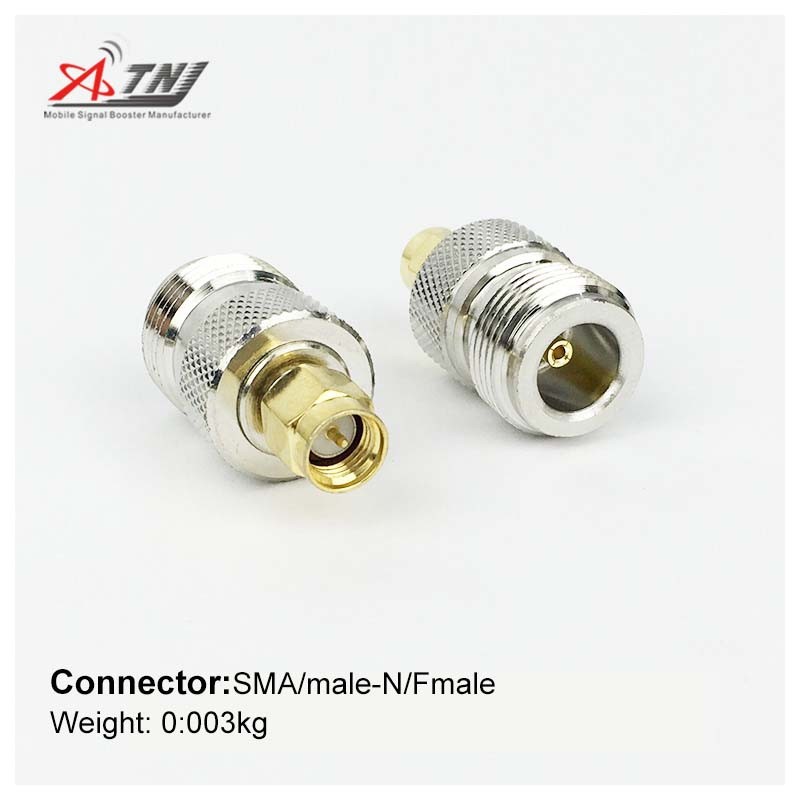

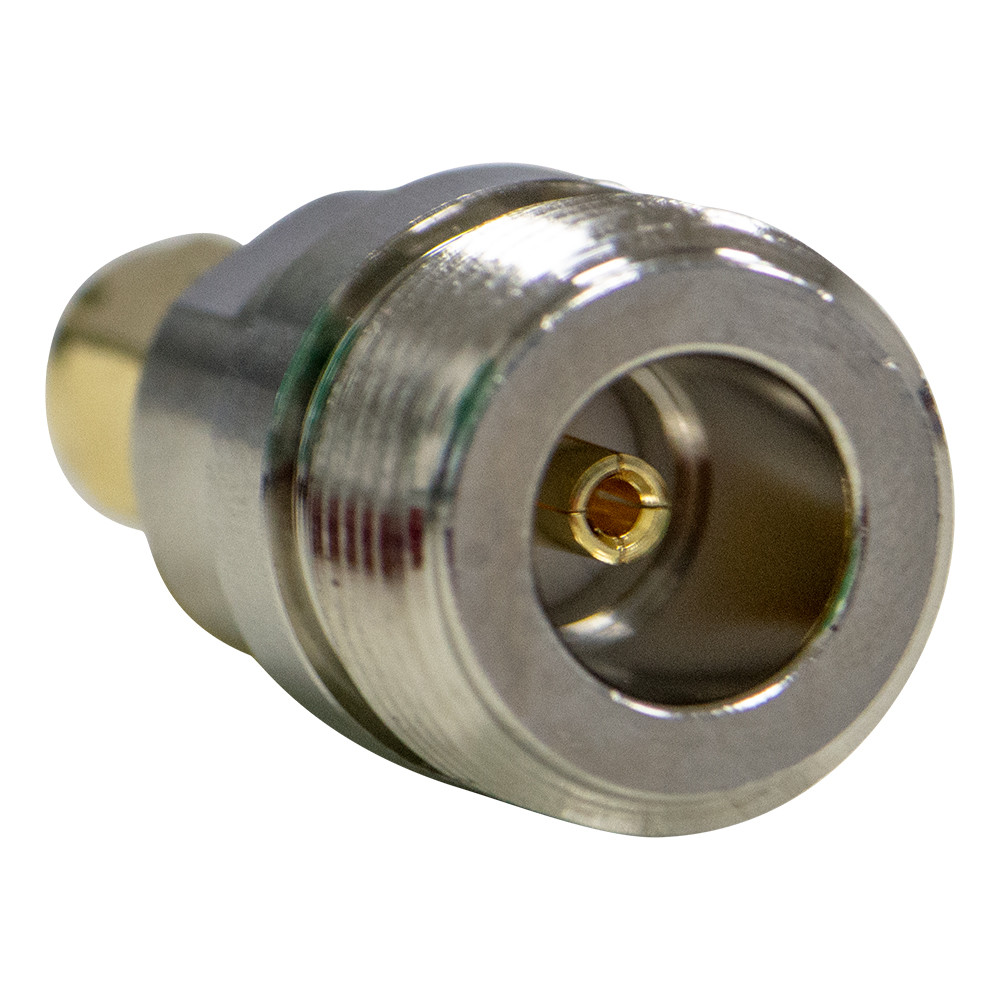

DC To 6GHz Mobile Signal Booster Connector Zinc Alloy Material
RF Coaxial Adapter SMA Male-N Female Connector for GSM DCS 3G Repeater Booster Amplifier
Product specification
● Category:Connectors, Interconnects
● Impedance: 50 Ohm
● Material:Zinc Alloy
● British system F connectors diameter: 9.2-9.4 mm.
✔ RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.SMA Male-N Female type male female crimp connector for LMR195 LMR200 LMR240 LMR300 LMR400 LMR600 RG8U RG58 Cable
|
Connector Series |
SMA Male-N Female type male crimp connector |
|
Connector Impedance |
50 OHm |
|
VSWR |
MAX 1.15 |
|
Frequency |
DC to 6GHz |
|
Connector Body Material |
Nickel/gold |
|
Interface |
|||
|
According to |
IEC60169-15 IEC60169-16 |
||
|
Electrical |
|||
|
1 |
Characteristic Impedance |
50Ohm |
|
|
2 |
Frequency Range |
DC-3GHz |
|
|
3 |
VSWR |
1.08 |
|
|
4 |
Dielectric withstanding voltage |
≥ 1000RMS,50Hz,at sea level |
|
|
5 |
Dielectric Resistance |
≥ 5000MΩ |
|
|
6 |
Contact Resistance |
Outer Contact ≤ 1.0mΩ ;Center Contact ≤ 1.0mΩ |
|
|
Mechanical |
|||
|
1 |
Durability |
Mating cycles ≥500 |
|
|
Material and plating |
|||
|
|
Description |
Material |
Plating |
|
1 |
Body |
Brass |
Ni |
|
2 |
Insulator |
PTFE |
– |
|
3 |
Center conductor |
Phosphor bronze |
Au |
|
4 |
Other |
Brass |
Ni |
Note:This connector is for RG6 coaxial cabla. The price is for one piece.
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ:
Q1 : How to select RF connectors?
A1 :
Q2 : How about the MOQ & delivery time?
A2 : We have large of inventory,1pcs is OK for us. And We can ship most orders in 3-5 working days.
Q3 : How about the Shipping Method?
A3 : DHL/UPS/TNT/Fedex or by Air/Sea. It takes 4-7 days from China to your office by express.
Q4 : How about the label and the logo?
A4 : Customize label and logo is workable.
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
Q6 : How many the warranty?
A6 : All our goods are 12 months warranty and we will do free replacement for all the problem items.
