20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier

Brand Name: ATNJ
Model Number: AT-17-DWTD35
MOQ: 5Pcs
Price: USD+325---350+kit
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 100+unit+per Month.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
1800MHz Frequency Range::
1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range::
1920-1980MHz / 2110-2170MHz
3500MHz Frequency Range::
3300-3600MHz / 3300-3600MHz
Device Gain:
UL:65±3dB DB,DL:70±3dB
Device Output Power:
UL: 17±2 DBm, DL:20±2 DBm
Color For Choice:
Grey
RF Connectoer:
N/Female
Coverage:
300-500sqm
Single Gross Weight::
3.5 Kg
Packaging Details:
Standard neutral packing,54x47x24.5cm(1 pcs),
Supply Ability:
100+unit+per Month.
Product Description

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier


 Product Features:

  • Fully Intelligent Display System.
  • Fully intelligent amplification adjustment (ALC/AGC).
  • LCD display of input and output power.
  • Auto uplink noise reduction, avoid disturbing to BTS.
  • When there is no user on the phone, the device will enter the automatic sleep state.
  • Built-in intelligent software detects the distance between Donor Antenna and Retransmission Antenna.
  • Uplink can be automatically shut down if self-excitation is detected.



Technical Specifications:


P/N: AT-20-DWTD35B3 (1800MHz)B1 (2100MHz)N77/78 (3500MHz)
Frequency RangeUplink1710-1785MHz1920-1980MHz3300-3600MHz
 Downlink1805-1880MHz2110-2170MHz3300-3600MHz
Bandwidth75MHz60MHz300MHz
Max. GainUplink65±3 dB65±3 dB65±3 dB
 Downlink70±3 dB70±3 dB70±3 dB
Manual Gain Control31 dB in step of 1 dB
Automatic Gain Control≧ 20 dB
In-band fluctuation≦ 8 dB
Max. Input Power Without Damage0 dBm
Output PowerUplink17±2 dBm17±2 dBm17±2 dBm
 Downlink20±2 dBm20±2 dBm20±2 dBm
Spurious Mask3GPP
Spurious Emission9KHz-1GHz≦ -36dBm
 1GHz-12.75GHz≦ -30dBm
ACRRUplinkUplink≦-33dBc/ Downlink≦-40dBc
 DownlinkUplink≦-40dBc/ Downlink≦-45dBc
EVM≦ 8%
Frequency Stability≦ ±0.01 ppm
Noise Figure≦ 9 dB
VSWR≦ 2.5
System Delay≦ 1 µs
RF ConnectorN-Female*2
Impedance50 Ω
Power SupplyDC 24V/3A
Power Consumption≦ 35W
Dimensions234*200*52 mm
Weight≦ 3.5 kg
IP RatingIP30
Operating Temperature-10 °C to 50 °C
DisplayLCD

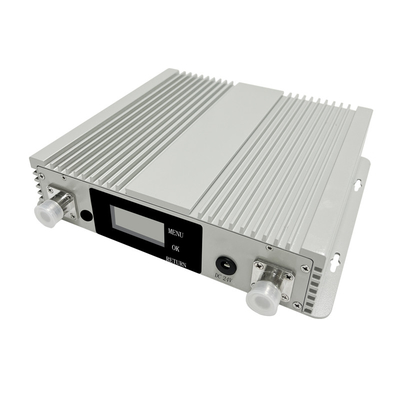

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier 0

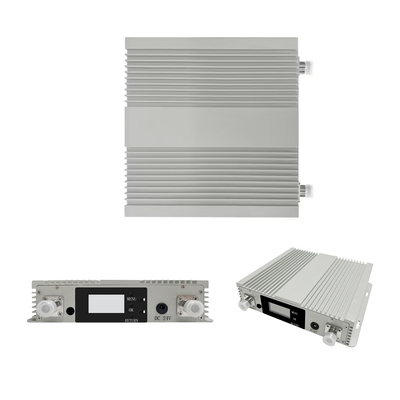

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier 1

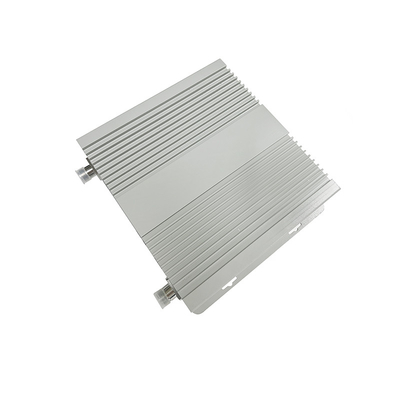

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier 2

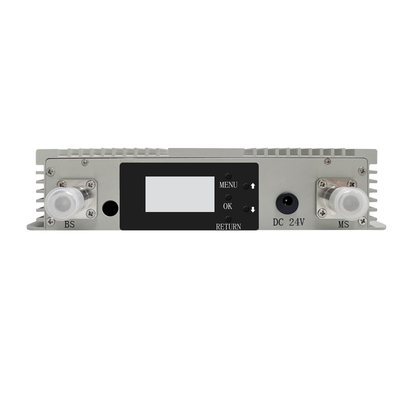

20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier 3
20dBm 70dB Tri band 1800/2100/3500MHz 4G LTE NR 5G repeater 5G signal booster amplifier 4


FAQ


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
