SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

Name: SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: SDR TR
Price: 2,217.00 USD
Availability: InStock

Basic Properties

Place of Origin: shenzhen

Brand Name: ATNJ

Certification: CE, RoHs, CCC, ISO9001

Model Number: SDR TR

Trading Properties

Minimum Order Quantity: 1--5pcs

Price: USD2150-USD2285

Payment Terms: T/T,Paypal,Western Union，Alibaba insurance payment

ISO WIFI Repeater Amplifier

WIFI Repeater Amplifier 33dBm

WIFI Repeater Amplifier 2.4GHz

Specifications

Type:

RF Module

Working frequency:

400MHz~8000MHz

multipliers:

424 18*18

attenuation range:

0~31dB

High Light:

SDR TR card for signal repeater

SDR TR card for radio

Product Description

SDR core PCBA board features:

1. SDR platform consisting of FPGA and RF direct acquisition transceiver.

2. 100K logic resources, 424 18*18 multipliers, resource-rich FPGA.

3. 4T4R 14-bit ADC and DAC RF direct sampling transceiver.

4. Working frequency: 400MHz~8000MHz.

5. Large scanning bandwidth, currently supports the maximum sampling bandwidth of 160MHz per channel; It can be designed to support a
maximum sampling bandwidth of 800MHz per channel.

6. 32 bit high-precision frequency control.

7. Each RF channel, input and output have DSA built-in, and the attenuation range is 0~31dB.

8. No LO leakage and I/Q imbalance.

9. Application: public network 3G, 4G, 5G, TDD and FDD mobile communications, signal monitoring systems, other radio radar and detection, private network communication systems, etc.

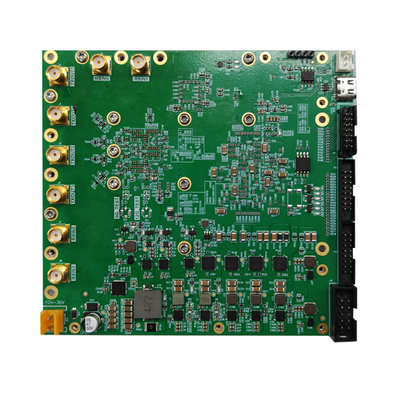

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio 0

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio 1

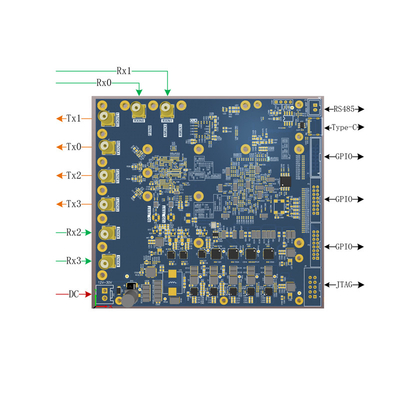

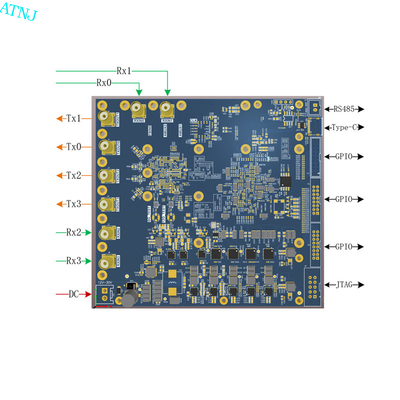

Card Diagram①

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio 2

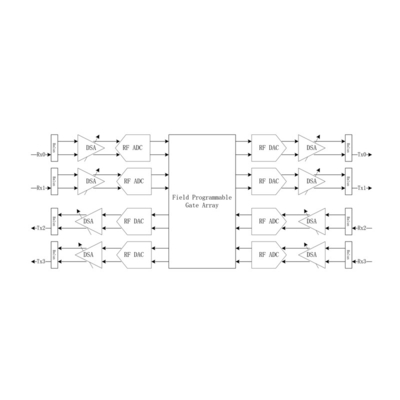

Card Diagram②

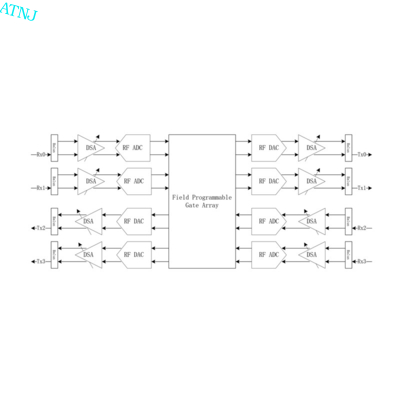

Card Diagram③

Typical Application

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio 6

FAQ

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. Please feel free to contact us if there are any other questions.
