GSM 900MHz Cellular Signal Booster Gain 70dB Wide Coverage Area

GSM 900MHz Cellular Signal Booster Gain 70dB Wide Coverage Area

Brand Name: ATNJ
Model Number: AS-EGSM
MOQ: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Device Gain:
68±2dB
Device Power:
17±3
Frequency Range:
880-915MHz,925-960MHz
Interface::
SMA/F
Material:
Zinc Alloy ,Plastic
Warranty:
3 Years
Products Type:
Cellular Signal Booster
Country Of Origin:
ShenZhen,China
Supply Ability:
1000+unit+per day.
High Light:

900MHz Cellular Signal Booster

,

70dB 900MHz Signal Booster

,

70dB Cellular Signal Booster

Product Description

GSM 900MHz Cellular Signal Booster Gain 70dB Wide Coverage Area



GSM 900MHz Mobile Signal Booster Band8 Cellular Amplifier



ATNJ Cell Phone Signal Repeater Internet RF Signal Amplifier GSM 3G 4G LTE Radio Mobile Signal Booster with Antenna

Model No AS-EGSM



Product Description



A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.



Feature:

- Strong output power, wide coverage area

- LCD display signal in real time

- High gain can support multiple loads



Description

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

880-915MHz

Downlink

925-960MHz

Frequency Bandwidth (3dB Bandwidth)

35MHz

Gain

68±2dB

Automatic gain control (Step Attenuation)

31dB @ 1dB / Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm / 30kHz

9kHz~1GHz: ≤ -36dBm / 30kHz

1GHz~12.75GHz: ≤ -30dBm / 30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<= 2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

 - 10°C ~ + 55°C

Dimensions

165*130*40 (mm)

Country of Origin

China

Further detail pls click here for downloading the products specification:

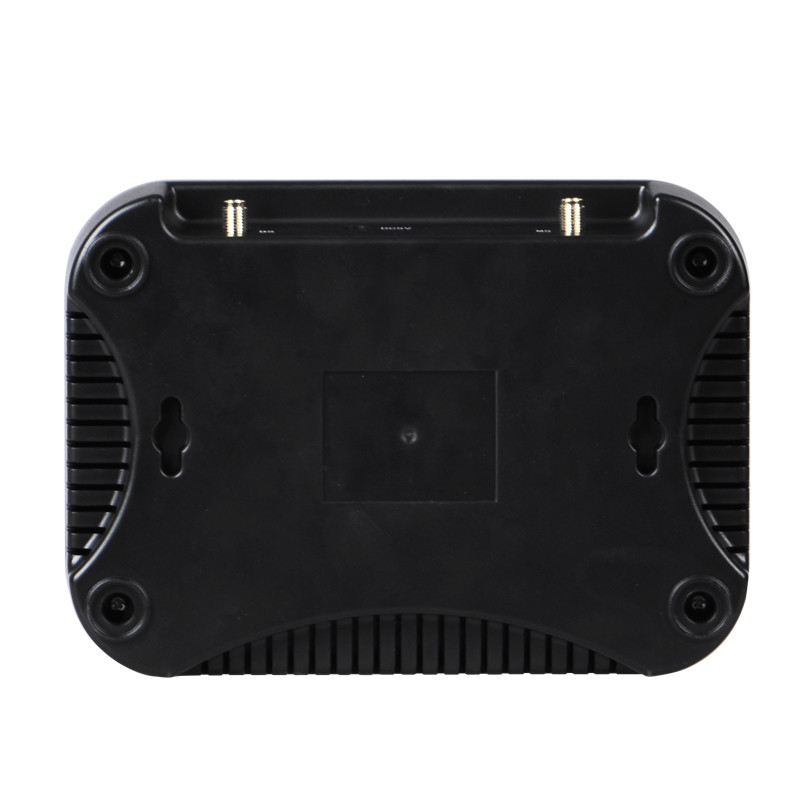

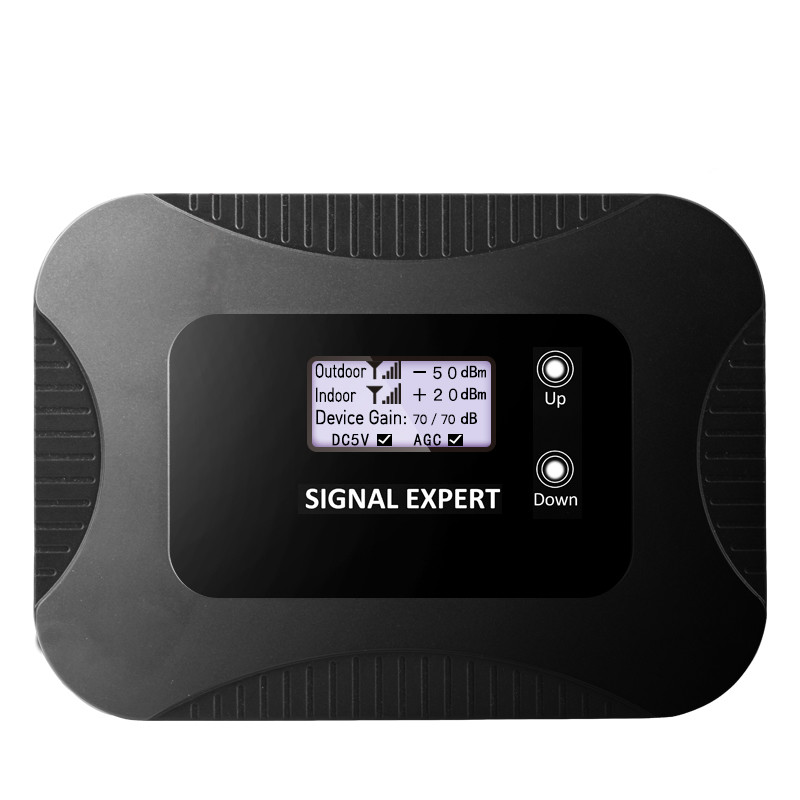

Product Pictures

EDUP Cell Phone Signal Repeater Internet RF Signal Amplifier GSM 3G 4G LTE Radio Mobile Signal Booster with AntennaEDUP Cell Phone Signal Repeater Internet RF Signal Amplifier GSM 3G 4G LTE Radio Mobile Signal Booster with Antenna

FAQ

1. What is your advantage?

--- Your inquiry will be replied in 24hours

--- Well-trained and experienced staffs to answer all your inquires in fluent English

--- OEM&ODM, for any of your customized products we can help you to design and put into product

--- All our products with 12months guarantee



2. What is our Payment methods?

We agree T/T, Western Union, PayPal.L/C for old customers.



3. What is our Shipping & Trade terms?

Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.

Delivered time: 1-3 business days for sample, 10-25 days for mass order.

Trade terms: EXW, FOB , CIF etc.



4. What is our Warranty and Certificates?

Our warranty is 12 months.

We have CE, ROHS, FCC certificates



5. What is your MOQ?

1pc sample test is welcomed
