Product Details:
|
| Model Number: | ATNJ-TR 800/900/2600/H | 800MHz Frequency Range: | 832-862MHz / 791-821MHz |
|---|---|---|---|
| 900MHz Frequency Range: | 890-915MHz / 925-960MHz | 2600MHz Frequency Range: | 2500-2570MHz / 2620-2690MHz |
| Cellular Networks: | 2G 3G 4G | Power Supply: | AC110-220V |
| Color: | Black | Warranty: | 12 Months |
| Packing Size: | 48x46x18cm | Products Type: | Cell Phone Booster, Cell Phone Booster |
| High Light: | Tri Band Mobile Signal Booster Amplifier,80dB Mobile Signal Booster Amplifier,900MHz Tri Band Repeater |
||

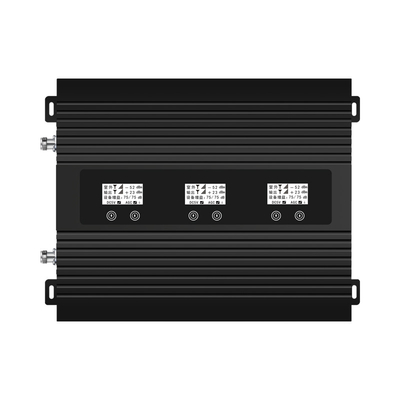

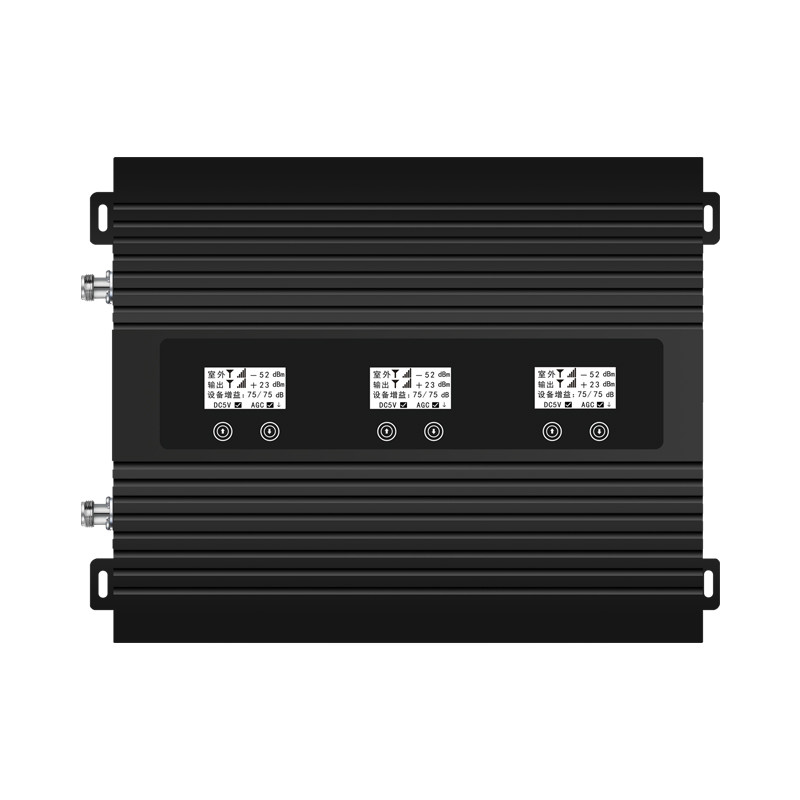

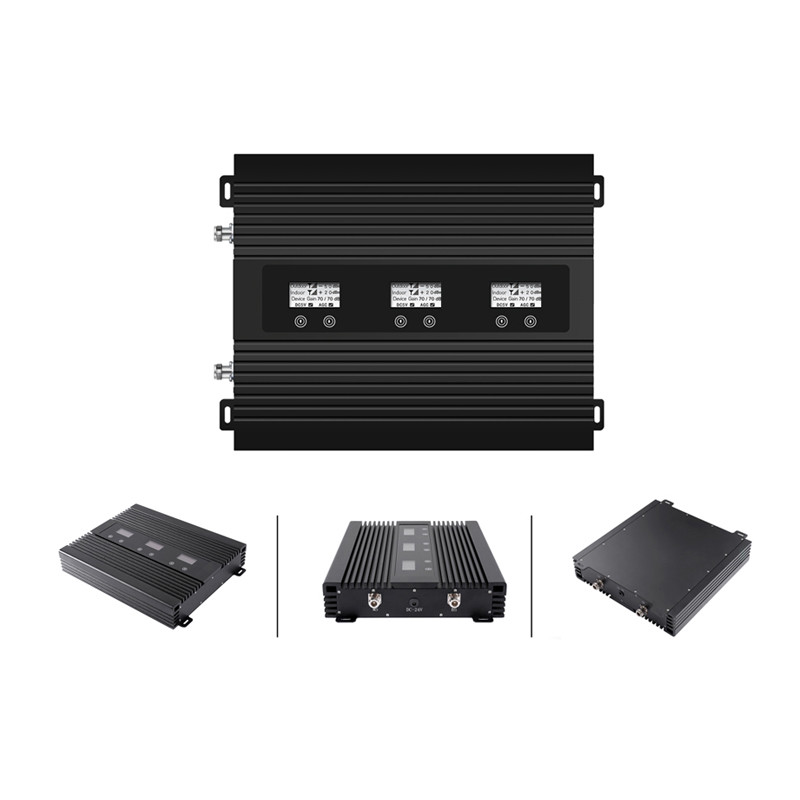

Powerful 80dB Tri-band 800MHz 900MHz 2600MHz Mobile Signal Booster Amplifier
Shenzhen ATNJ Communication Technology Company, located in Shenzhen City, was founded in 2010. It is main focus on Micro power repeater, Antenna Series, Passive Components. With professional engineers, workers and with senior management personnel, the group maintained high-speed development. Meanwhile, the Up-to-date facilities and technology end sure the business long-term
development. Nowadays, our hot sale products are GSM900, DCS1800, 3G, CDMA signal repeater. In the following details, the products are showed in different part and patents.
Selling Point
1. Intelligent to guide the installation with LCD.
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling.
4. Automatic alarm when installation mistake and provide the according solution.
5. Automatic adjust the system gain to avoid the repeater self-excitation.
6. Initiative reminding when the device was damaged.
Technical Specifications:
| SPECIFICATIONS | PARAMETERS | ||
| Frequency Range | LTE 800 | 791-821MHz832-862MHz | |
| GSM 900 | 890-915MHz/935-960MHz | ||
| LTE 2600 | 2500-2570MHz/2620-2690MHz | ||
| Band Width | LTE 800 | 30MHz | |
| GSM 900 | 25MHz | ||
| LTE 2600 | 70MHz | ||
| Gain | 80±3dB | ||
| Automatic Gain Control | 31dB | ||
| MGC (Step Attenuation) | 31dB@ 1dB/Step | ||
| Output Power | 27±3dBm | ||
| Spurious Emission | 9 kHz -150 kHz/1kHz | ≤-36dBm | |
| 150 kHz - 30 MHz/10kHz | ≤-36dBm | ||
| 30 MHz - 1 GHz/100kHz | ≤-36dBm | ||
| 1 GHz- 12.75 GHz/1MHz | ≤-30dBm | ||
| ACPR | Uplink Fully comply with 3GPP 36.106 | ||
| Downlink Fully comply with 3GPP 36.106 | |||
| Unwanted emissions | Fully comply with 3GPP 36.106 | ||
| VSWR | ≤2 | ||
| Ripple | LTE 800 | ≤6dB | |
| GSM 900 | ≤6dB | ||
| LTE 2600 | ≤6dB | ||
| Noise Figure | ≤8dB | ||
| Delay | ≤1μs | ||
| I/O Impedance | 50Q | ||
| RF Connector(Customers to Choose) | N-Type (Female) | ||
| Operating Temperature | -25°~+55° | ||
| Power Supply | DC 24V | ||
| Power consumption | ≤75W | ||
| Environment Conditions | IP43 | ||
| Humidity | ≤90% | ||
| Weight | 2.8kg | ||
| Size | 355×269×58mm | ||
Further detail pls click here for downloading the products specification:
800+900+2600 A013 Signal Repeater.pdf
Product Description
① . PACKAGE: Natural carton package or OEM service.
② . LEADTIME: 3-5days for samples, order depand on the quantity.
③ . SHIPPING METHOD: DHL, EMS, UPS etc as you want.
