| Brand Name: | ATNJ |
| Model Number: | AS-LTE+5G |
| MOQ: | 5Pcs |
| Price: | USD+450---580+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

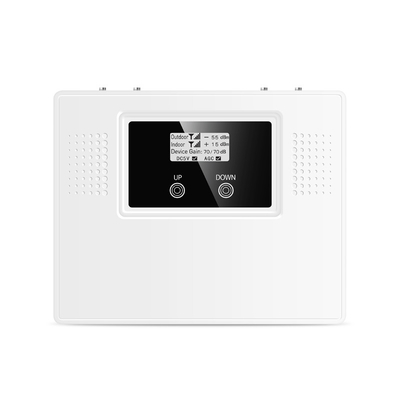

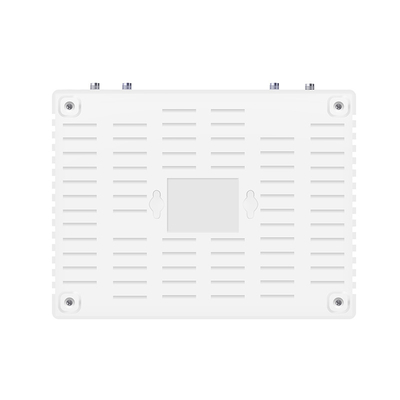

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular
General
The 5G Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
5G Signal Booster 1800MHz + N77 Customized 3300 - 4200MHz Cellular Signal Repeater Amplifier
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Technical Specifications
|
LTE 1800 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
Remark |
|
Frequency range |
1710MHz-1785 MHz |
1805 MHz-1880 MHz |
|
|
Bandwidth |
75 MHz |
75 MHz |
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
65±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤8dB |
≤8dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
EVM |
≤3.5% |
≤3.5% |
|
|
TDD-NR 3300---4200 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
|
|
Frequency range |
3300MHz-4200MHz or 3300MHz-4200MHz |
|
|
|
Bandwidth |
100 MHz |
|
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
60±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤5dB |
≤5dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
256QAM EVM |
≤3.5% |
≤3.5% |
|
|
Performance Characteristics |
|||
|
Working voltage |
DC 5.0V |
|
|
|
Working current |
≤3.0A |
|
|
|
Power adapter input voltage |
AC 100～240V,50/60Hz |
|
|
|
Power comsumption |
≤15W |
|
|
|
Enviroment temperature |
-25℃～+55℃ |
|
|
|
relative humidity |
≤85% |
|
|
|
Device connection type |
SMA-J |
|
|
|
Power port |
KLD-35-13 |
|
|
|
Device size |
205×170×38mm |
|
|
|
Weight |
≤1Kg |
|
|
Further detail pls click here for downloading the products specification:
1800MHz+N77 N78 A034 5G Signal Repeater.pdf
Selling Point
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.
Item Description
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.How do I determine the best place to set up my booster?
How to select the best location is described fully in The installation guide. However, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if there are any other questions.
|
