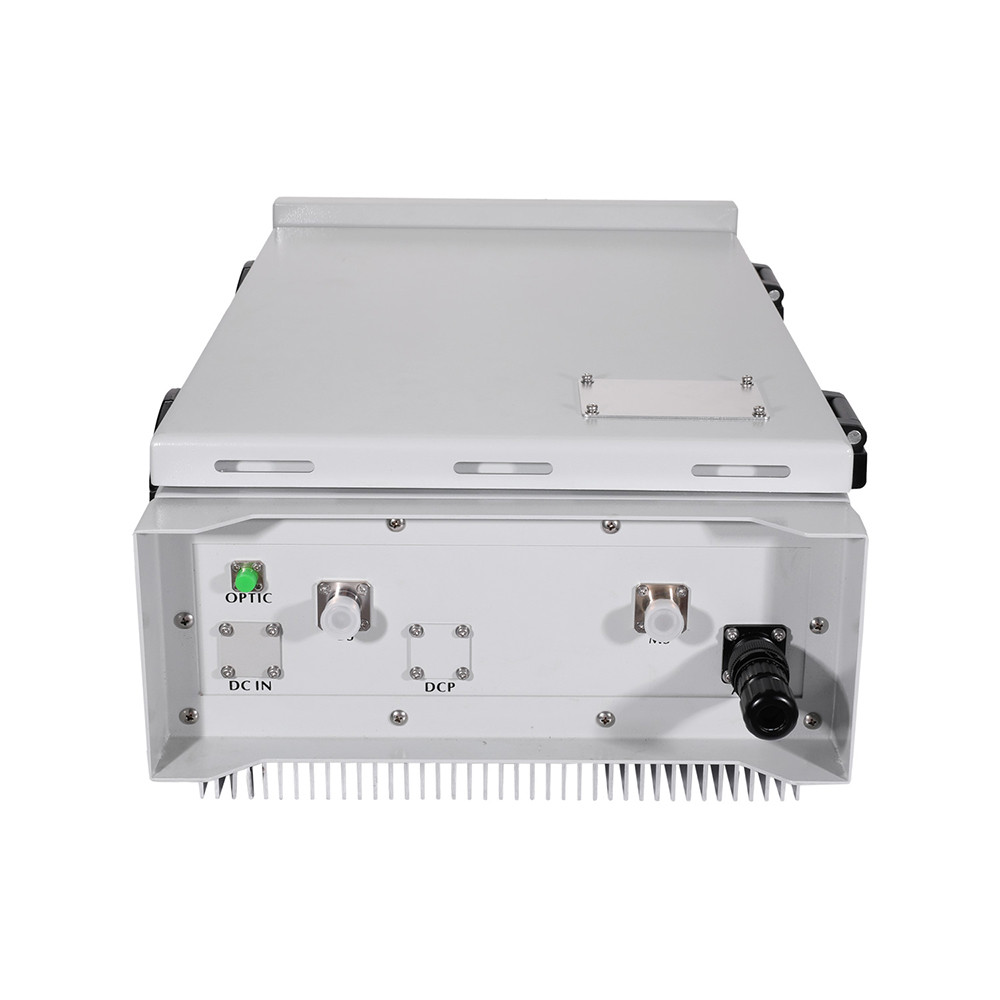

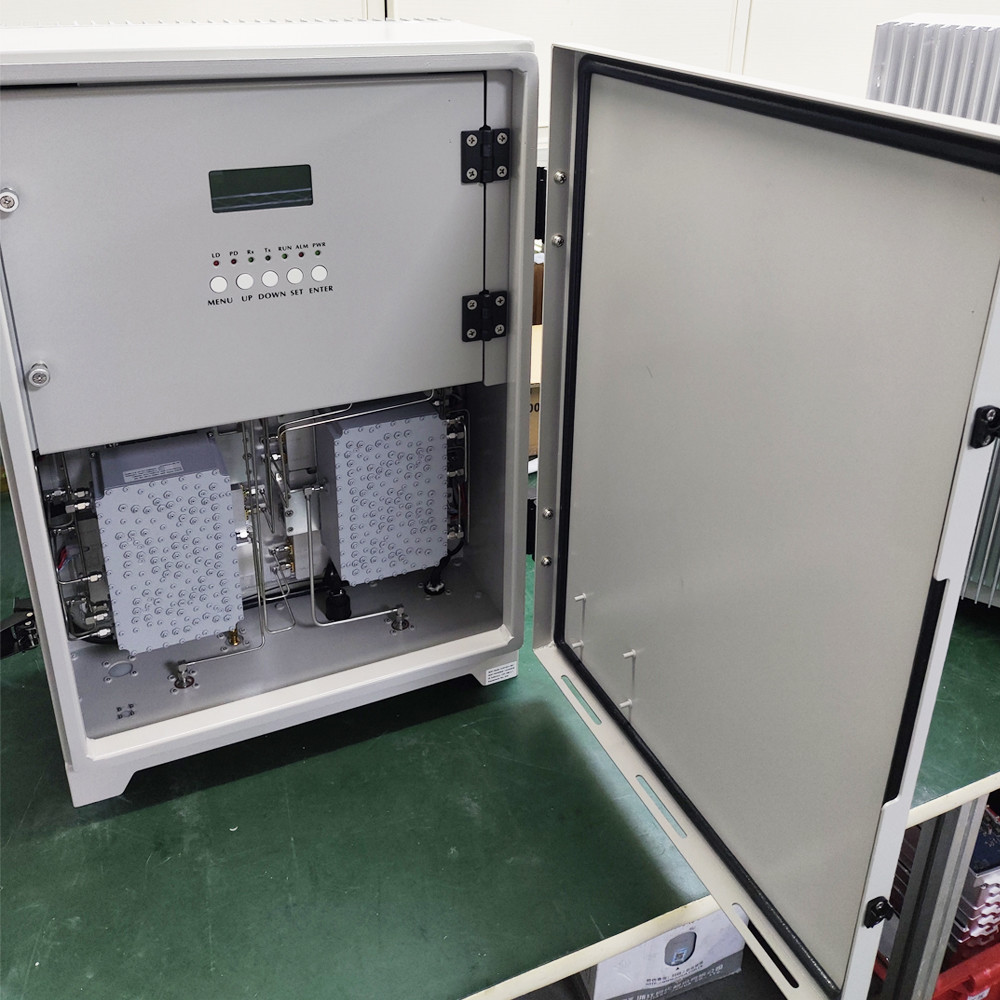

Digital Band Selective Customized Tri Band 1800/2100/2600MHz Booster Amplifier Repeater
| 1800MHz Frequency Range: | 1710-1735MHz/ 1805-1830MHz | 2100MHz Frequency Range: | 1920–1945/2110–2135MHz; 1945-1960/2135-2150MHz |
| 2600MHz Frequency Range: | 2520-2535MHz/2640-2655MHz | Bandwidth 1800MHz: | 25MHz |
| Bandwidth 2100MHz: | 25MHz & 15MHz | Bandwidth 2600MHz: | 15MHz |
| RF Carriers ARFCN Filtering: | Digital | coverage: | 6000m2 |
| High Light: | 2600MHz Booster Amplifier Repeater,Customized Tri band Booster Amplifier Repeater,1800/2100/2600MHz Booster Amplifier Repeater |
||
Digital Band Selective Customized Tri band 1800/2100/2600MHz Booster Amplifier Repeater
1. High output 10W, stable fast speed signal, perfect for large area or high building signal improving
(can reduce device quantity, and for easy adjustment and maintain )
2. Pretty easy installation
3. Die cast aluminum alloy out shell for efficient heat dissipation, waterproof, dust proof, IP40 level;
4. Upgrade intelligent WTR chip integrated circuit, reduce the attenuation, with higher load, faster speed
5. Free settings depends on environment, coverage 6000sqm
Technical Specifications:
|
SPECIFICATIONS
|
PARAMETERS
|
||
|
Frequency Range
|
1800MHz
|
1710-1735MHz, 1805-1830MHz
|
|
|
2100MHz
|
1920-1945MHz, 2110-2135MHz
|
||
| 2100MHz | 1945-1960MHz, 2135-2150MHz | ||
|
2600MHz
|
2520-2535MHz, 2640-2655MHz
|
||
|
Bandwidth
|
1800MHz
|
25MHz
|
|
|
2100MHz
|
25MHz&15MHz
|
||
|
2600MHz
|
15MHz
|
||
| RF Carriers ARFCN Filtering | Digital | ||
|
Gain
|
UL: 85±3 dB DL: 90±3dB
|
||
|
Output Power
|
UL: 25±2dBm DL: 40±2dBm
|
||
|
Automatic Gain Control
|
30dB/1dB
|
||
|
Minimum Input power
|
≥ -90dBm
|
||
| Gain Flatness / PB Ripple | ＜ 4dB | ||
| Automatic Level Control | ≥ 25dB | ||
|
EVM
|
≤8
|
||
|
VSWR
|
≤1.8
|
||
|
Noise Figure
|
≤8dB
|
||
|
Group Delay
|
≤10μs
|
||
|
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
|
Storage temperature range
|
-40°C to +85°C
|
||
|
Operating Temperature
|
-25°~+55°
|
||
|
Power Supply
|
195-265 VAC
|
||
|
Power consumption
|
≤100W
|
||
| Barometric pressure | 55 kPa -106 kPa | ||
|
Environment Conditions
|
IP65
|
||
|
Relative humidity
|
5% - 95%
|
||
|
Weight
|
≤20kg
|
||
|
Size
|
596 x 400 x 203.5 mm
|
||
Product Description
1.
Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2.
Q: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are the factory, with good trading service. We provide OEM/OEM service.
3.
Q: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of
warranty.
4.
Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
5.
Q: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
-
