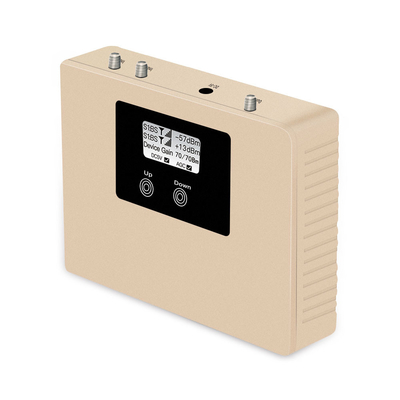

70dB Dual Band Repeater 850 1900MHz , CDMA PCS 2G 3G 4G Mobile Signal Booster

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AS-C03-850/1900

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+70---85+kit

Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)

Delivery Time: 1-3 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

Dual Band Repeater 70dB

,

ROHS Dual Band Repeater

,

CDMA PCS Mobile Signal Booster

850MHz Frequency Range:
824-849MHz / 869-894MHz
1900MHz Frequency Range:
1850-1910MHz / 1930-1990MHz
Indoor Antenna:
Ceiling Antenna * 2
Outdoor Antenna:
Log Periodic Antenna
Color:
Black And Gold ,Customized
Weight:
4kg
850MHz Frequency Range:
824-849MHz / 869-894MHz
1900MHz Frequency Range:
1850-1910MHz / 1930-1990MHz
Indoor Antenna:
Ceiling Antenna * 2
Outdoor Antenna:
Log Periodic Antenna
Color:
Black And Gold ,Customized
Weight:
4kg
70dB Dual Band Repeater 850 1900MHz , CDMA PCS 2G 3G 4G Mobile Signal Booster



70dB Dual Band Repeater 850 1900MHz CDMA PCS 2G 3G 4G Mobile Signal Booster





How it Works


The signal repeater kit works by having the Log-periodic outside antenna mounted on a pole at or above the roofline of the building that requires a better signal, in a location where the antenna can pick up the strongest existing outside cell signal. The signal is received by the Log-periodic outside antenna and is sent over a cable into the building, where it is received by the signal amplifier. The amplifier boosts the cellular signal, and then sends it over the cable to the inside ceiling antenna, which broadcasts the improved signal to the area where it's located.
The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1850-1910MHz

Downlink

869-894MHz, 1930-1990MHz

Frequency Bandwidth

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1900MHz C03 Mobile Signal Repeater.pdf



Product Description





2G 3G 4G Signal Booster (B5 850MHz + B2 1900MHz)



Gain : 70db


Max power : 20dbm



ALC functon



The ALC function can prevent excessive signal output and cause interference.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 2LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 3LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 4LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 5LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 6LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 7





Installation:

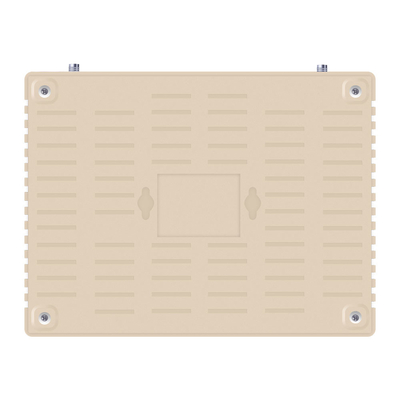

The booster is fixed onto the wall through expansion bolts.

A. Drill holes on the targeted place and install expansion bolts.

B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.

C. Place the booster on and fasten it.

D. Connect cables and power cables to the booster respectively.

E. After installing the booster as described above, power on the booster to check the operation status.





Connection:



A. BTS Port: donor antenna cable is connected with Outdoor Port;

B. MS Port: service whip antenna is connected with Indoor Port;

C. DC IN: connected with Power adaptor.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 11LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 12



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 13

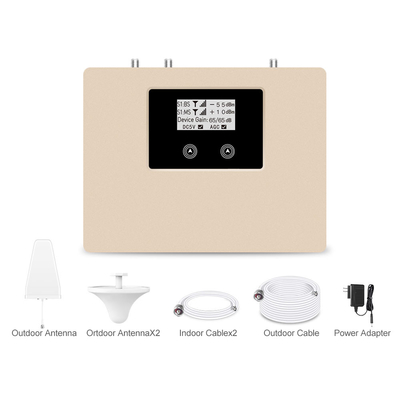

Packaging Including:



1. Dual Band Booster

2. Power adapter

3. Outdoor Log-periodic antenna

4. Indoor Ceiling antenna * 2

5. 5 meters cable * 2

6. 20 meters cable





70dB Dual Band Repeater 850 1900MHz , CDMA PCS 2G 3G 4G Mobile Signal Booster 9





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 15

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 16LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 17
