Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-C3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
824-849MHz，869-894MHz |
Working Gain: |
68--70dB |
Working Output Power: |
17--20dBm |
Connector Type:: |
SMA/Female |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G Or 3G Calling, Voice |
Warranty: |
3 Years |
Products Type: |
Signal Booster |
Frequency Range: |
824-849MHz，869-894MHz |
Working Gain: |
68--70dB |
Working Output Power: |
17--20dBm |
Connector Type:: |
SMA/Female |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G Or 3G Calling, Voice |
Warranty: |
3 Years |
Products Type: |
Signal Booster |

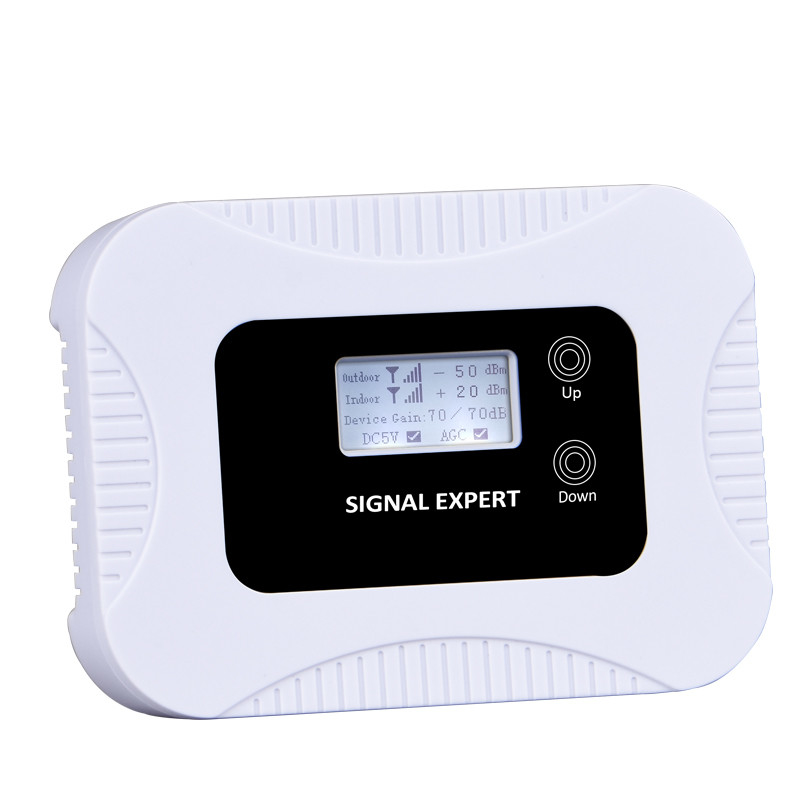

CDMA 850MHz GSM Signal Booster Support 2G 3G Calling Voice Network
CDMA 850MHz 2G 3G GSM Signal Booster Cellular Amplifier
Description:
When the indoor antenna receives the signal from your cell phone or data card, the booster amplifies the signal and transmits it through the cable to outdoor antenna and then to the cell tower. And the better the outside signal, the more coverage the indoor antenna can create.
The miniature repeater with its unique compact, light weight, easy installation, small interference on the network, the reliability and stability of the unique advan-tages, has been widely, especially suitable for the modern city building area indoor coverage. The miniature repeater is mainly used in office buildings, shop-ping malls, large underground parking field, exhibition center, workshop. Signal using a small power cover-age within building will be more uniform, reduce the cost of inputs.
Product Feature:
1. Model No: AS-C .
2. Improve 2G Voice and 3G Internet .

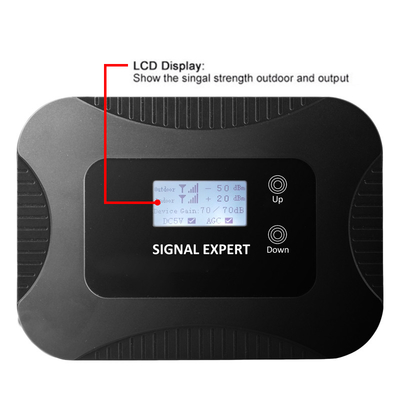

3. Smart LCD Display. Show clear outdoor signal strength, work signal strength .
4.Coverage: cover about 300sqm without any barrier .
5.Full intelligent:Sleeping Mode,AGC&ALC Function. Can control gain automatically.Avoid base station interference .
6.CDMA 850MHz. [Band 5] (Frequency Band :Uplink:824-849MHz, Downlink:869-894MHz) .
7.This model can support at least 20 cell phone in the same time .
8. CE & RoHS certificate. 3 years Warranty .
9. Connector Type: SMA-female connector .
10. Easy to install with LCD screen intelligent guide .
Product Detail:
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-C3 |
|||
|
Frenquecy Range |
UplinK:824-849MHz Downlink:869-894MHz |
|||
|
Working System |
CDMA 850MHz |
|||
|
Gain |
70dB |
|||
|
Output Power |
17-20dBm |
|||
|
Bandwidth |
25MHz |
|||
|
Ripple in Band |
≤ 4dB |
|||
|
Noise Figure @ Max.Gain |
≤ 6dB |
|||
|
V.S.W.R |
≤ 2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC:90~265V; 50 / 60Hz DC:9V 3A |
|||
|
Power Comsumption |
< 20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA Female |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight for Package |
1.85KG |
|||
|
Installation Type |
Wall |
|||
|
Environment Conditions |
IP40 |
|||
|
Humidity |
< 90% |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
CDMA 850MHz B07 Signal Repeater.pdf
Product Pictures
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Mid East(15.00%),Western Europe(15.00%),Northern Europe(15.00%),Southern Europe(15.00%),Eastern Europe(10.00%),North America(7.00%),Africa(5.00%),Eastern Asia(5.00%),Central America(5.00%),South America(2.00%),Southeast Asia(2.00%),Oceania(2.00%),South Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Signal Booster,Repeater,Communications Antenna,Accessories,Coaxial Cable
4. why should you buy from us not from other suppliers?
Shenzhen ATNJ Communication Technology Co.,LTD ,which is a fast growing modern manufacture of mobile signal booster, repeater. we are independent research and development.we have strong production line and best service sales team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian,Korean.
