Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-EGSM
Document: Single band EGSM 900MHz RF ...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
880-915MHz/925-960MHz |
Gain: |
70dBi |
Output Power: |
17-20dBm |
Color: |
White,Blue,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Size: |
54x19x16cm |
Products Type: |
Cellular Signal Booster, Network Repeater Signal Expert Atnj |
Frequency Range: |
880-915MHz/925-960MHz |
Gain: |
70dBi |
Output Power: |
17-20dBm |
Color: |
White,Blue,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
SMA/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Size: |
54x19x16cm |
Products Type: |
Cellular Signal Booster, Network Repeater Signal Expert Atnj |

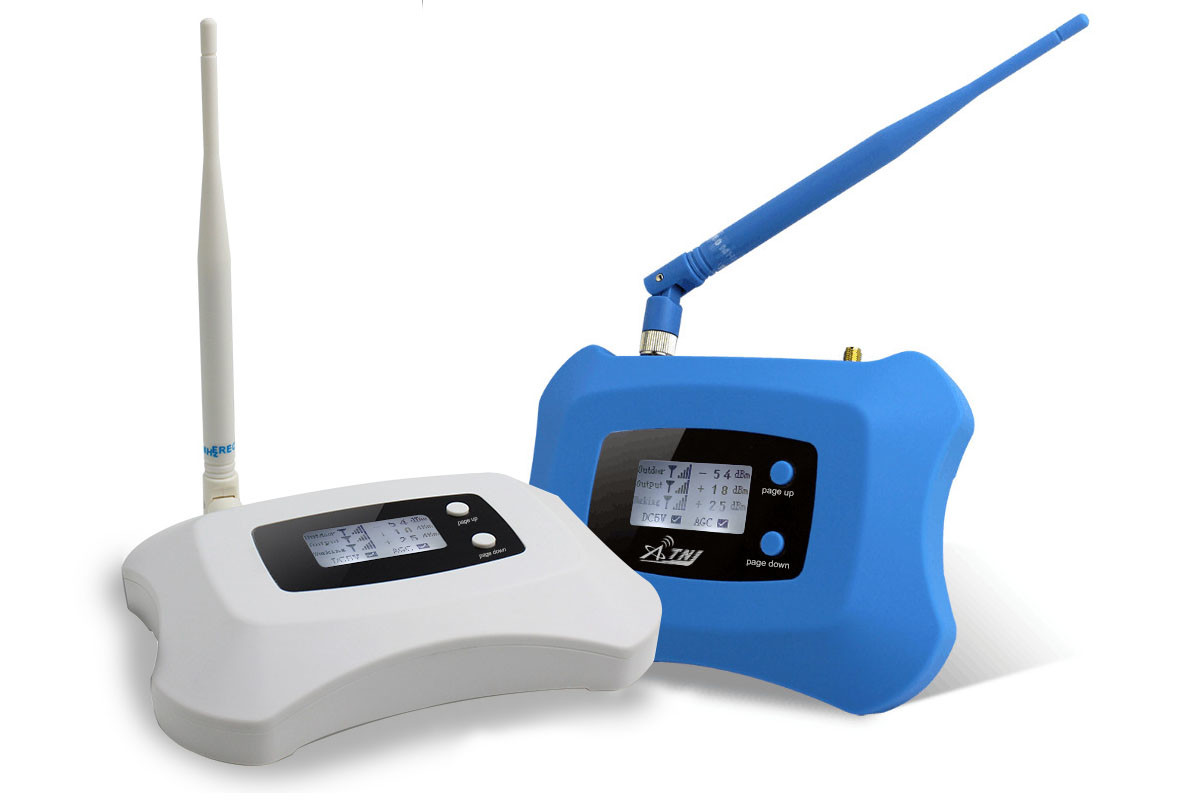

High Gain70dBi Band8 EGSM900MHz 2G Mobile cellular signal amplifier
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
880-915MHz |
|
Downlink |
925-960MHz |
|
|
Frequency Bandwidth |
35MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
Single band EGSM 900MHz RF Repeater.pdf
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Note : Please be sure the place where you are going to install is EGSM 2G And make sure you can get at least 2 bars 2G "E" signal of outdoor before you buy, otherwise this product can’t help you. It needs outdoor good signal to improve your indoor signal.
Product Description
We will send the correct plug adapter which is suitable for you according with the shipping address.

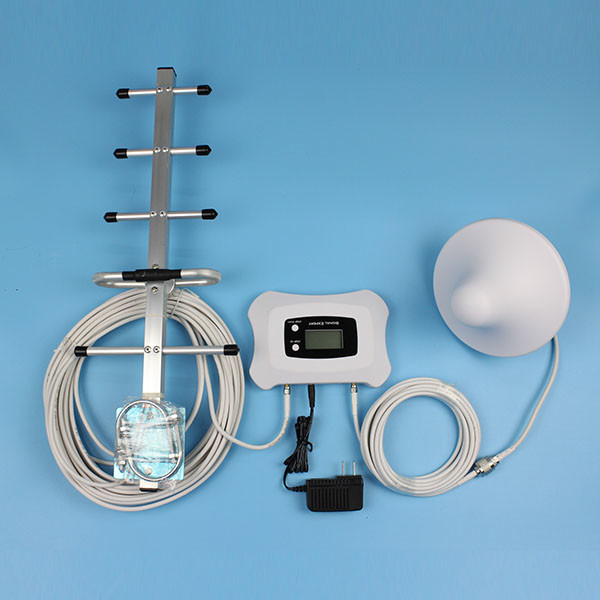

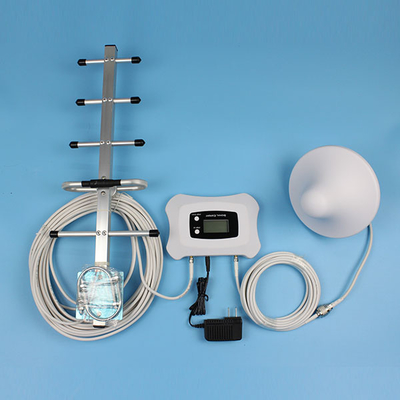

Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.
[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
1. What're the main products of ATNJ?
ATNJ specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
2. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
3. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
4. What is your warranty time?
We promise 3 years warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW .
6. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Please feel free to contact us if any other questions.
