Product Details:
|
| E900MHz Frequency Range: | 890-915MHz / 935-960MHz | 2100MHz Frequency Range: | 1920-1980MHz /2110-2170MHz |
|---|---|---|---|
| Indoor Antenna: | Ceiling Antenna * 2 | Outdoor Antenna: | Log Periodic Antenna |
| Color: | Black And Gold ,Customized | Weight: | 4kg |
| Power: | 17-20dBm | Products Type: | Network Booster 4g Mobile Signal Repeater, Repeater |
| High Light: | CCC Mobile Signal Booster,2100MHz Mobile Signal Booster,70dB Amplifier 3G Signal Booster |
||
GSM900 2100MHz Mobile Signal Booster Dual Band 2G 3G 4G Repeater 70dB Amplifier
General
The dual band 900/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1920-1980MHz |
|
Downlink |
935-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
25MHz & 60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+2100MHz C03 Mobile Signal Repeater.pdf
Product Description
Selling Point

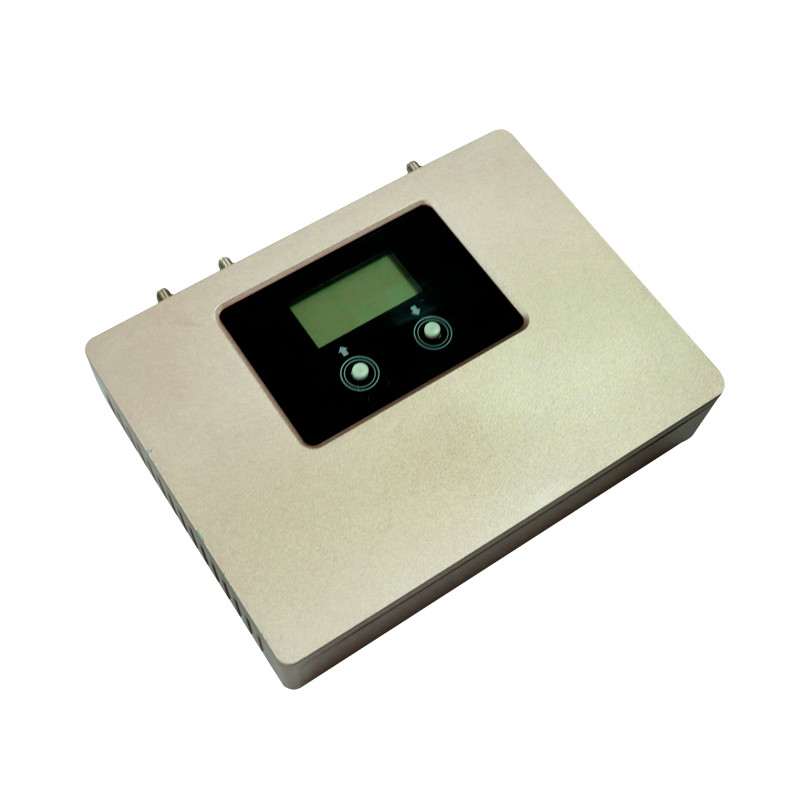

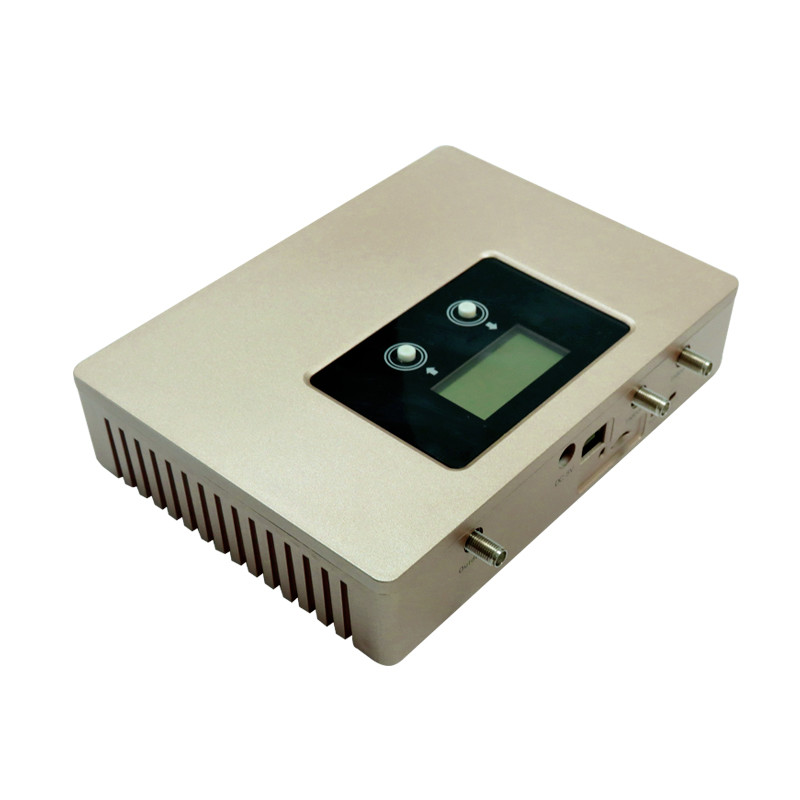

LCD Display:
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep Mode:
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic Adjustment Of Operation:
GSM+4G LTE amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Compact Size And High-tech Design:
The signal amplifier has a small size, light weight, advanced design and intelligent LCD display. It fits perfectly into any interior.
Features:
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.
4. Support any cellular devices (voice & data & video)
5. Wideband signal booster, or customize selective band booster.
6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc
Advantages:
1. Smart Function, Intelligent mode setting smart function called which can be activated via the front panel. users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
3. ODM/OEM service is available.
Packaging Including:
1. Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Ceiling antenna * 2
5. 5 meters cable * 2
6. 20 meters cable
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1.
Q: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
2.
Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.
Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
4.
Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
5.
Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
