Customized 5W Gain Multi Band Repeater Wide Range Bandwidth
| 850MHz Frequency Range: | 824-849MHz / 869-894MHz | 1800MHz Frequency Range: | 1710-1785MHz / 1805-1880MHz |
| 2100MHz Frequency Range: | 1920-1980MHz / 2110-2170MHz | Material: | Zinc Alloy ,Plastic |
| Booster Bandwidth: | Wide Range | Support network: | 2G, 3G, 4G, Voice |
| Booster Warranty: | 36 Months | Products Type: | Cellular Signal Booster, Amplificadores De Seal De Celular De 5w |
| High Light: | 90dB Multi Band Repeater,5W Multi Band Repeater,90dB Wide Range Wifi Extender |
||
Customized 5W 90dB Gain Multi Band Repeater Wide Range Bandwidth
2G 3G 4G 90dB Gain 850/1800/2100MHz Multi Band Repeater 5 Watt Customized Signal Amplifier
Product Detail:
Model No :AT-MS-850/1800/2100
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 5) 850MHz -- Uplink frequency : 824-849MHz/Downlink frequency : 869-894MHz
(Band 3) 1800MHz -- Uplink frequency : 1710-1785MHz/Downlink frequency : 1805-1880MHz
(Band 1) 2100MHz -- Uplink frequency : 1920-1980MHz/Downlink frequency : 2110-2170MHz
Network support : 2G 3G 4G Voice
Gain : 80dB
Output power : 5watt
Power Supply : AC110V～220V;DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-850/1800/2100 |
|||
|
Frenquecy Range 1 |
UplinK: 824-849MHz Downlink: 869-894MHz |
|||
|
Frenquecy Range 2 |
UplinK: 1710-1785MHz Downlink: 1805-1880MHz |
|||
|
Frenquecy Range 3 |
UplinK: 1920-1980MHz Downlink: 2110-2170MHz |
|||
|
Working System |
Band5 850MHz; Band3 1800MHz; Band1 2100MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 850+1800+2100 Tri Band Repeater.pdf
Selling Point
Signal booster could be used for both phone calls and the latest LTE network at the same time. There is no limit to the number of mobile devices that can benefit from the improved internet.
Not only improves mobile signals, but also reduces excessive radiation from mobile devices in areas with weak GSM/4G signal.
♦ Outdoor Antenna:
Receive outside phone signal from Base Station
♦ Signal Booster:
Strengthen outside phone signal to inside use
♦ Indoor Antenna:
Transmiss the phone signal strengthened inside home
♦ Jump Cable:
For connecting the antennas to the signal booster
Free Frequency Combination:
Band 800: Uplink:824 - 849 MHz Downlink: 869 - 894 MHz (B20 800 available )
Band 900: Uplink:880- 915 MHz Downlink:925- 960 MHz
Band 1800: Uplink:1710-1785 MHz Downlink:1805-1880 MHz
Band 1900: Uplink:1850-1910 MHz Downlink:1930-1990 MHz
Band 2100: Uplink:1920 - 1980 MHz Downlink:2110- 2170 MHz
Band 2300: Uplink:2305 - 2315MHz Downlink:2350 - 2360 MHz
Band 2600: Uplink: 2500-2570 MHz Downlink:2620-2690 MHz
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power:5W/10W/20W
Power Supply: AC adapter
Size: 308*219* 135mm
Weight: 7.0kg

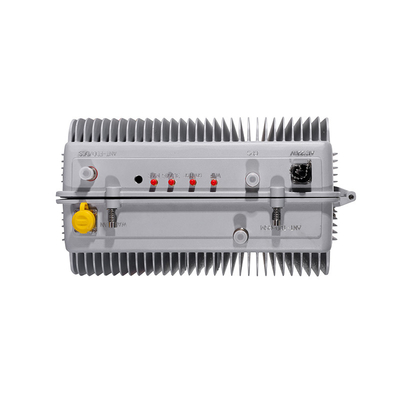

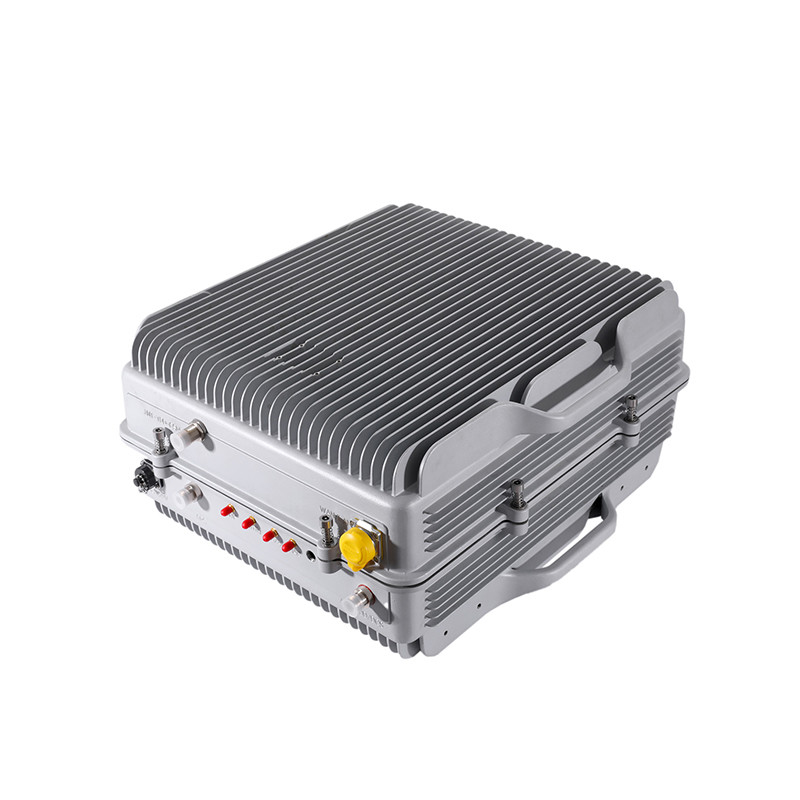

Product Pictures
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS certification,etc.
Q2: Can you give me a discount?
A: Please discuss with our sales.
Q3: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q4: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q5: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
-
