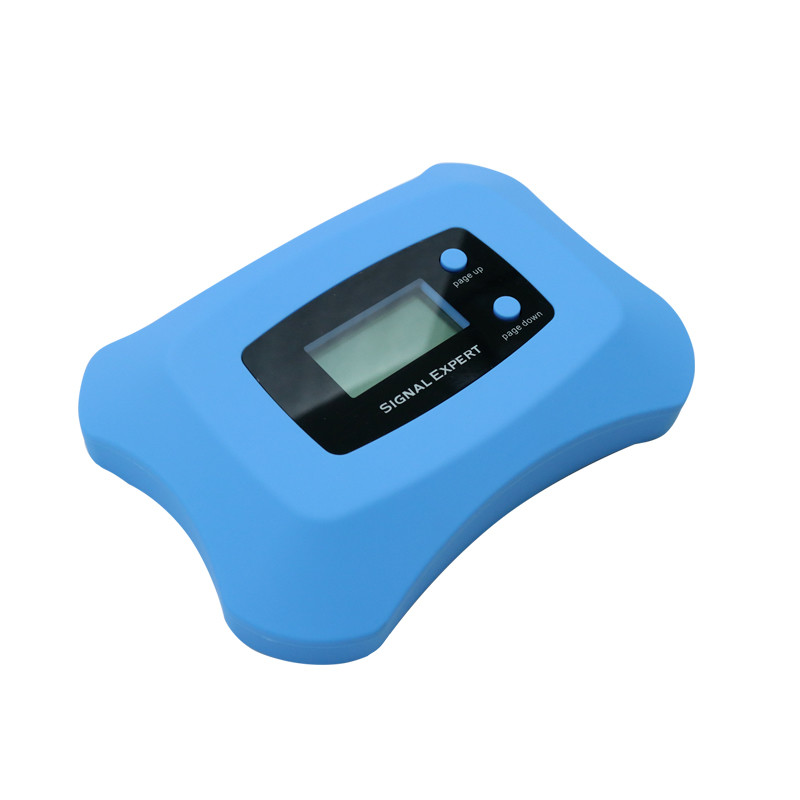

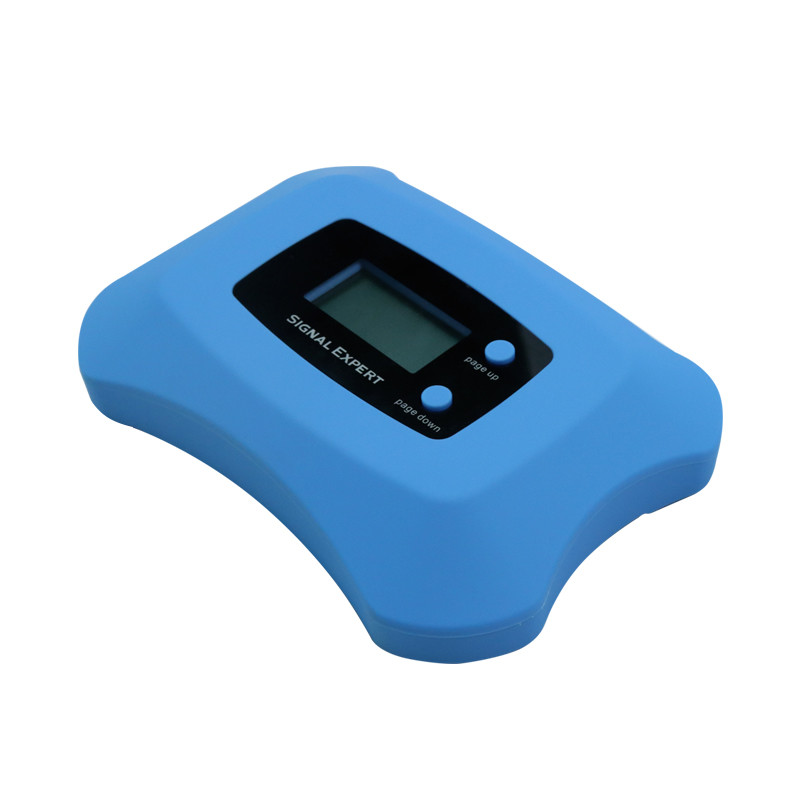

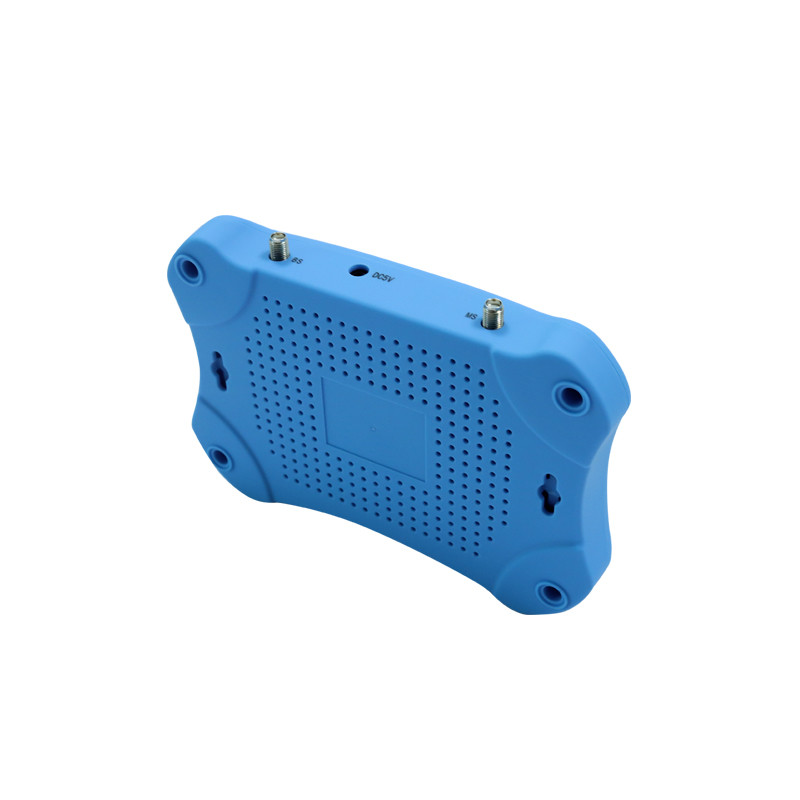

ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AS-L700

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+45---58+kit

Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

700MHz 4G Phone Signal Booster

,

17dBm 4G Phone Signal Booster

,

20dBm 4G Indoor Signal Booster

Frequency Range:
Uplink:703-748MHz,Downlink:758-803MHz
Gain:
70dB
Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female Connector
Trademark:
ATNJ
Ertification::
ISO, RoHS, CE, CCC
Products Type:
700mhz Repeaters Kingtone, 700mhz Repeaters
Frequency Range:
Uplink:703-748MHz,Downlink:758-803MHz
Gain:
70dB
Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female Connector
Trademark:
ATNJ
Ertification::
ISO, RoHS, CE, CCC
Products Type:
700mhz Repeaters Kingtone, 700mhz Repeaters
ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm

ATNJ LTE 700MHz 4G Phone Signal Booster Output Power 17dBm 20dBm



Cell Phone Signal Booster Repeater Signal Enhancer Mobile Amplifier 4G LTE700MHz



A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

703-748MHz

Downlink

758-803MHz

Frequency Bandwidth

45MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA (Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

HS Code

8543709200

Further detail pls click here for downloading the products specification:

Single band LTE 700MHz RF Repeater.pdf



Selling Point

1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when the device was damaged.



Item Description

ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 0ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 1ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 2ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 3

ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 4ATNJ LTE 700MHz 4G Phone Signal Booster Output power 17dBm 20dBm 5ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater



We are manufacturer, and have our own factory.

FAQ:


1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if there are any other questions.
