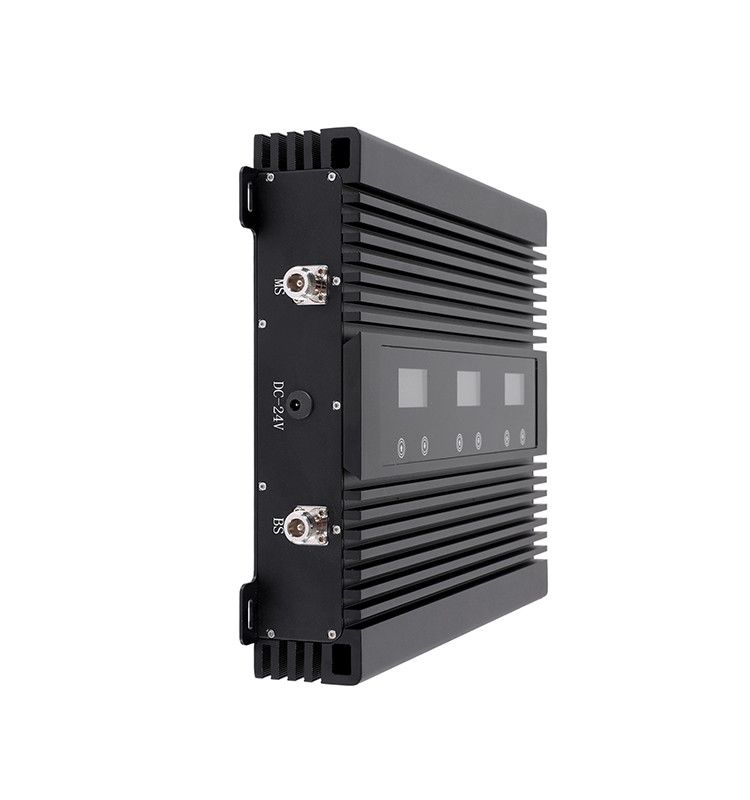

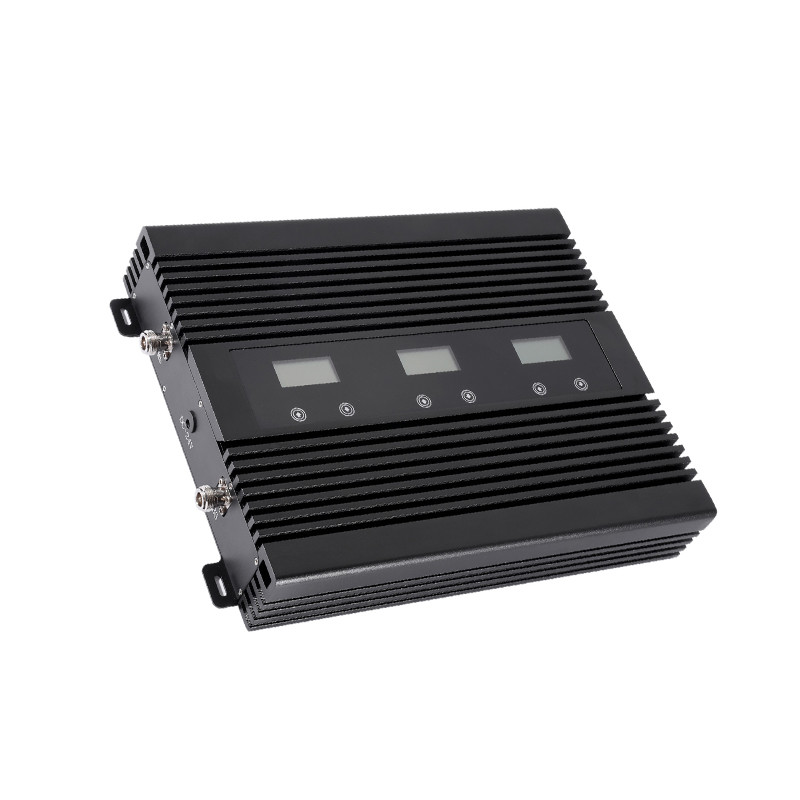

Name: 900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AS-900/1800/2100/H
Price: 322.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

900MHz Frequency Range: 890-915MHz / 935-960MHz

1800MHz Frequency Range: 1710-1785MHz / 1805-1880MHz

2100MHz Frequency Range: 1920-1980MHz / 2110-2170MHz

Products Name: GSM Repeater Booster

Color: Black

Packing Weight: 10kg

Packing Size: 48x46x18cm

Products Type: Repetidor De Seal Celular Para 3g 4g En Zona Rural, Original Network Booster

Highlight:

2100MHz Tri Band Signal Booster

900MHz Three Mobile Signal Booster

1800MHz Mobile Phone Signal Repeater

Basic Infomation

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AS-900/1800/2100/H

Document: 900+1800+2100 A013 Signal R...er.pdf

Payment & Shipping Terms

Packaging Details: Standard neutral packing,48x46x18cm(1 kit),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Gallery

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone

Product Description

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone

Tri Band Repeater 900 / 1800 / 2100MHz Mobile Booster 2G 3G 4G Cellular Signal Amplifier

Selling Point

1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.

Further detail pls click here for downloading the products specification:

900+1800+2100 A013 Signal Repeater.pdf

Technical Specifications:

Specifications		Parameters
Frequency Range (Customers to Choose)	Uplink	890-915MHz, 1710-1785MHz, 1920-1980MHz
	Downlink	935-960MHz, 1805-1880MHz, 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth)		25MHz, 75MHz, 60MHz
Gain		80dB
Automatic gain control (Step Attenuation)		31dB @ 1dB/ Step
Auto Gain Control		20dB Min.
Output Power(Customers to Choose)		27dBm
Spurious Emission		≤ -15dBm/30kHz
		9kHz~1GHz: ≤ -36dBm/30kHz
		1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR		≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple		≤ 5dB
VSWR		<=2
I/O Impedance		50 Ω
Noise Figure		≤ 5dB
System Delay		≤ 5μs
RF Connector(Customers to Choose)		N -Type(Female)
Operating Temperature		Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply		AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight		≤8 kg(Net)
Alarm Monitoring System		Alarm for uplink self-oscillation
Indication LED		Power supply

Model No : AS-900/1800/2100/H

With ALC AGC Function

Can control gain automatically. Avoid base station interference

Network support : GSM 2G + DCS 2/4G + WCDMA 3/4G

Gain : 80dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N - female connector

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 0

What is Included?

[1] 900+1800+2100 mhz Tri Band Repeater Base Unit

[2] AC Power Cord

[3] Outdoor Log-periodic Antenna

[4] Indoor Celling Antenna

[5] 20 +5 Meters White Coax. Cable

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 8

The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 10

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 11

How it works?

1. Received a good outdoor signal from signal tower.

2. Cable transmits good signal to repeater.

3. Signal Booster enhance the received signal.

4. Improve indoor's cellphone signal.

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 13

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 14

900MHz 1800MHz 2100MHz Tri Band Signal Booster 2G 3G 4G Mobile Phone 15

FAQ

Q1: Do you have CE or any other certification?
A: Yes,we CE, ISO, ROHS and CCC certification,etc.

Q2: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.

Q3: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support

Q4: What's your device lifespan?
A: Normally our device can be used 5-10 years.

Q5: How many square meters can be covered?
A: For different models, the covered square meters are different.

Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.

Q7: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
