| Brand Name: | ATNJ |
| Model Number: | JS-CDW |
| MOQ: | 5Pcs |
| Price: | USD+315---330+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

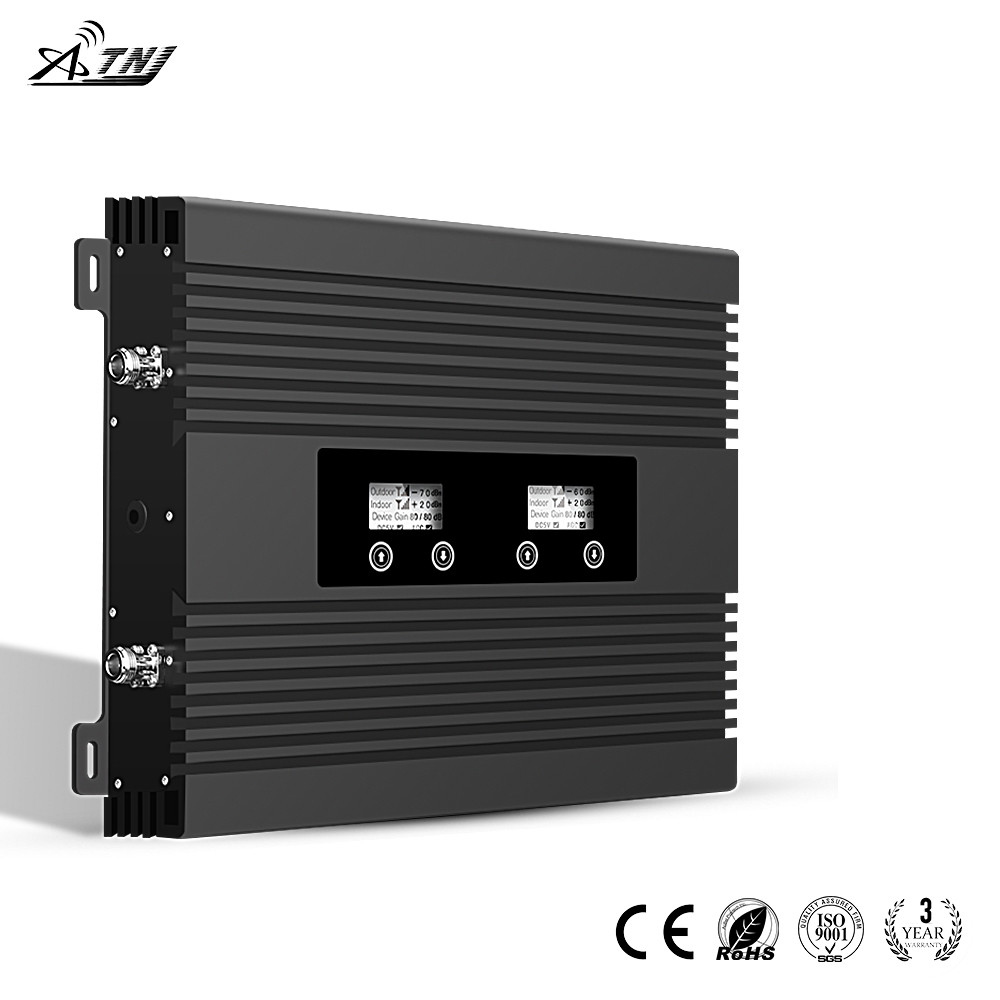

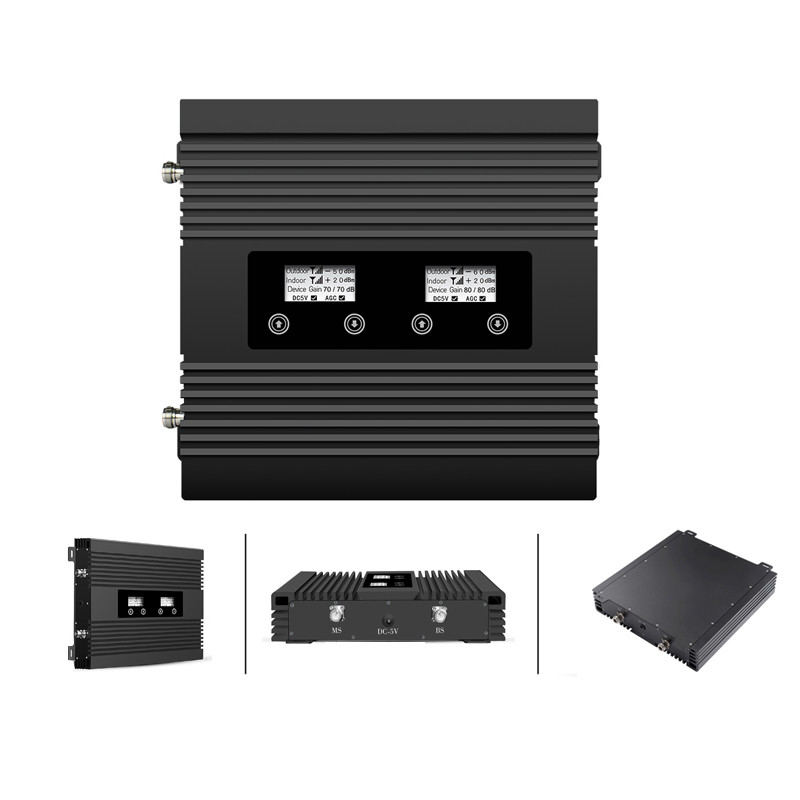

2G 3G 4G Tri band Repeater 850/1800/2100MHz cellular signal repeater amplifier
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification:
|
Frequency |
Uplink |
Downlink |
|||
|
CDMA 850MHz |
824-849MHz |
869-894MHz |
|||
|
DCS 2G/4G 1800MHz |
1710-1785MHz |
1805-1880MHz |
|||
|
WCDMA 2100MHz |
1920-1980MHz |
2110-2170MHz |
|||
|
Max. Gain |
68dB±2dB |
68dB±2dB |
|||
|
Max. Output Power |
17dB±2dB |
17dB±2dB |
|||
|
Bandwidth |
25MHz&75MHz&60MHz |
||||
|
Ripple in Band |
≤ 8dB |
||||
|
Noise Figure |
≤ 6dB |
||||
|
VSWR |
≤ 2.0 |
||||
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|||
|
1~12.75GHz |
≤ -30dBm |
||||
|
Time Delay |
≤ 1.5 μs |
||||
|
MTBF |
> 50000 hours |
||||
|
Impedance |
50 ohm |
||||
|
Power Supply |
AC 90-240V,DC 5V/6A |
||||
|
Power LCD |
Power indicator |
||||
|
Alarm LCD |
Guide |
Done |
|||
|
Detection |
Done |
||||
|
Mechanical Specification |
|||||
|
RF Connector |
N-F |
||||
|
Cooling |
Heatsink Convection cooling |
||||
|
Humidity |
< 90% |
||||
|
Operating Temperature |
-10°C ~ +55°C |
||||
|
Environment Conditions |
IP40 |
||||
|
Installation Type |
Wall Or Desk Installation |
||||
|
Size |
323x269x58mm |
||||
|
Gross Weight |
2.5kg |
||||
Further detail pls click here for downloading the products specification:
850+1800+2100 A009 Repeater.docx.pdf
|
