Black 2G 3G 4G Tri Band Network Booster Device Output Power 17dBm

Basic Properties
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-CDW
Trading Properties
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Payment Terms: T/T,Western Union,Paypal,Bank transfering
Supply Ability: 1000+unit+per day.
Tags

2100MHz Mobile Signal Repeater

850MHz Mobile Signal Repeater

70dB Mobile Signal Repeater
Specifications
850MHz Frequency Range: CDMA: 824-849MHz; 869-894MHz; 1800MHz Frequency Range: DCS: 1710-1785MHz; 1805-1880MHz;
2100MHz Frequency Range: UMTS: 1920-1980MHz; 2110-2170MHz; Color For Choice: Black
Device RF Connect Type: N/Female Power Supply: (AC 220V/ DC5V/2A Power Adapter)
Products name: Tri Band Signal Booster
High Light:

2G 3G 4G Tri Band Network Booster

,

17dBm Tri Band Network Booster

,

17dBm Mobile Triband Repeater
Product Description
Black 2G 3G 4G Tri Band Network Booster Device Output Power 17dBm
Product Overview

This 2G 3G 4G Tri-band Repeater (850/1800/2100MHz) provides an affordable solution to solve indoor signal coverage problems caused by signal fading and attenuation due to architectural obstacles. Its easy installation and maintenance help carriers achieve fast returns on investment.

How It Works

The repeater functions as a relay between the BTS and mobile devices. It captures the strongest signal from the BTS via the donor antenna, linearly amplifies the signal, and retransmits it via the indoor signal distribution system to weak or blind coverage areas. Mobile signals are also amplified and retransmitted to the BTS in the opposite direction.

Technical Specifications
Frequency Band Uplink Downlink
CDMA 850MHz 824-849MHz 869-894MHz
DCS 2G/4G 1800MHz 1710-1785MHz 1805-1880MHz
WCDMA 2100MHz 1920-1980MHz 2110-2170MHz
  • Maximum Gain: 68dB±2dB
  • Maximum Output Power: 17dB±2dB
  • Bandwidth: 25MHz & 75MHz & 60MHz
  • Ripple in Band: ≤ 8dB
  • Noise Figure: ≤ 6dB
  • VSWR: ≤ 2.0
  • Spurious Emission: 9KHz~1GHz ≤ -36dBm, 1~12.75GHz ≤ -30dBm
  • Time Delay: ≤ 1.5 μs
  • MTBF: > 50,000 hours
  • Impedance: 50 ohm
  • Power Supply: AC 90-240V, DC 5V/6A
  • Power LCD: Power indicator
  • Alarm LCD: Guide, Done, Detection
  • RF Connector: N-F
  • Cooling: Heatsink convection cooling
  • Humidity: < 90%
  • Operating Temperature: -10°C ~ +55°C
  • Environment Conditions: IP40
  • Installation Type: Wall or desk installation
  • Size: 323x269x58mm
  • Gross Weight: 2.5kg
Download Product Specification PDF
Product Images

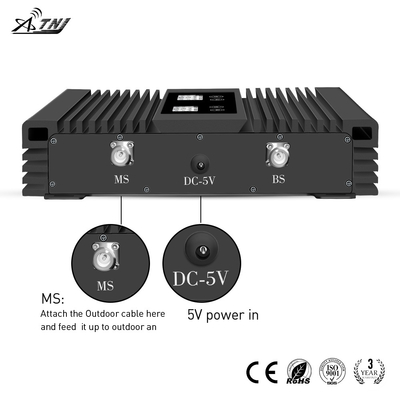

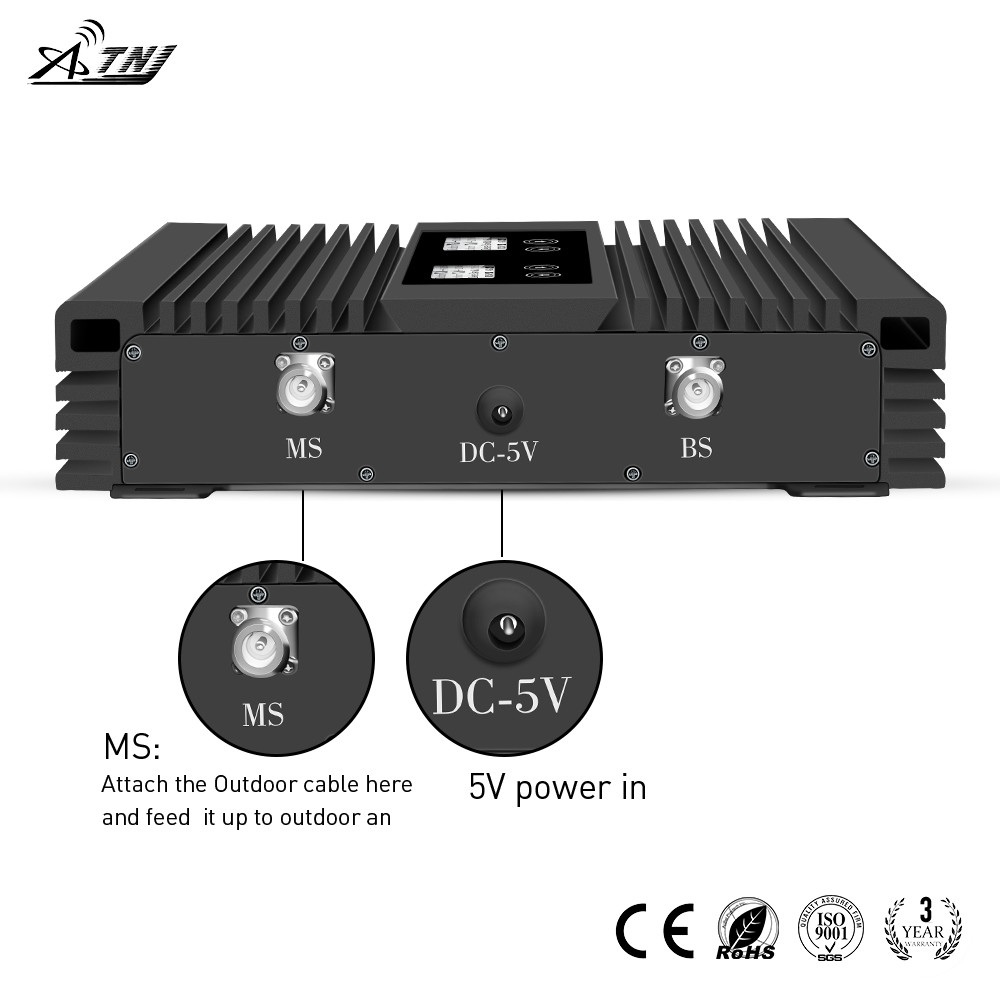

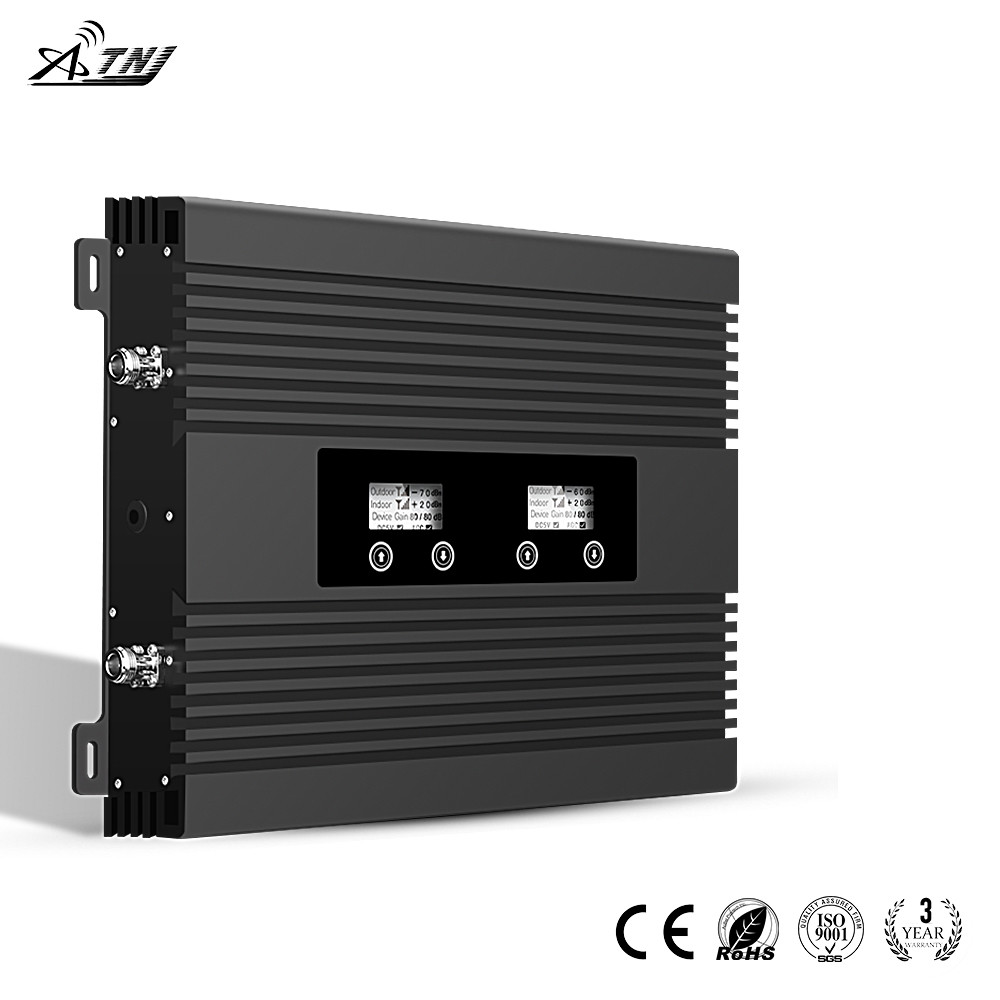

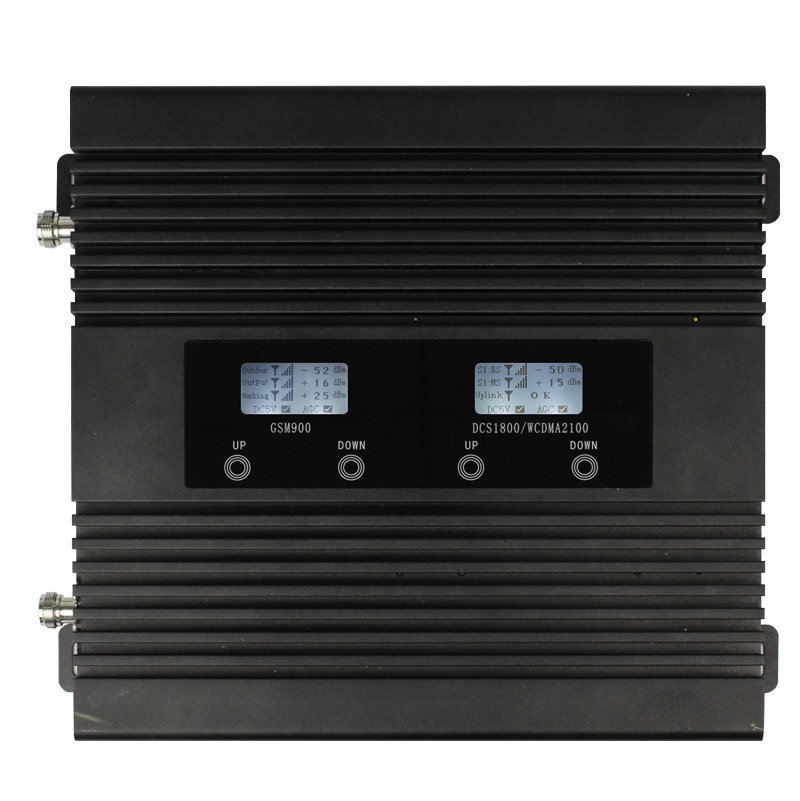

ATNJ 2G 3G 4G booster tri band network repeater front view ATNJ 2G 3G 4G booster tri band network repeater side view ATNJ 2G 3G 4G booster tri band network repeater display close-up ATNJ 2G 3G 4G booster tri band network repeater rear panel ATNJ 2G 3G 4G booster tri band network repeater angled view ATNJ 2G 3G 4G booster tri band network repeater connectivity ports ATNJ 2G 3G 4G booster tri band network repeater installation example ATNJ 2G 3G 4G booster tri band network repeater technical details ATNJ 2G 3G 4G booster tri band network repeater packaging ATNJ 2G 3G 4G booster tri band network repeater complete setup
Frequently Asked Questions
Do you have CE or any other certification?
Yes, we have CE, ROHS, and CCC certification, etc.
Can you give me a discount?
Please discuss with our sales team.
How about gain and output power of your device?
Different models have different gain and output power specifications. For more details, please contact us.
How long is warranty period?
The warranty is 36 months. And we offer 7*24 technical support.
How many square meters can be covered?
Coverage area varies by model. Different models cover different square meters.
