Product Details:
|
| 850MHz Frequency Range: | 824-849MHz / 869-894MHz | 1700MHz Frequency Range: | 1710-1755MHz / 2110-2155MHz |
|---|---|---|---|
| 1900MHz Frequency Range: | 1850-1910MHz / 1920-1990MHz | Material: | Zinc Alloy ,Plastic |
| Support Network: | 2G, 3G, 4G, Voice | Products Type: | Mobile Tri Band Repeater, 4g Network Booster |
| High Light: | 850MHz 2G 3G 4G Mobile Signal Booster,1700MHz Mobile Signal Booster,1900MHz Triple Band Repeater |
||

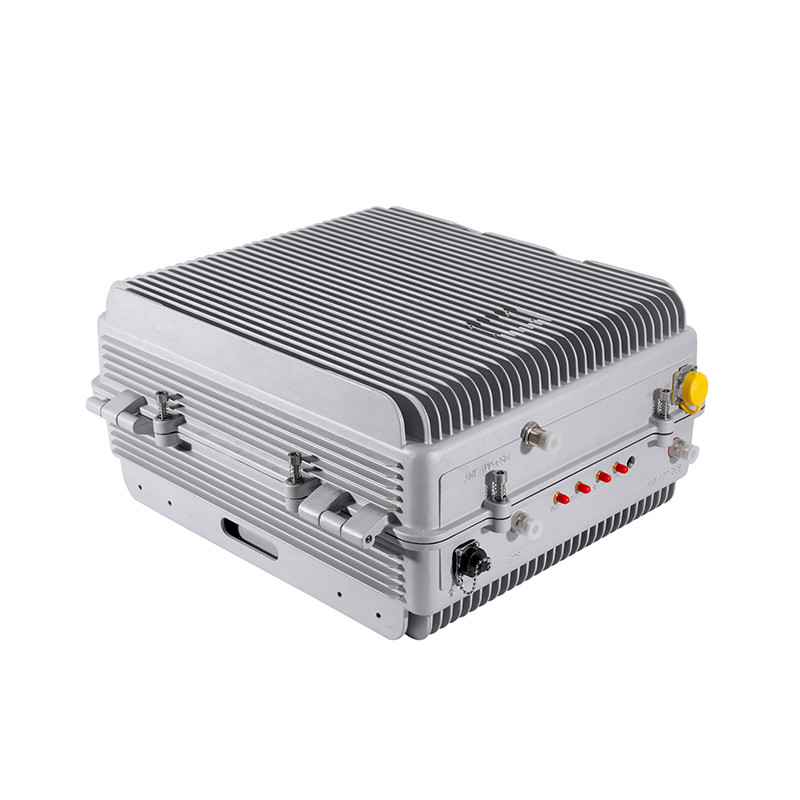

Tri Band 2G 3G 4G Mobile Signal Booster 850MHz 1700MHz 1900MHz
2G 3G 4G 90dB Gain 850 / 1700 / 1900MHz Tri Band Repeater 5 Watt Customized Signal Amplifier
Model No : AT-MS-850/1700/1900
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 5) 850MHz -- Uplink frequency : 824 - 849MHz / Downlink frequency : 869 - 894MHz
(Band 4) 1700MHz -- Uplink frequency : 1710 - 1755MHz / Downlink frequency : 2110 - 2155MHz
(Band 2) 1900MHz -- Uplink frequency : 1850 - 1910MHz / Downlink frequency : 1930 - 1990MHz
Network support : 2G 3G 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-850/1700/1900 |
|||
|
Frenquecy Range 1 |
UplinK: 824-849MHz Downlink: 869-894MHz |
|||
|
Frenquecy Range 2 |
UplinK: 1710-1755MHz Downlink: 2110-2155MHz |
|||
|
Frenquecy Range 3 |
UplinK: 1850-1910MHz Downlink: 1930-1990MHz |
|||
|
Working System |
Band5 850MHz; Band4 1700MHz; Band2 1900MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 850+1700+1900 Tri Band Repeater.pdf
Free Frequency Combination:
Band 800 : Uplink:824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available )
Band 900 : Uplink:880 - 915 MHz Downlink : 925 - 960 MHz
Band 1800 : Uplink:1710 - 1785 MHz Downlink : 1805 - 1880 MHz
Band 1900 : Uplink:1850 - 1910 MHz Downlink : 1930 - 1990 MHz
Band 2100 : Uplink:1920 - 1980 MHz Downlink : 2110 - 2170 MHz
Band 2300 : Uplink:2305 - 2315 MHz Downlink : 2350 - 2360 MHz
Band 2600 : Uplink: 2500 - 2570 MHz Downlink : 2620 - 2690 MHz
Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
Shipping
● We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.
● Please provide your correct address,full name,and zip code.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS certification,etc.
Q2: Can you give me a discount?
A: Please discuss with our sales.
Q3: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support .
Q5: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
