| Brand Name: | ATNJ |
| Model Number: | JS-CPAWS |
| MOQ: | 5Pcs |
| Price: | USD+315---330+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

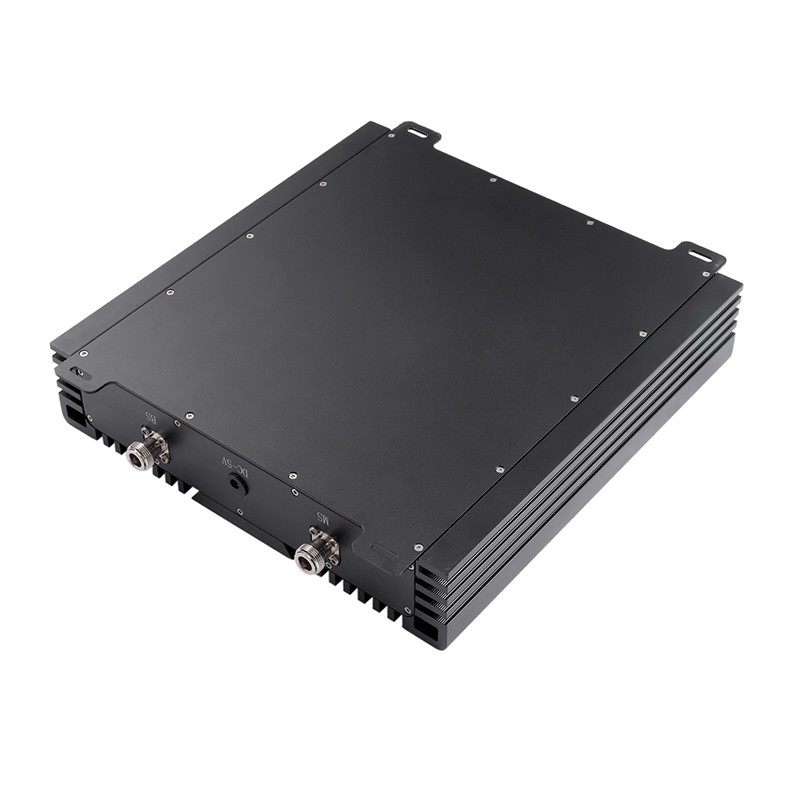

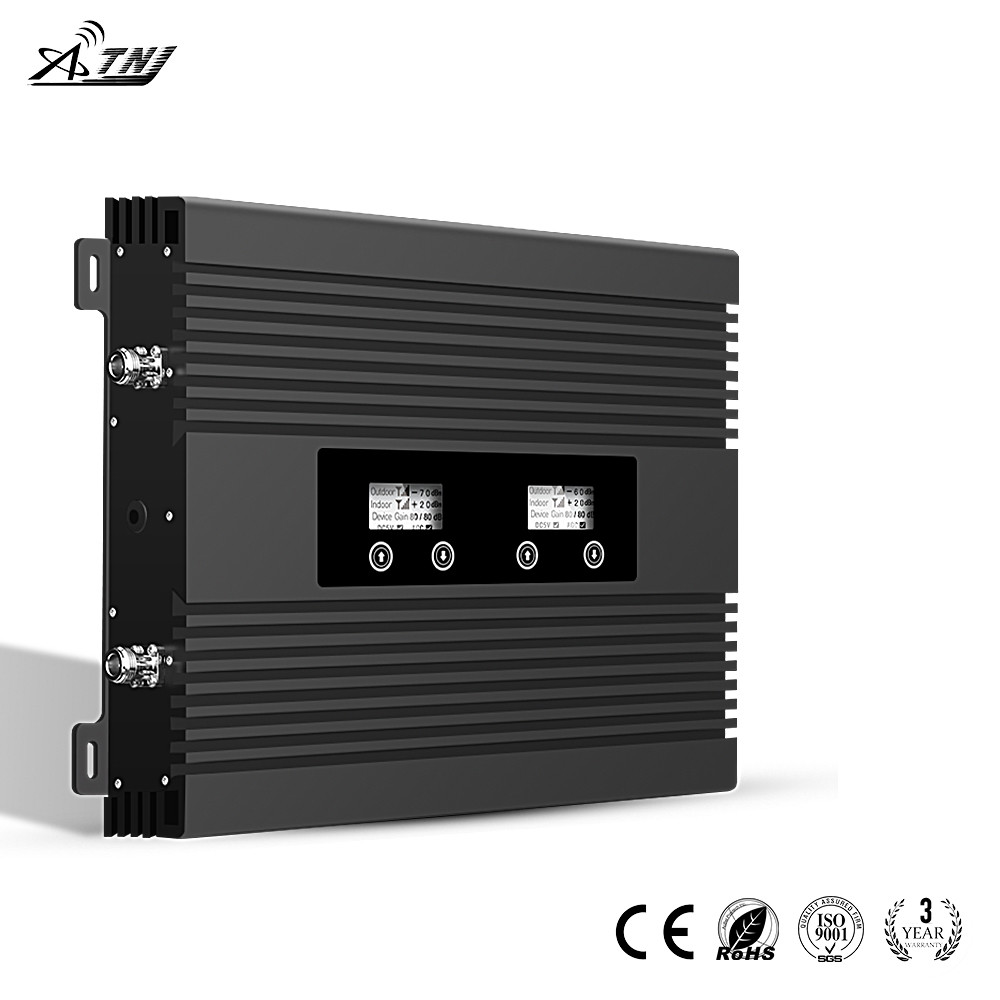

850MHz 1800MHz 2100MHz Tri Band Mobile Booster Intelligent LCD Display
2G 3G 4G Tri band Repeater 850/1800/2100MHz cellular signal repeater amplifier
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Further detail pls click here for downloading the products specification:
Specification:
|
Frequency |
Uplink |
Downlink |
|||
|
CDMA 850MHz |
824-849MHz |
869-894MHz |
|||
|
PCS 1900MHz |
1890-1910MHz |
1930-1990MHz |
|||
|
AWS 1700/2100MHz |
1710-1755MHz |
2110-2155MHz |
|||
|
Max. Gain |
65dB±2dB |
65dB±2dB |
|||
|
Max. Output Power |
17dB±2dB |
17dB±2dB |
|||
|
Bandwidth |
25MHz&60MHz&45MHz |
||||
|
Ripple in Band |
≤ 8dB |
||||
|
Noise Figure |
≤ 6dB |
||||
|
VSWR |
≤ 2.0 |
||||
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|||
|
1~12.75GHz |
≤ -30dBm |
||||
|
Time Delay |
≤ 1.5 μs |
||||
|
MTBF |
> 50000 hours |
||||
|
Impedance |
50 ohm |
||||
|
Power Supply |
AC 90-240V,DC 5V/6A |
||||
|
Power LCD |
Power indicator |
||||
|
Alarm LCD |
Guide |
Done |
|||
|
Detection |
Done |
||||
|
Mechanical Specification |
|||||
|
RF Connector |
N-F |
||||
|
Cooling |
Heatsink Convection cooling |
||||
|
Humidity |
< 90% |
||||
|
Operating Temperature |
-10°C ~ +55°C |
||||
|
Environment Conditions |
IP40 |
||||
|
Installation Type |
Wall Or Desk Installation |
||||
FAQ
|
Q1:Do you have CE or any other certification? |
|
A:Yes,we CE, , ROHS and CCC certification,etc. |
|
Q2:Can you give me a discount? |
|
A:Please discuss with our sales. |
|
Q3:How about gain and output power of your device? |
|
A:Different models, gain and output power aredifferent,for more details, please contact us. |
|
Q4:How long is warranty period? |
|
A:The warranty is 3 years. And we offer 7*24technical support |
|
Q5:how many square meters can be covered? |
|
A:For different models,the standard kit is with 350㎡,we could add extra inside antenna for expanding the coverage. |
|
