| Brand Name: | ATNJ |
| Model Number: | AT-MS-900/1800/2100 |
| MOQ: | 5Pcs |
| Price: | USD+2700--2800+kit |
| Packaging Details: | Standard neutral packing |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
5 Watt 900MHz 1800MHz 2100MHz Tri Band Repeater Customized Amplifier
2G 3G 4G 90dB Gain 900/1800/2100MHz Tri Band Signal Repeater 5 Watt Customized Amplifier
Product Detail:
Model No : AT-MS-900/1800/2100
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 1) 2100MHz -- Uplink frequency : 1920 - 1980MHz / Downlink frequency : 2110 - 2170MHz
(Band 3) 1800MHz -- Uplink frequency : 1710 - 1785MHz / Downlink frequency : 1805 - 1880MHz
(Band 8) 900MHz -- Uplink frequency : 890 - 915MHz / Downlink frequency : 935 - 960MHz
Network support : 2G 3G 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-900/1800/2100 |
|||
|
Frenquecy Range 1 |
UplinK: 890-915MHz Downlink: 935-960MHz |
|||
|
Frenquecy Range 2 |
UplinK: 1710-1785MHz Downlink: 1805-1880MHz |
|||
|
Frenquecy Range 3 |
UplinK: 1920-1980MHz Downlink: 2110-2170MHz |
|||
|
Working System |
Band1 2100MHz; Band3 1800MHz; Band8 900MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
33dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 900+1800+2100 Tri Band RF Repeater.pdf
Selling Point
LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation.
The signal amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Free Frequency Combination:
Band 800: Uplink : 824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available )
Band 900: Uplink : 880 - 915 MHz Downlink : 925 - 960 MHz
Band 1800: Uplink : 1710 - 1785 MHz Downlink:1805 - 1880 MHz
Band 1900: Uplink : 1850 - 1910 MHz Downlink:1930 - 1990 MHz
Band 2100: Uplink : 1920 - 1980 MHz Downlink:2110 - 2170 MHz
Band 2300: Uplink : 2305 - 2315 MHz Downlink:2350 - 2360 MHz
Band 2600: Uplink : 2500 - 2570 MHz Downlink:2620 - 2690 MHz
Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg

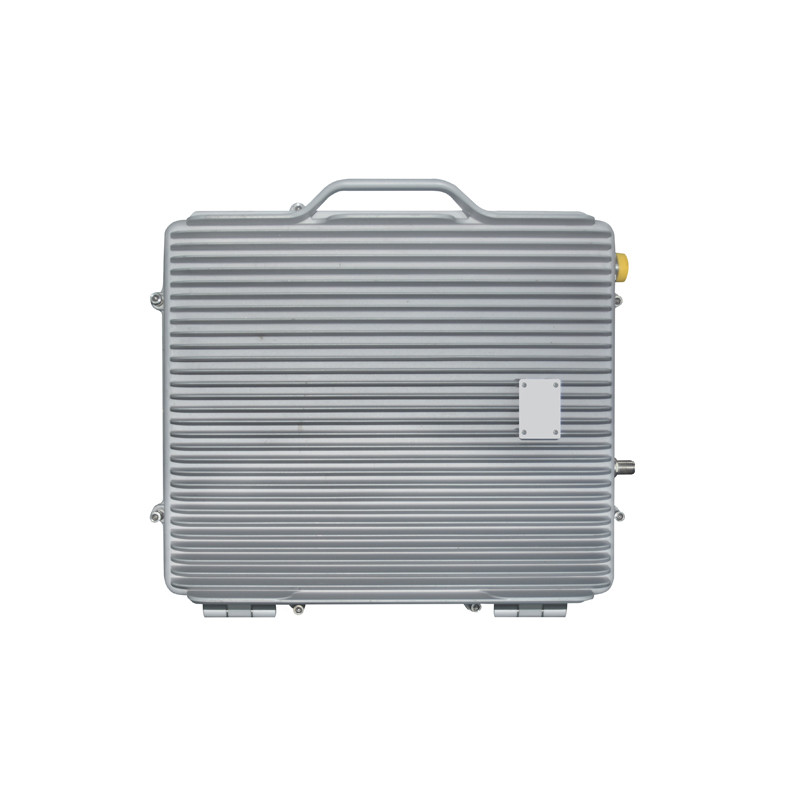

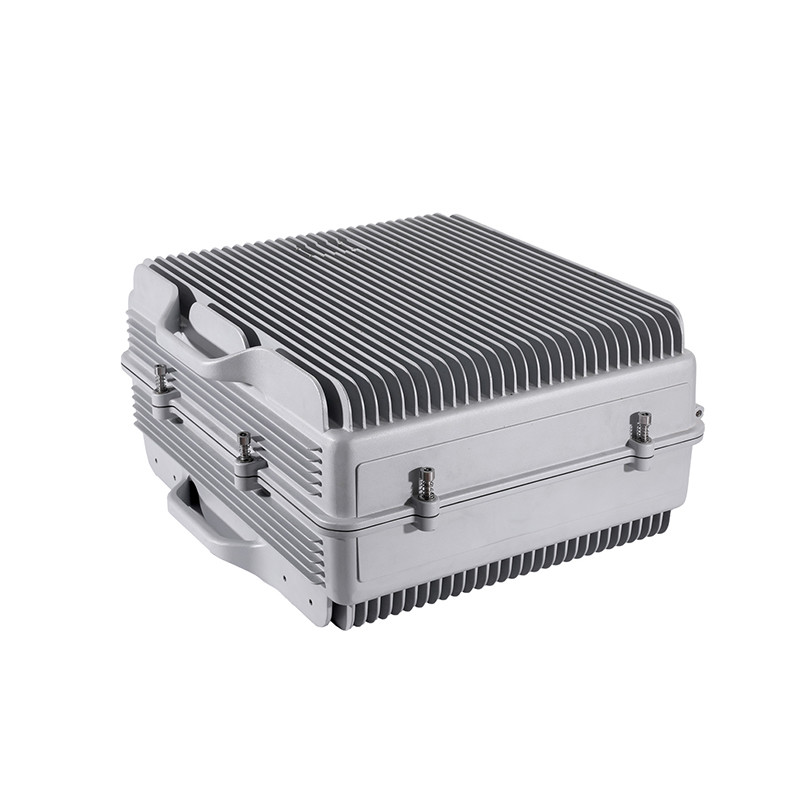

Product Pictures
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS certification,etc.
Q2: Can you give me a discount?
A: Please discuss with our sales.
Q3: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support .
Q5: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
|
