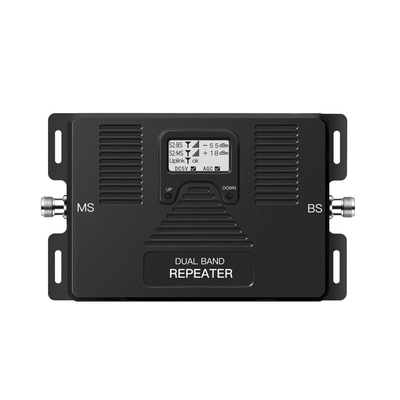

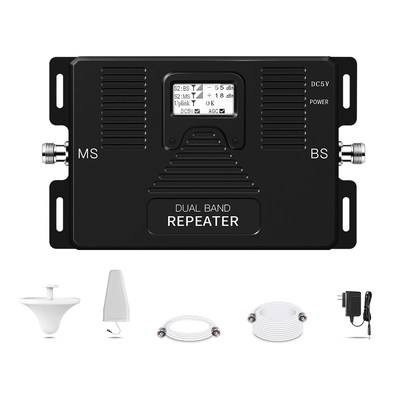

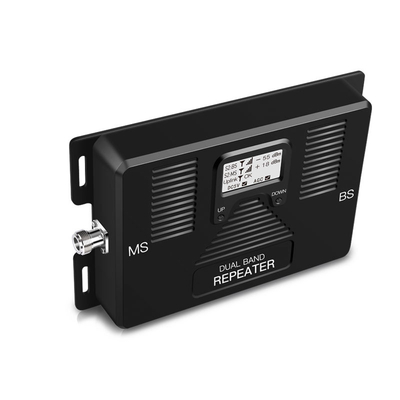

Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier

Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier

Brand Name: ATNJ
Model Number: JS-DB850/2100
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Color:
Gold,Black,White And Customized
Gain:
70dB
Power:
17-20dBm
Products Type:
Network Jammer, Antenna Booster
Supply Ability:
1000+unit+per day.
High Light:

70dB Mobile Signal Boosters

,

AGC Mobile Signal Boosters

,

70dB Cellular Repeater Amplifier

Product Description

Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier



Mobile Signal Boosters 2G 3G 4G Dual Band 850MHz / 2100MHz Cellular Repeater Amplifier



The advantages of this amplifier include:



LCD Display.



Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.



Sleep mode.



In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.



Automatic adjustment of operation.



The amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz,1920-1980MHz

Downlink

869-894MHz,2110-2170MHz

Frequency Bandwidth (3dB Bandwidth)

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+2100MHz A032 mobile signal repeater.pdf



How does it work?



1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 0





Product Description





Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 1Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 2Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 3Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 4Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 5

Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 6





Mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.





Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 7

Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 8



Technique supporting:



1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.



2. If cannot call out,please adjust the direction of outdoor antenna.



3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.





Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 9





It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.





Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 10Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 11Dual Band 70dB Mobile Signal Boosters Cellular Repeater Amplifier 12





FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. Does the signal booster work have radiation or not ?

Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


5. Can this mobile signal repeater create a signal where there is no cell signal before?

The mobile signal repeater cannot produce a signal, only amplify a weak one.
