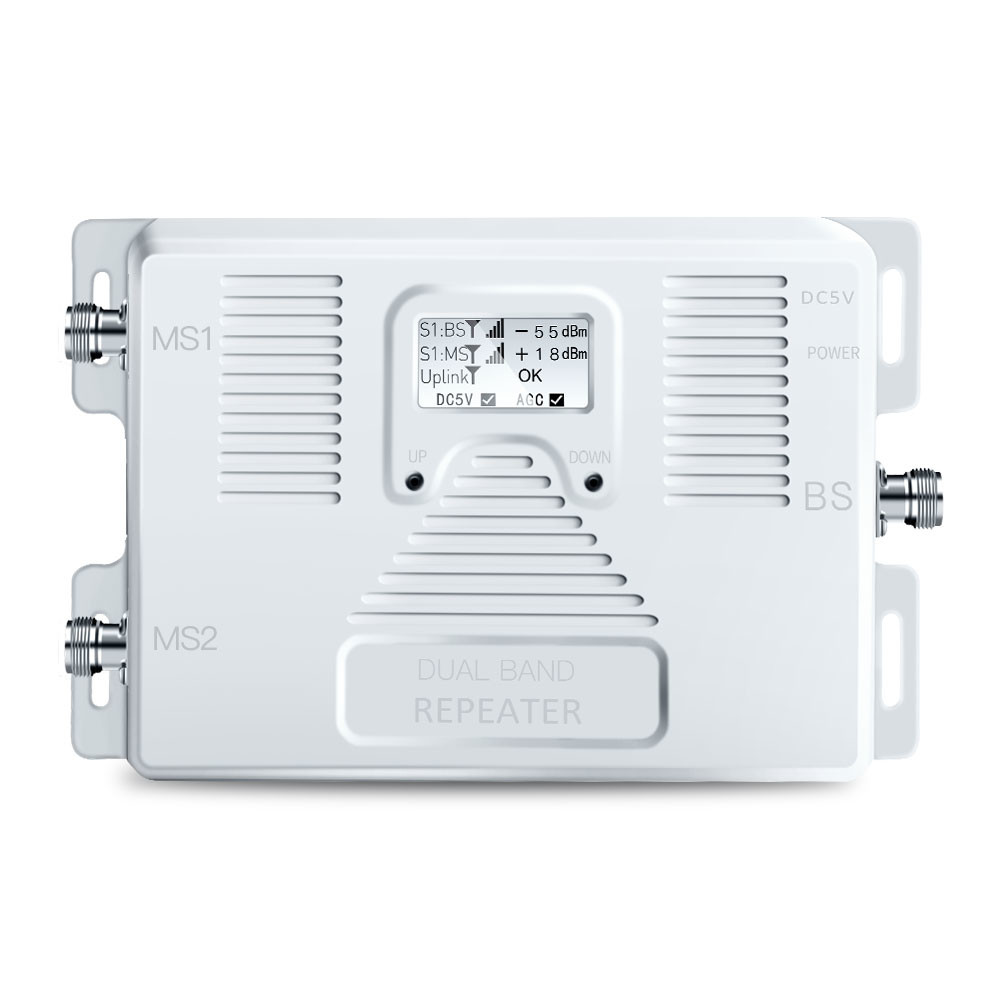

2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz

2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz

Brand Name: ATNJ
Model Number: JS-DB900/1800
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Color:
Gold Or Black Or White Or Cuztomized
Weight:
4kg
OEM ODM Support:
Yes
Products Type:
Lte 1800mhz 4g Cellular Dcs Lte Gsm 1800 4g Booste, Mobile Network Booster Cell Phone Signal
Supply Ability:
1000+unit+per day.
High Light:

900MHz Wireless Cell Phone Booster

,

1800MHz Wireless Cell Phone Booster

,

1800MHz Wireless Signal Booster

Product Description

2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz



Dual Output 900/1800MHz mobile phone repeater 2G 3G 4G wireless cell phone booster



General


The 900+1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz,1710-1785MHz

Downlink

935-960MHz,1805-1880MHz

Frequency Bandwidth

25MHz&75MHz

Booster Gain

67±3dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<= 2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Packing Weight

≤3.5 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Intelligent LCD Guide

Done

Further detail pls click here for downloading the products specification:

900+1800MHz A032 mobile signal repeater.pdf



Selling Point



1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.





2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 02G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 12G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 2





2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 32G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 42G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 52G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 62G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 72G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 82G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 92G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 10

2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 11

2G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 122G 3G 4G Wireless Cell Phone Booster Dual Output 900MHz 1800MHz 13





Warranty



● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.



● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.

FAQ:



1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?

Yes. We have a user manual and support technical support 24/7.


4. What's your device lifespan?
Normally our device can be used 5-10 years.

5. How many square meters can be covered?
For different models, the covered square meters are different.
