Product Details:
|
| 900MHz Frequency Range: | 890-915MHz / 935-960MHz | 2100MHz Frequency Range: | 1920-1980MHz / 2110-2170MHz |
|---|---|---|---|
| Products Name: | 3G Booster | Color: | Black , Customized |
| Warranty: | 36 Months | ||
| High Light: | 900MHz Mobile Signal Boosters,2100MHz Mobile Signal Boosters,70dB Dual Band Signal Booster |
||

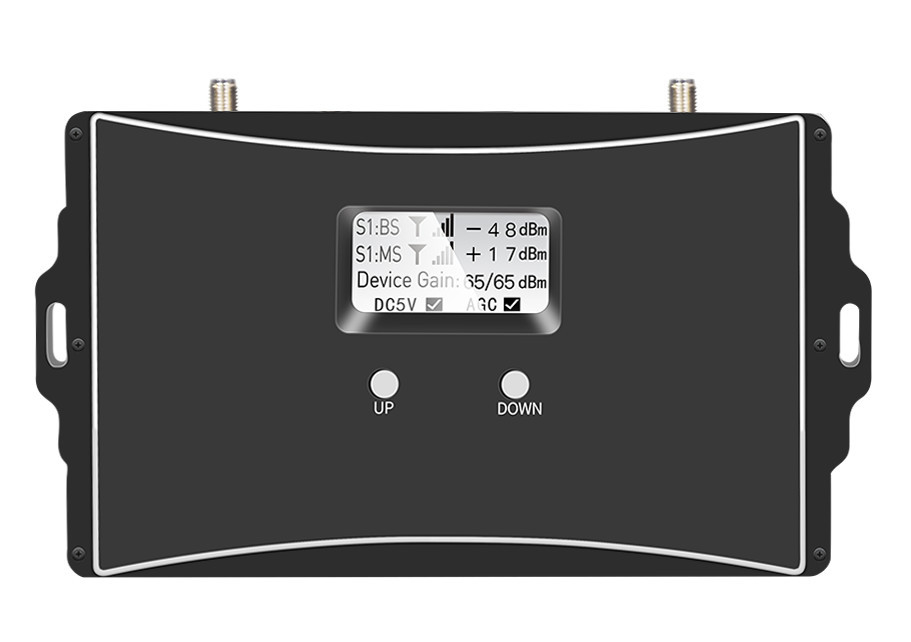

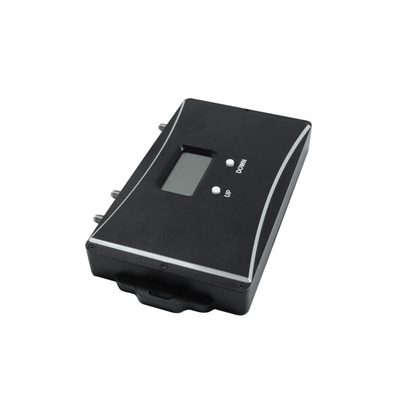

70dB Dual Band Mobile Signal Boosters 900 2100MHz Repeater Amplifier
70dB Gain Dual Band Mobile Signal Booster 2G 3G 4G 900 / 2100MHz Repeater Amplifier
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range(Customers to Choose) |
Uplink |
890-915MHz, 1920-1980MHz |
|
Downlink |
935-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15d Bm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+2100MHz AT005 mobile signal booster.pdf
Product Description
Accessories
a. One dual band signal booster;
b. Two indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Advantages:
1. Smart Function, Intelligent mode setting smart function called which can be activated via the front panel. users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
3. ODM/OEM service is available.
Feature:
1. Our mobile signal booster are main used to improve the weak signal in the weaker signal situtation, meanwhile, it can also up speed the networks of 2G/3G/4G.It is a whole solution where the mobile signal weak and can not make the calling.
2. We can provide you only unit product, or all of mounting kits for your choice. such as outdoor antenna/indoor antenna/ antenna fix bracket/ cable/user manual/ power adapter/ mounting accessories and so on.
Our service:
1. We have long business relationship shipping agent, we can provide you best price, best service based on your destination.
2. We provide best after service, if there is any doublt after you get products, we try our best to service for you.
3. We provide warranty is 3 years.
