Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-900/1800/2100/H
Document: 900+1800+2100 A013 Signal R...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Device Gain: |
80dB |
Output Power: |
27±3dBm |
Products Type: |
Mobile Tri Band Repeater 4g, 4g Mobile Signal Tester |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Device Gain: |
80dB |
Output Power: |
27±3dBm |
Products Type: |
Mobile Tri Band Repeater 4g, 4g Mobile Signal Tester |

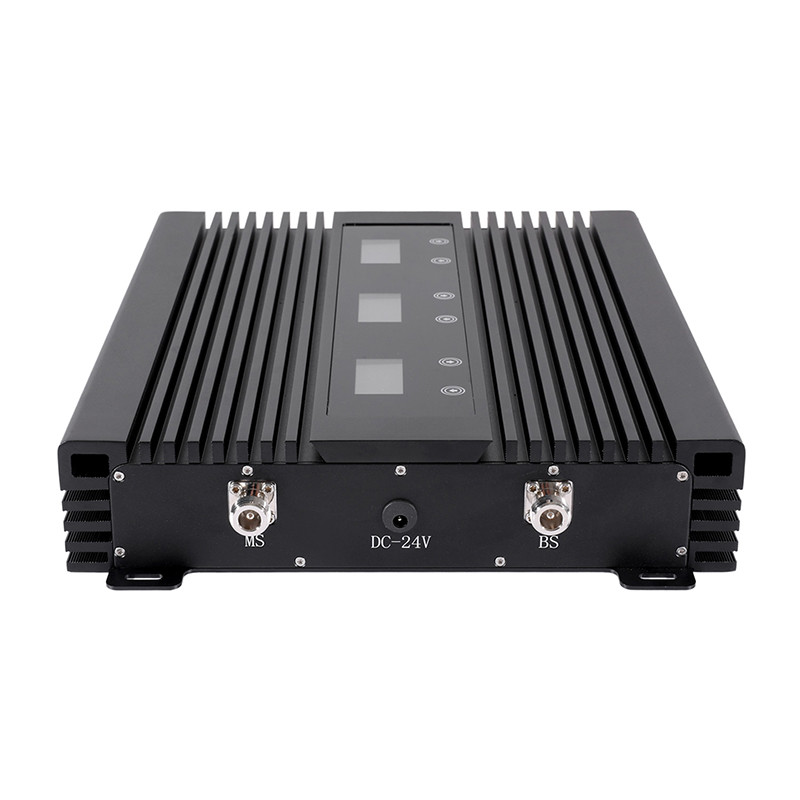

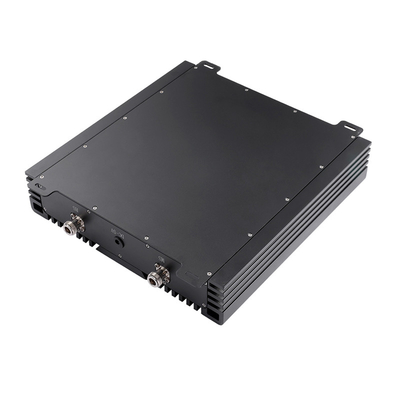

900MHz 1800MHz 2100MHz Tri Band Signal Booster High Gain Repeater
900 / 1800 / 2100MHz Tri Band 2G 3G 4G Mobile Signal Booster High Gain Repeater Amplifier
Selling Point
Tri band 900/1800/2100MHz signal booster designed to improve the quality of telephone calls and mobile internet. This type of connection improves the performance of all the mobile applications you use (Skype, web browsing, chat, VoIP). In addition, it will also be able to improve GSM communication (voice calls, SMS).
Signal booster AS-900/1800/2100/H is reliable and safe, which is confirmed by the international quality certificates CE and RoHS. With AS-900/1800/2100/H you get excellent mobile communication and stable 4G internet at the same time. Other important features are:

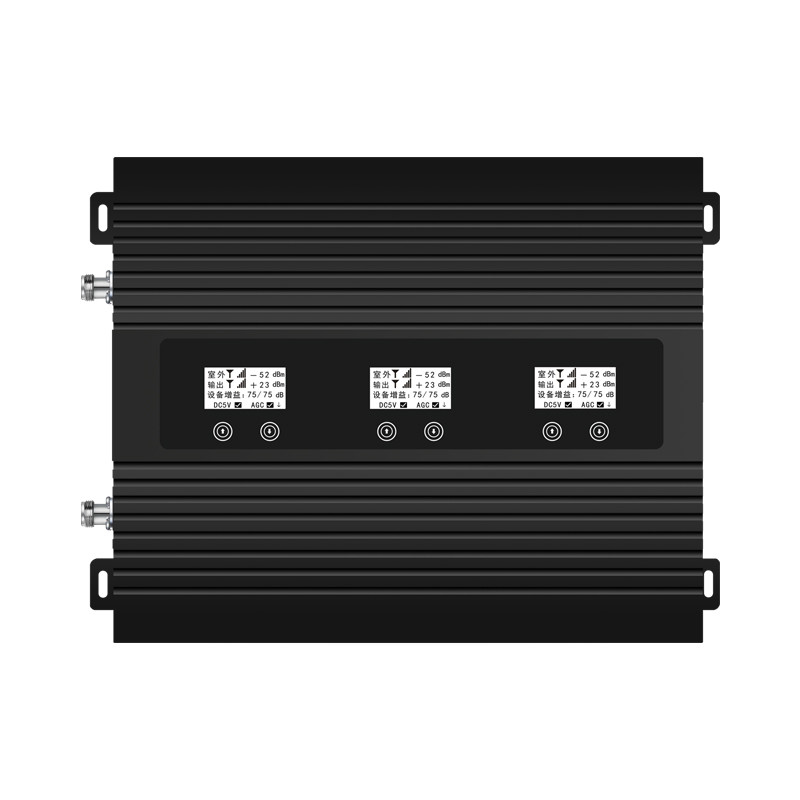

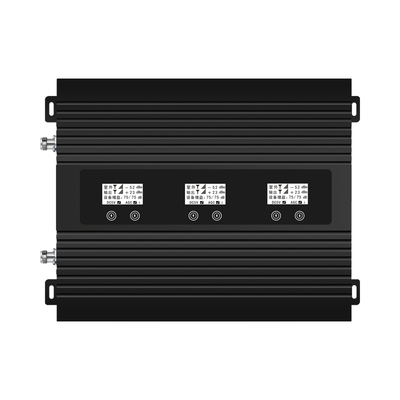

LCD Display. Shows signal strength indoors and outdoors, which is a huge help when setting up. If errors occur, messages appear on the display explaining the reason and suggesting solutions. In addition, installation tips are offered.
Sleep mode. If you are not using a mobile connection (calling or mobile internet), the amplifier will go into power-saving mode and automatically return to operating mode as soon as you start using the phone.
Automatic control. The amplifier automatically adjusts the input signal and gain depending on the signal reception conditions in your home.
Amplifier comes complete with antennas, cables and brackets. So once you have received the package, you can proceed directly with the installation. The installation will take you no more than 15-20 minutes, it is simple and does not require any special knowledge. After installing the whole system, connect it to a power source and enjoy fast mobile internet.
AS-900/1800/2100/H is a simple and smart way to make your mobile communication easier!
Technical Specifications:
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 890-915MHz, 1710-1785MHz, 1920-1980MHz |
| Downlink | 935-960MHz, 1805-1880MHz, 2110-2170MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 25MHz, 75MHz, 60MHz | |
| Gain | 80dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 27dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 5dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N -Type(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Weight | ≤8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
900+1800+2100 A013 Signal Repeater.pdf
Product Description
Model No : AS-900/1800/2100/H
Network support : GSM 2G + DCS 2/4G +WCDMA 3/4G
Gain : 80dB
Connector Type : N-female connector
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;
2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
