Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB900/1800/P
Document: 900+1800MHz AT005 mobile si...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Range: |
1710-1710MHz/1805-1880MHz |
900MHz Range: |
890-915MHz/935-960MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Black Or Gold ,Customized |
RF Connect Type: |
SMA/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Products Type: |
24 Meter C Band Satellite Dish Antenna, Amplitec |
1800MHz Range: |
1710-1710MHz/1805-1880MHz |
900MHz Range: |
890-915MHz/935-960MHz |
Gain: |
70dB |
Output Power: |
20dBm |
Color: |
Black Or Gold ,Customized |
RF Connect Type: |
SMA/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Products Type: |
24 Meter C Band Satellite Dish Antenna, Amplitec |

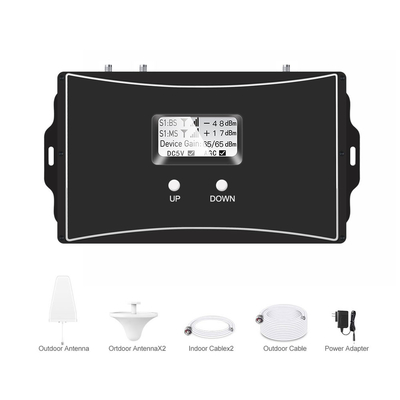

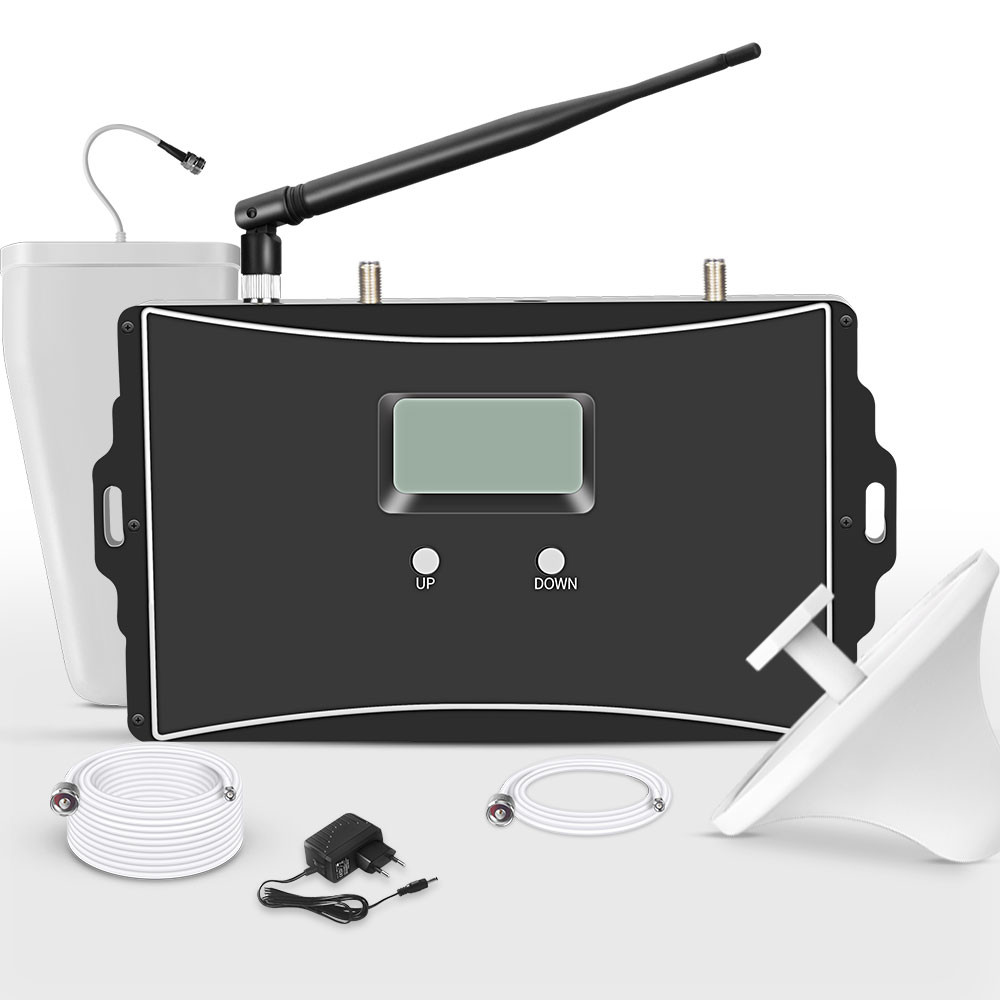

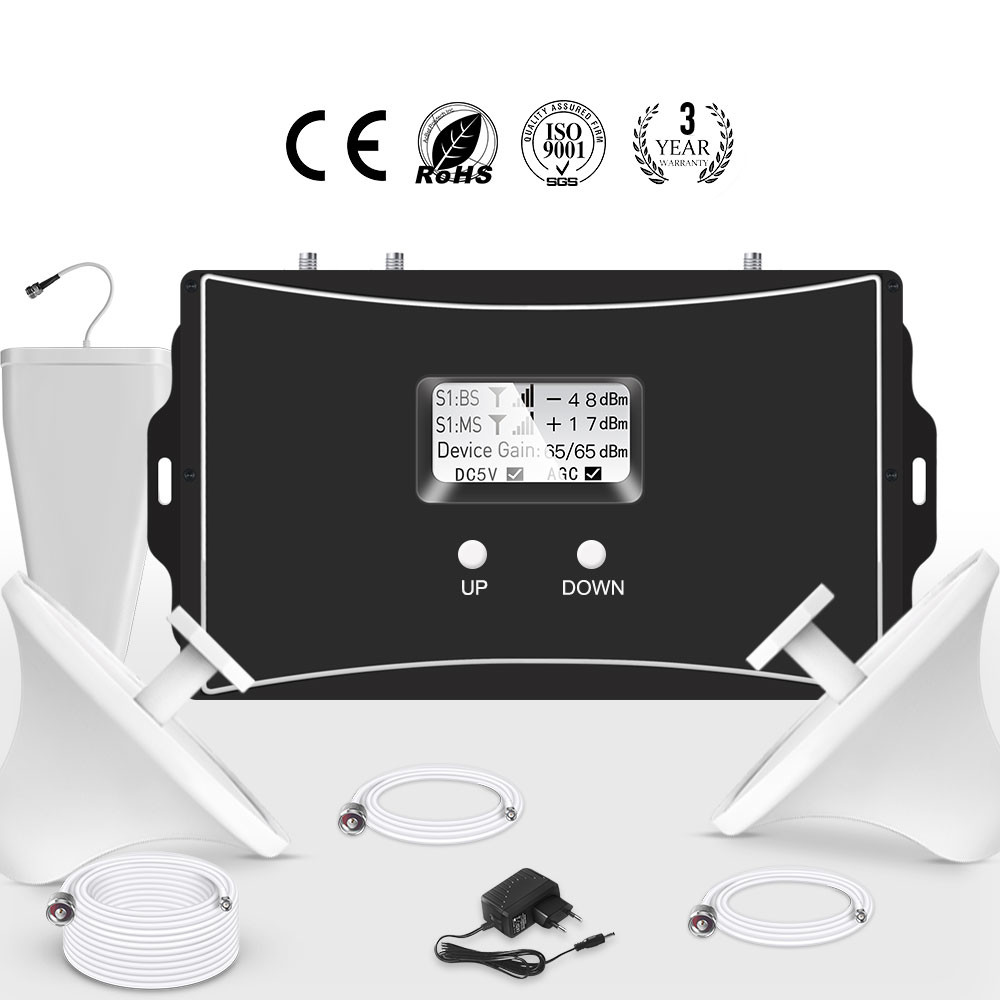

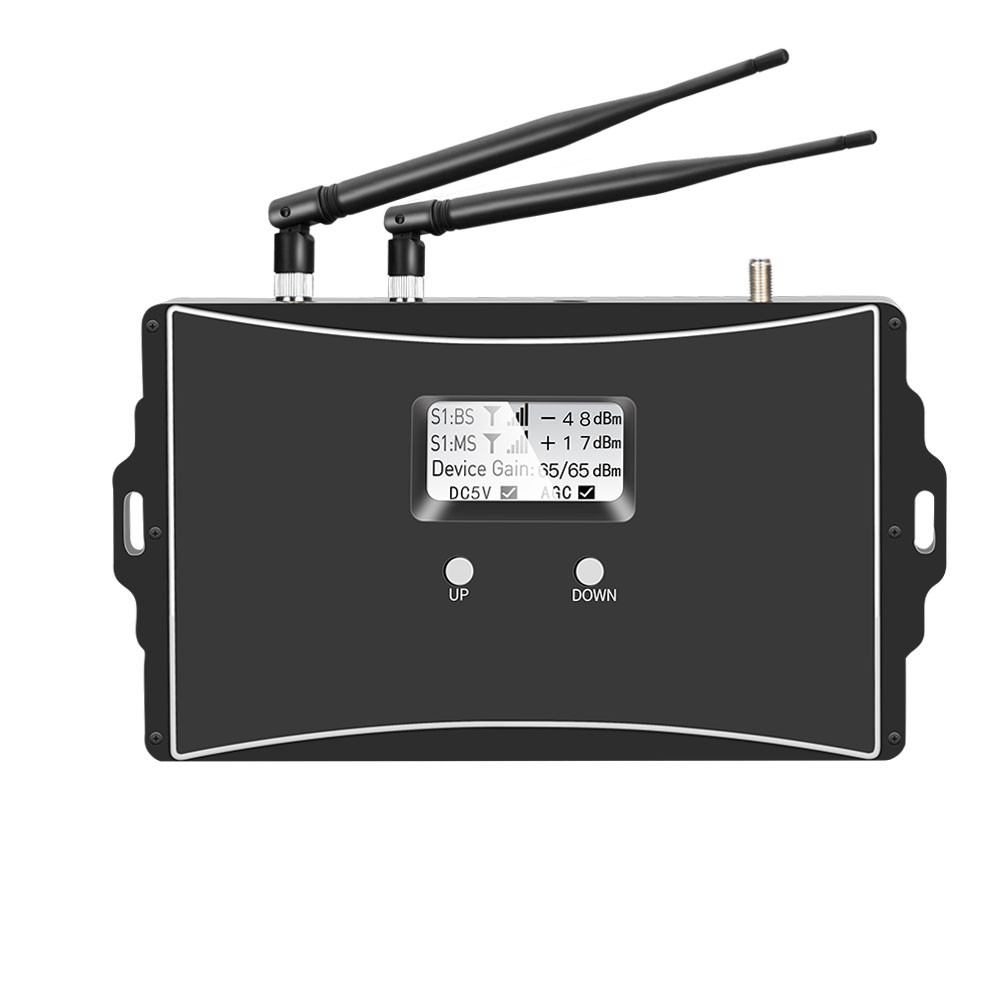

900MHz 1800MHz 2G 4G LTE Cell Signal Booster GSM Mobile Booster
900/1800MHz Mobile Signal Booster 2G 4G GSM Band3 20dBm 4G Repeater 2G GSM LTE 4G Cellular Amplifier
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1710-1785MHz |
|
Downlink |
935-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<= 2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤ 0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+1800MHz AT005 mobile signal booster.pdf
Selling Point
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

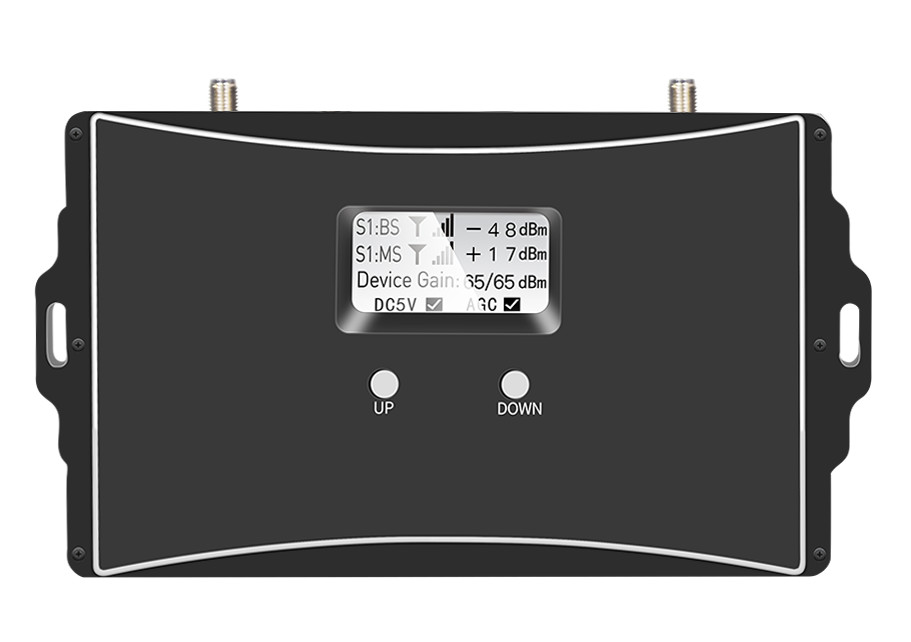

1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when the device was damaged.
Product Description
2G 4G signal booster (B3+B8)
Gain:70db
Max power:20dbm
Get faster 4G Internet, enjoy fast upload and downlaod at your home or office Clear voice, no more missing call, reduce radiation of cell phone
This signal amplifier can boost 2G GSM 900 and 4g LTE 1800 in Europe, Africa,Assia.
GSM 900 and LTE 1800 are widely operated in France, Italy, Spain, Portugal, Gemany, Poland, etc.
FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
