rg58 signal booster coaxial cable
"

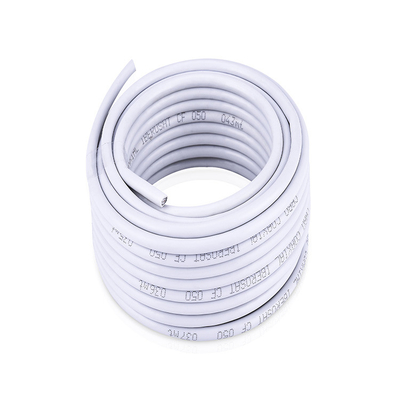

3D FB RG58 Signal Booster Coaxial Cable Customized Length 50M 100M 300M
3D FB RG58 Signal Booster Coaxial Cable Customized Length 50M 100M 300M Product Description Electrical Properties and Mechanical Properties : 1. Characteristic impedance : 50 ohm 2. Rated capacitance : 82 pf/m 3. Velocity of propagation : 84 % 4. Operating frequency : 1- 6000 MHz 5. Operating temperature : - 25C ~ +70C 6. Minimum bending radius : 61 mm 7. VSWR : 1~3000 MHz1.15 ; 1~6000 MHz1.20 Cable Construction : 1. Inner conductor : Bare Copper or Copper Clad Aluminum,
RG58 20m Signal Booster Coaxial Cable SMA Male To SMA Female Type
RG58 20m Signal Booster Coaxial Cable SMA Male To SMA Female Type About this item Model : 3D-FB/RG58 Cable Connector type : SMA Male To SMA Female Cable Length : 20M Characteristic Impedance : 50 ohm Operating frequency : 1-6000 MHz RG58 Basic construction RG58 CONDUCTOR MATERIAL BC/CCS Nom.Dia. 7*0.16mm(0.48mm) DIELECTRIC MATERIAL PE Nom.Dia. 1.60mm SHIELD MATERIAL TC Braiding COVERAGE 90% JACKET MATERIAL PVC Nom.Thick. 0.5mm Nom.Dia. 2.70.10mm Further detail pls click here
20M Signal Booster Coaxial Cable
20M Signal Booster Coaxial Cable ATNJ 3D-FB RG58 20M SMA/Male-N/Male Coaxial Cable for Mobile Phone Signal Repeater Packaging & Delivery Packaging Details Packing according to customer's demand. Port Shenzhen 20 Meters N Male To N Male Further detail pls click here for downloading the products specification: ATNJ Mobile Signal Repeater.pdf Packaging & Shipping We usually ship goods from Shenzhen Port, but we can deliver goods according to customer's requirements. FAQ: Q1: Are
LMR400 Signal Booster Coaxial Cable
LMR400 Signal Booster Coaxial Cable RF N male to N male LMR400 KSR400 RG8 SYV-50-7 7D-FB cable for Mobile Signal Repeater Product Description Poduct Name RF cable N male to N male LMR400 Connector A N male (or customized) Connector A N male (or customized) Cable Type LMR400 Cable Length 20M (Can be customized for your required length) Cable OD 10.3mm Weight 0.12KG Operating Frequency DC0-6GHz V.S.W.R 1.15 Characteristic impedance 50 Package Carton Further detail pls click
Signal Booster Coaxial Cable with 20M N Male Connector for Customized Length
3D FB 20M N Male Custom Coax Cable For Mobile Phone Signal Repeater Product Description Cables are used for conveying electrical energy or communicating data and signals over distances. They consist of one or more conductors, typically made of metal like copper or aluminum, which are encased in insulating materials and often shielded or armored to protect against environmental factors and interference. Electrical Properties and Mechanical Properties : 1 . Characteristic
Customized N Male Type Signal Booster Connector 50 Ohm Impedance
Customized N Male Type Signal Booster Connector 50 Ohm Impedance Category : connector Properties : coaxial rf adapter Series : N male/N male Transfer type : N plug to N plug Impedance : 50 Ohm Shape : straight type Material : copper plating nickel N Type male connectors nickel - plated body with center conductors N male adapters Technical parameters : standing wave ratio : 1.1 or less (0 to 3 GHZ) Product specification Category : Connectors, Interconnects Impedance : 50

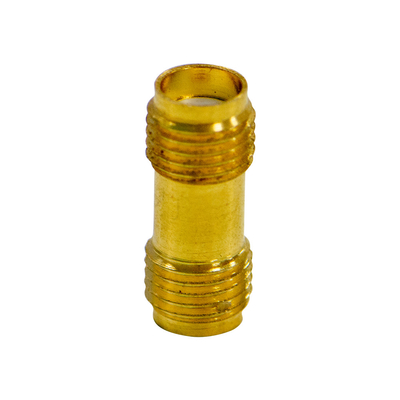

DC To 6GHz Signal Booster Connector Customized SMA Female Type
DC To 6GHz Signal Booster Connector Customized SMA Female Type Product specification Category : Connectors, Interconnects Impedance : 50 Ohm Material : Zinc Alloy British system F connectors diameter : 9.2-9.4 mm. RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.SMA Female-SMA Female type male female crimp connector for LMR195 LMR200 LMR240 LMR300
DC To 6GHz Mobile Signal Booster Connector Zinc Alloy Material
DC To 6GHz Mobile Signal Booster Connector Zinc Alloy Material RF Coaxial Adapter SMA Male-N Female Connector for GSM DCS 3G Repeater Booster Amplifier Product specification Category:Connectors, Interconnects Impedance: 50 Ohm Material:Zinc Alloy British system F connectors diameter: 9.2-9.4 mm. RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.SMA Male
Customized Cell Phone Booster Connectors SMA Male To N Male Type
Customized Cell Phone Booster Connectors SMA Male To N Male Type Product specification Category:Connectors, Interconnects Impedance: 50 Ohm Material:Zinc Alloy British system F connectors diameter: 9.2-9.4 mm. Customized SMA Male-N Male Type Connector for Mobile Phone Signal Repeater Cable RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.N type male
