Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: SMA Male-N Male
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1--3+kit
Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
RF Connect Type: |
Customized SMA Male-N Male |
Weight: |
0.05kg |
Material: |
Zinc Alloy |
Gender: |
Male |
Products Type: |
Signal Amplifier |
Impedance: |
50OHm |
RF Connect Type: |
Customized SMA Male-N Male |
Weight: |
0.05kg |
Material: |
Zinc Alloy |
Gender: |
Male |
Products Type: |
Signal Amplifier |

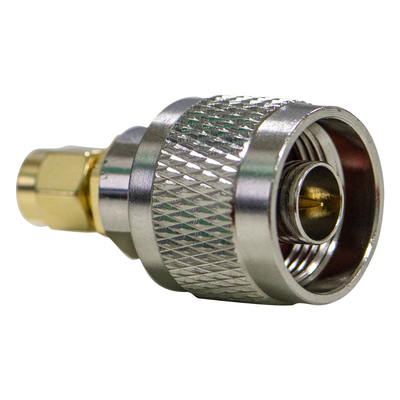

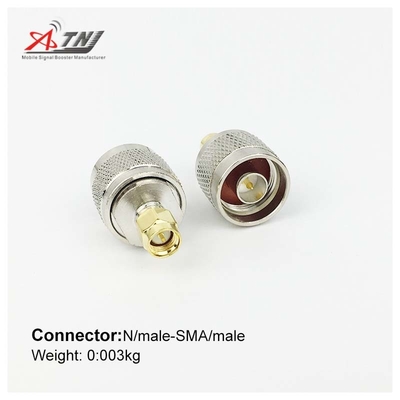

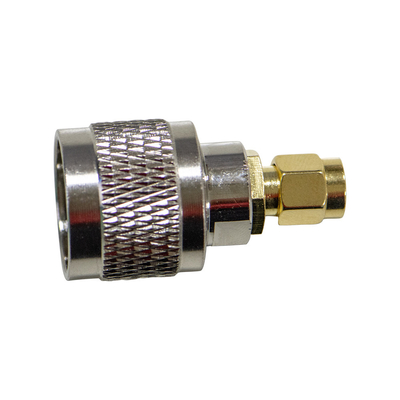

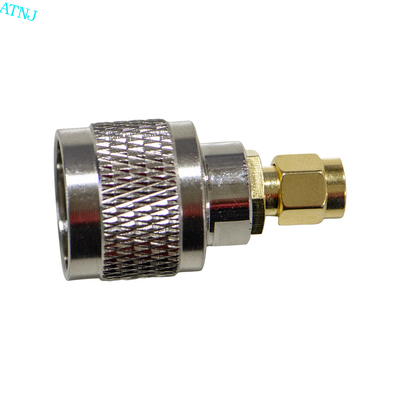

Customized Cell Phone Booster Connectors SMA Male To N Male Type
Product specification
● Category:Connectors, Interconnects
● Impedance: 50 Ohm
● Material:Zinc Alloy
● British system F connectors diameter: 9.2-9.4 mm.
Customized SMA Male-N Male Type Connector for Mobile Phone Signal Repeater Cable
✔ RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.N type male female crimp connector for LMR195 LMR200 LMR240 LMR300 LMR400 LMR600 RG8U RG58 Cable.
Electrical Characteristics
| Name | N to SMA connector |
| Impedance | 50Ω/75Ω |
| Frequency range | 0~14GHz |
| Working Voltage | 2700V max |
| Withstand Voltage | 4000V rms |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤ 5mΩ ≤ 5mΩ |
| Insulation resistance | ≥ 10000MΩ |
| Temperature range | - 55°C ~ + 155°C |
| Durability(matings) |
> 500 |
| Connector Series | N to SMA type male crimp connector |
| Connector Impedance | 50 Ohm |
| VSWR | MAX 1.15 |
| Frequency | DC to 6GHz |
| Connector Body Material | Nickel/gold |
Note:This connector is for RG6 coaxial cabla. The price is for one piece.
Further detail pls click here for downloading the products specification:
Q1 : How to select RF connectors?
A1 :
Q2 : How about the MOQ & delivery time?
A2 : We have large of inventory,1pcs is OK for us. And We can ship most orders in 3-5 working days.
Q3 : How about the Shipping Method?
A3 : DHL/UPS/TNT/Fedex or by Air/Sea. It takes 4-7 days from China to your office by express.
Q4 : How about the label and the logo?
A4 : Customize label and logo is workable.
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
Q6 : How many the warranty?
A6 : All our goods are 1 years warranty and we will do free replacement for all the problem items.
