Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: 3D-FB SMA-JK-20M
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+7--15+kit
Packaging Details: Standard neutral packing10*10*5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
RF Connect Type: |
SMA/Female--SMA/Male |
Length: |
20M |
Cable: |
3D-FB RG58 |
Weight: |
0.55 Kg |
Packing Size: |
10*10*5CM |
Warranty: |
12 Months |
Products Type: |
Cellular Amplifier |
Impedance: |
50OHm |
RF Connect Type: |
SMA/Female--SMA/Male |
Length: |
20M |
Cable: |
3D-FB RG58 |
Weight: |
0.55 Kg |
Packing Size: |
10*10*5CM |
Warranty: |
12 Months |
Products Type: |
Cellular Amplifier |

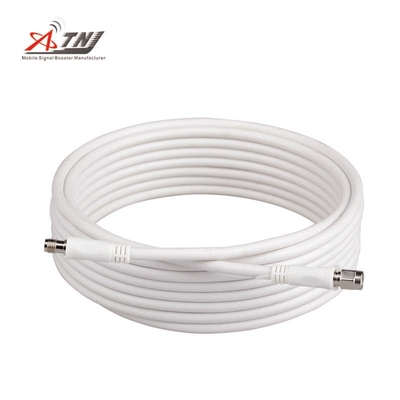

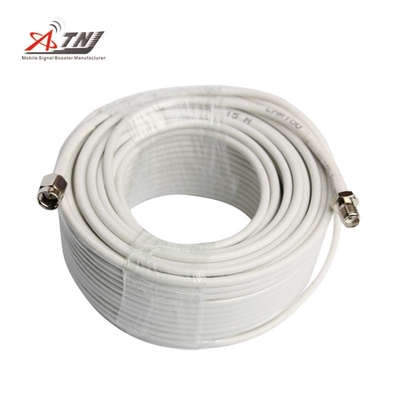

RG58 20m Signal Booster Coaxial Cable SMA Male To SMA Female Type
About this item
Model : 3D-FB/RG58 Cable
Connector type : SMA Male To SMA Female
Cable Length : 20M
Characteristic Impedance : 50 ohm
Operating frequency : 1-6000 MHz
|
RG58 Basic construction
|
||
|
|
RG58 |
|
|
CONDUCTOR |
MATERIAL |
BC/CCS |
|
Nom.Dia. |
7*0.16mm(0.48mm) |
|
|
|
MATERIAL |
PE |
|
Nom.Dia.
|
1.60mm |
|
|
|
MATERIAL |
TC Braiding |
|
COVERAGE |
90% |
|
|
|
MATERIAL |
PVC |
|
Nom.Thick. |
0.5mm |
|
|
Nom.Dia. |
2.7±0.10mm |
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
We are manufacturer, and have our own factory.
FAQ :
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
