80dB Gain 4G Signal Booster for LTE 2G 3G 5G Mobile Signals

Brand Name:	ATNJ
Model Number:	ATNJ-800/2600
Price:	$260/sets 1-99 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

4G Signal Booster

Network:

GPRS, 4g, GSM, 3G, EGSM, LTE, DCS, 5G, 2G

Cellular Networks:

Gain:

80dB

Coverage:

100-700m2

RF Connector:

N-Type Female

Warranty:

3years

Key Words:

Repeater

Weight:

1.2kg

Size:

225x140x35mm

Color:

Black

Power Supply:

AC110-220V

Highlight:

80dB 4G signal booster

LTE mobile signal amplifier

5G 3G signal repeater

Product Description

80dB Gain 4G Signal Booster for LTE 2G 3G 5G Mobile Signals

Product Attributes

Attribute	Value
Type	4G signal booster
Network	GPRS, 4G, GSM, 3G, EGSM, LTE, DCS, 5G, 2G
Cellular Networks	4G
Gain	80dB
Coverage	100-700m²
RF Connector	N-Type Female
Warranty	3 years
Weight	1.2kg
Size	225x140x35mm
Color	Black
Power Supply	AC110-220V

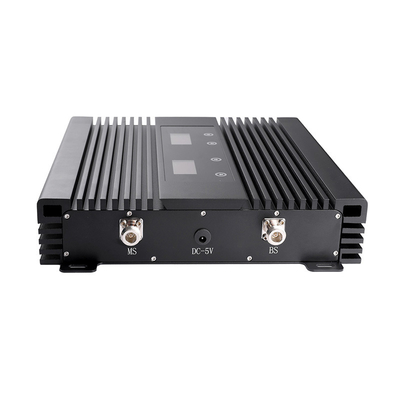

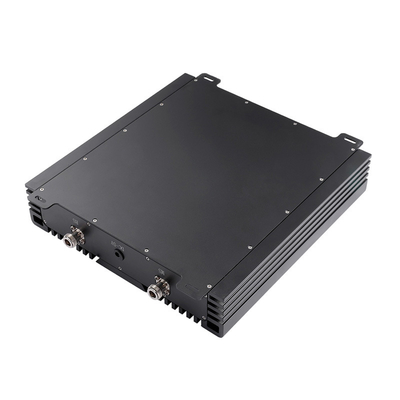

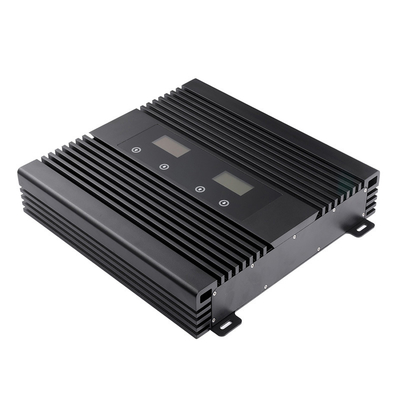

Product Images

Technical Specifications

Frequency Range (Customers to Choose)
Uplink	832-862MHz, 2500-2570MHz
Downlink	791-821MHz, 2620-2690MHz
Frequency Bandwidth (3dB Bandwidth)
25MHz,75MHz,60MHz
Gain
80dB
Automatic gain control (Step Attenuation)
31dB @ 1dB/ Step
Auto Gain Control
20dB Min.
Output Power(Customers to Choose)
27dBm
Spurious Emission
≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR
≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple
≤ 3dB
VSWR
<=2
I/O Impedance
50 Ω
Noise Figure
≤ 5dB
System Delay
≤ 5μs
RF Connector(Customers to Choose)
SMA (Female)
Operating Temperature
Operation: -10°C ~ +55°C / Storage: -20°C ~ +60°C
Power Supply
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight
≤0.8 kg(Net)

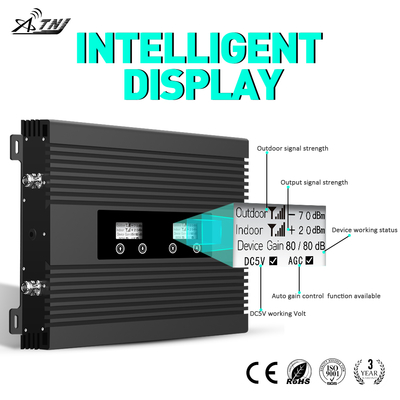

Alarm Monitoring System
Alarm for uplink self-oscillation
Indication LED
Power supply

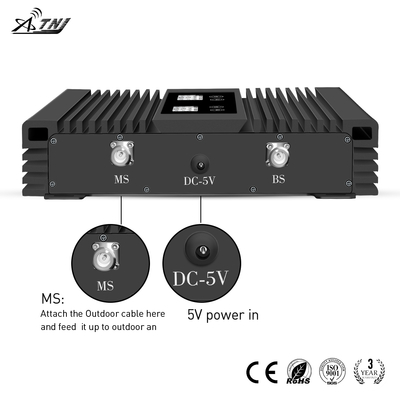

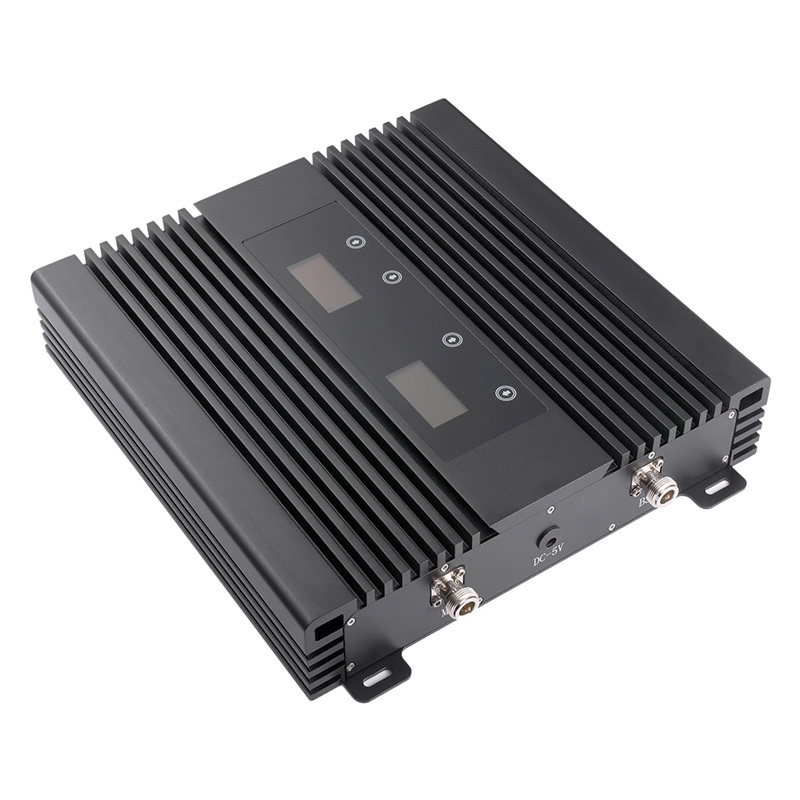

Additional Product Images

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Shenzhen ATNJ Communication Technology Company, located in Shenzhen City, was founded in 2010. It is main focus on Micro power repeater, Antenna Series, Passive Components. With professional engineers, workers and with senior management personnel, the group maintained high-speed development. Meanwhile, the Up-to-date facilities and technology ensure the business long-term development. Nowadays, our hot sale products are GSM900, DCS1800, 3G, CDMA signal repeater. In the following details, the products are showed in different part and patents.

Frequently Asked Questions

1. Are you trading company or manufacturer? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?

Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?

Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?

We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
