VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use

Name: VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: DS-VHF
Price: 800 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: DS-VHF

Trading Properties

Minimum Order Quantity: 5Pcs

Price: USD+800+PCS

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

50OHm SMA Female To N Male

6GHz Signal Booster Connector

Signal Repeater Customized Connector

Specifications

150MHz Frequency Range:	UL151-153MHz,DL161-163MHz	Gain:	UL:80±2 DB,DL:85±2 DB
Output Power:	UL: 20±2 DBm, DL:33±2 DBm	Spurious Emission:	9KHz-1GHz: -36dBm , 1GHz-12.75GHz: 30dBm
EVM:	8%	Noise Figure:	8dB
VSWR:	≤1.8	Power Supply:	AC100/ 240V

Product Description

Digital VHF band selective repeater system

A VHF Digital Repeater is a telecommunications device used to extend the coverage range of Very High Frequency (VHF: 30–300 MHz) digital radio communication systems. Here’s a concise

Core Functions:
1. Signal Reception:
* Receives weak/attenuated digital radio signals (e.g., DMR, dPMR, P25 Phase 2) within the VHF band from user equipment (e.g., handheld radios).
2. Digital Processing:
* Decodes, regenerates, and error-corrects the digital signal (unlike analog repeaters that amplify noise).
3. Signal Retransmission:
* Rebroadcasts the cleaned digital signal at higher power to distant or obstructed areas.

Key Advantages:
* Extended Coverage: Overcomes terrain obstructions (buildings, hills) and VHF range limitations (~5–50 km line-of-sight).
* Signal Integrity: Regeneration prevents noise/error accumulation, maintaining voice/data quality.
* Spectral Efficiency: Supports digital modulation (e.g., TDMA), enabling multiple users on one frequency.

Feature
* Digital filtering supports adjustable bandwidth, each band supports three sub-bands.
* Each sub-band is turned on and off, and gain control is performed separately.
* Donor signal monitoring for easy optimization and troubleshooting
* Intelligent algorithm to prevent UL interference.
* Self-control to minimize interference for new rollout e-Node B.

Technical Specifications:

Items		Specifications
System		VHF
Frequency Range	Uplink(Rx)	150~ 153MHz (At least 5MHz Guard Bandwidth Between Uplink and Downlink)
	Downlink(Tx)	161-163MHz (At least 5MHz Guard Bandwidth Between Uplink and Downlink)
Bandwidth		Customized
Maximum Output Power	Uplink	20±2dBm
	Downlink	33±2dBm
Maximum Gain		80±3dB
AGC Range		≥20dB
Maximum Input power(Non-Destructive)		≤-10dBm
VSWR		≤ 2.4
System Delay		≤ 6 μs
I/O Impedance		50 Ω
Noise Figure		≤ 8dB
Spurious Emission		9kHz~ 1GHz: ≤ -36dBm
		1GHz~ 12.75GHz:≤-30dBm
Third-order Inter-Modulation		≤ -40dBm
RF Connector		2*N-Female
Power Consumption		≤ 30W
Power Supply		Input:AC100~ 240V, 50/60Hz
Dimensions		450335180mm mm
Weight		≤ 12kg
Alarm Monitoring System		Alarm for Uplink Self-Oscillation
Isolation Detection		Isolation Check During Boot Time
Operating Temperature		-10 ~ +50 °C
Application		Indoor or Outdoor(IP65)
Relative Humidity Range		≤95%(Non condensing)
Mounting		Wall Mounting

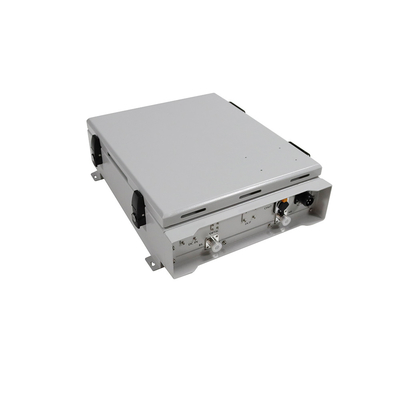

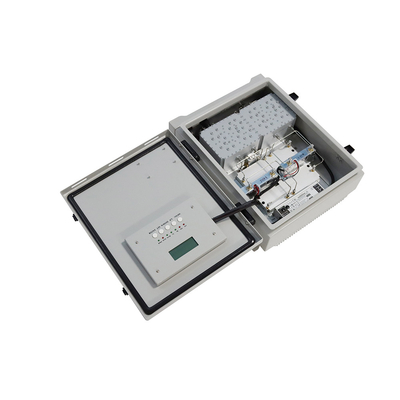

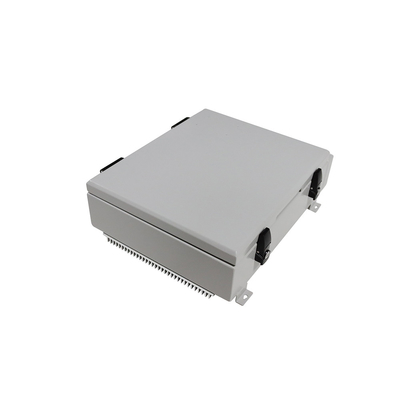

Product Pictures

VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use 0

VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use 1

VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use 5

VHF Digital Repeater system 150MHz digital band selective repeatre system for customized use 6

ATNJ Strength & Service

● Extensive Product Portfolios: We offer a wide range of products, ensuring that you have access to a diverse selection that meets your specific requirements:

● High End Concept: Our relentless pursuit of the latest technology and our unwavering dedication to commercialization and massive production sets us apart.

● Strong R&D Team: We boast a team of talented and highly skilled professionals who consistently push the boundaries of innovation.

● Customized Product Development: With our exceptional ability to develop customized products in the industry, we ensure that the unique needs of our customers are met with the highest precision and efficiency.

● Expert Solutions: A team of experts with 20 to 30 years of experience is committed to providing perfect solutions, specifically tailored to the challenges faced by our valued customers.

● ISO/CE Certified Quality: Our commitment to excellence is underscored by the certification of our products, ensuring superior quality and reliability.

FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service.

We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. What is our Certificates ?
We have CE, ROHS, CCC etc, certificates .

6. Please feel free to contact us if there are any other questions.
