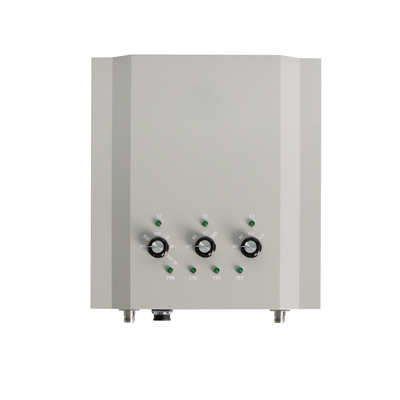

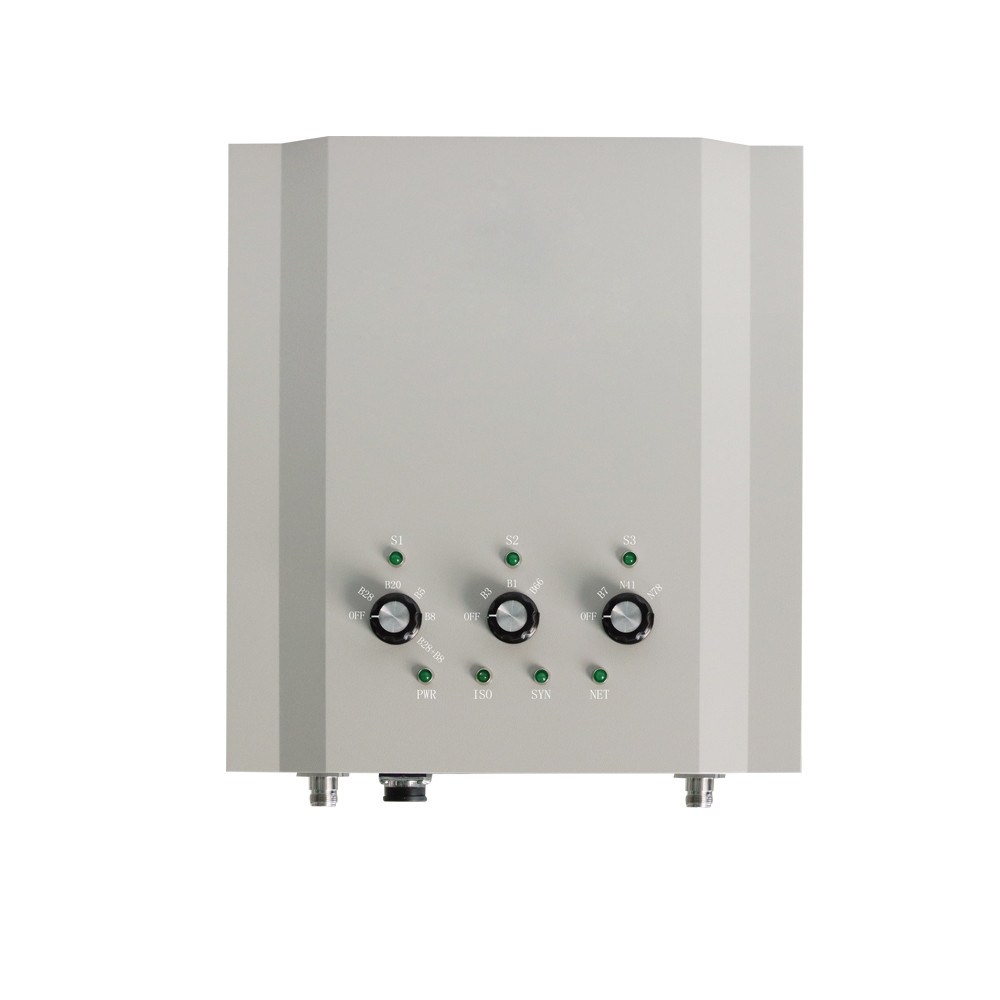

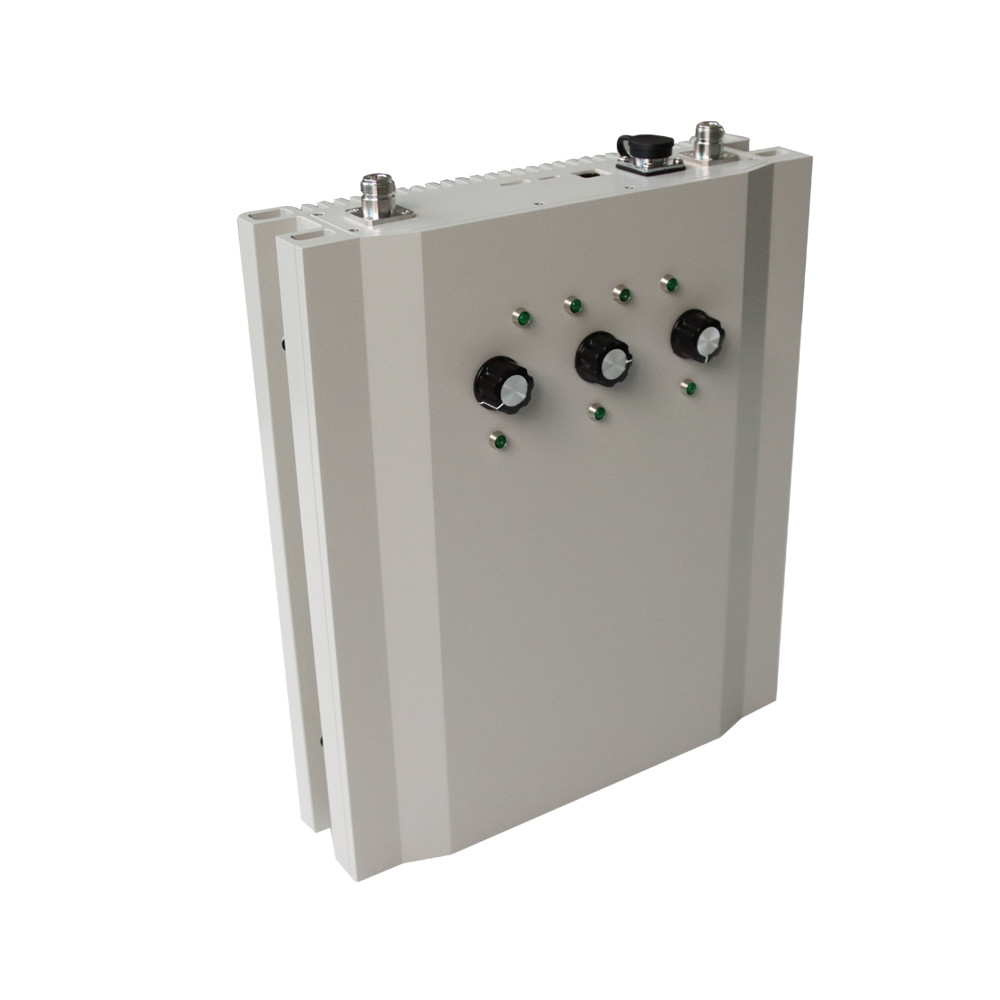

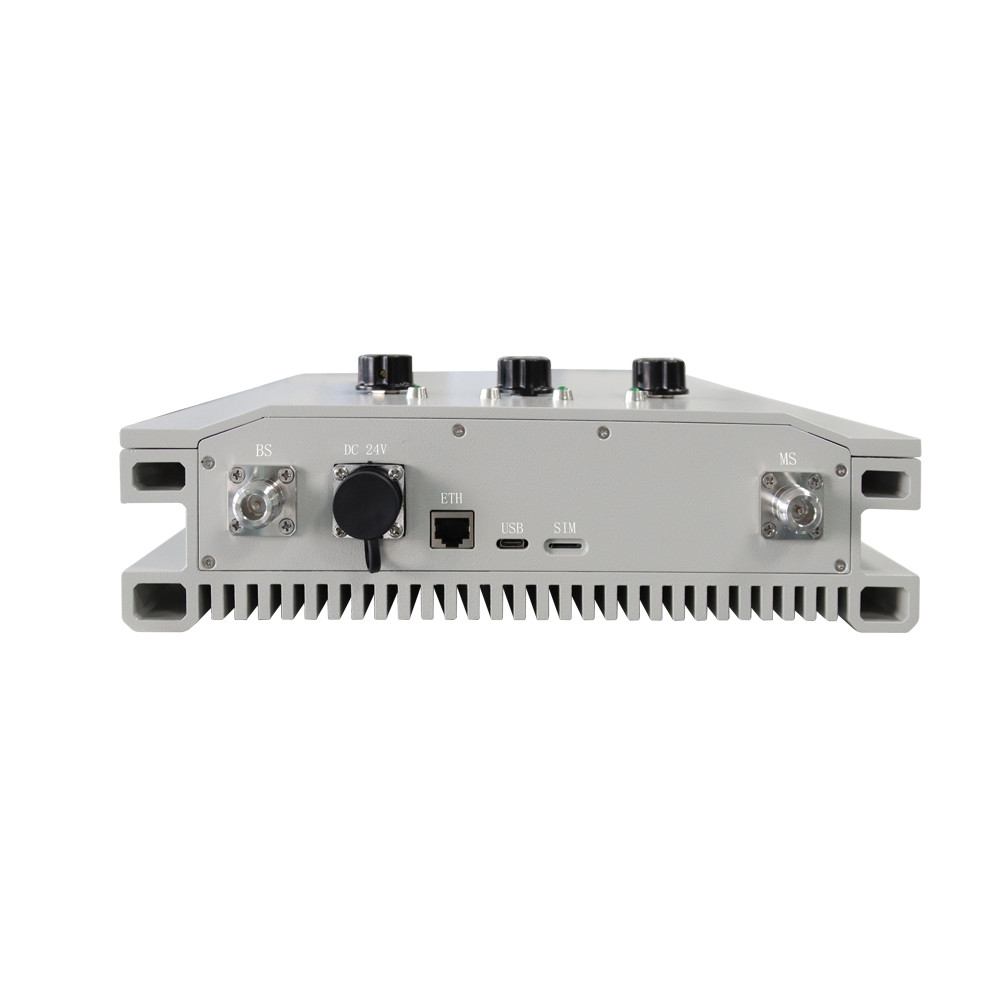

Digital band selective Global Repeater Full Band System

5Pcs
MOQ
USD+1100---1250+kit
Price
Digital band selective Global Repeater Full Band System
Features Gallery Product Description Request A Quote
Features
Specifications
Channel 1: B28+B8/B20/B5
Channel 2: B1/B2/B3/B66
Channel 3: B7/N41/N77&78
Products Type: Digital Global Repeater
Device Gain: 75±3dB
Device Output Power: 20±2dBm
Color For Choice: Grey
RF Connectoer: N/Female
Coverage: 300-500sqm
Single Gross Weight:: 8 Kg
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-GLO
Payment & Shipping Terms
Packaging Details: Standard neutral packing,54x47x24.5cm(1 pcs),
Delivery Time: 45 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 100+unit+per Month.
Product Description

Digital Selection Adjustable Global Repeater Full Band System


General :
The Repeater provides an affordable solution to solve indoor signal coverage problems due to signal fading and attenuation caused by architectural obstacles. And its easy installation and maintenance can help carriers get fast returns.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal, and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. The mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Features:

1. Digital bandwidth-adjustable features allow for seamless adaptability to different bands.
2. Working for all mobile operators worldwide flexibly.
3. Auto isolation detection.
4. Improve any three mobile networks at the same time.
5. Built-in Auto Gain Control (AGC)& Auto Level Control (ALC).
6. Center frequency movable.
7. OMS Lite for remote/local control and monitoring(Optional)



Technical Specifications:

FrequencyS1S2S3
 700+900/800/850MHz1700/1800/1900/2100MHzFDD2600/TDD2600/3500MHz
 (Tunable)(Tunable)(Tunable)
Max. GainUplink70±3dB
 Downlink75±3dB
Manual Gain Control31 dB in step of 1 dB
Automatic Gain Control≧ 20 dB
Gain Flatness (per sub-band)≦ ±3 dB (peak-to-peak)
Max. Input Power Without Damage0 dBm
Output PowerUplink17±2 dBm
 Downlink20±2 dBm
Spurious Emission9KHz-1GHz≦ -36dBm
 1GHz-12.75GHz≦ -30dBm
ACRR±20/100MHz≦-36dBc/30KHz
 ±40/200MHz≦-40dBc/30KHz
EVM≦ 8%
Frequency Stability≦ ±0.01 ppm
Noise Figure≦ 8dB
VSWR≦ 1.8
System Delay≦ 4.5 µs
RF ConnectorN-Female
Impedance50 Ω
Power SupplyAC 100/ 24 V
Power Consumption≦ 120 W
Dimensions350*303*81mm
Weight≦ 8kgs
IP RatingIP40
Operating Temperature-25 °C to 55 °C





Digital band selective Global Repeater Full Band System 0

Digital band selective Global Repeater Full Band System 1

Digital band selective Global Repeater Full Band System 2
Digital band selective Global Repeater Full Band System 3
Digital band selective Global Repeater Full Band System 4
Digital band selective Global Repeater Full Band System 5
Digital band selective Global Repeater Full Band System 6


FAQ


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
