Name: Uplink 65dB Downlink 70dB Indoor Signal Repeater Tri Band Amplifier
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AT-D-GDW
Price: 540.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

900MHz Frequency Range: 890-915MHz/935-960MHz

1800MHz Frequency Range: 1710-1785MHz/1805-1880MHz

2100MHz Frequency Range: 1920-1980MHz/2110-2170MHz

Products Type: Cellular Signal Booster

Bandwidth: Supports 2*20MHz From 0.2 To 20MHz For Each Frequency

Power Supply: 100---265V

Color For Choice: Black, White Or Customized

Highlight:

70dB Indoor Signal Repeater

65dB Indoor Signal Repeater

65dB Indoor Signal Amplifier

Basic Infomation

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AT-D-GDW

Document: AT011-Digital Tril band 900...00.pdf

Payment & Shipping Terms

Packaging Details: Standard neutral packing,48x46x18cm(1 kit),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Gallery

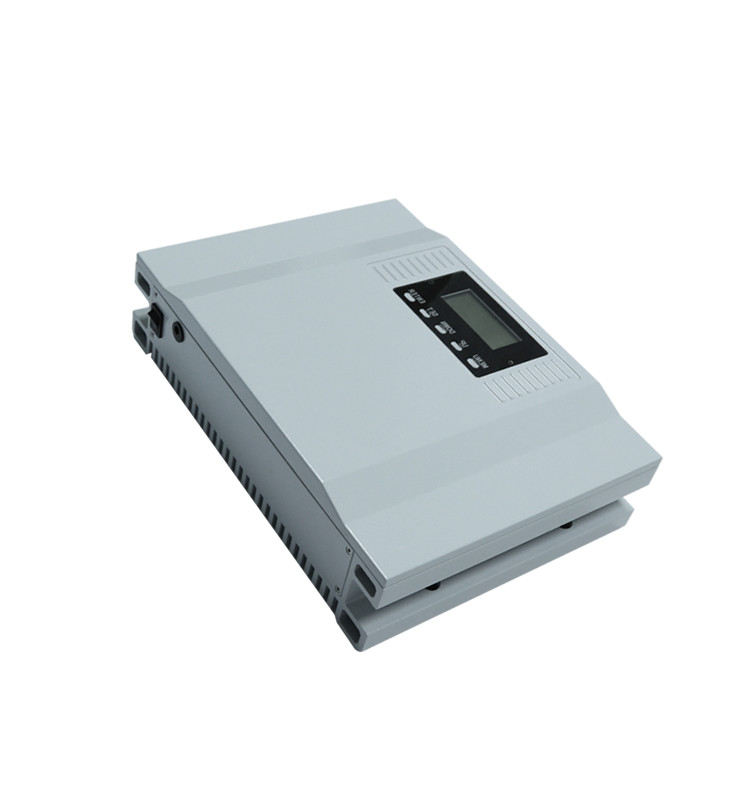

Uplink 65dB Downlink 70dB Indoor Signal Repeater Tri Band Amplifier

Product Description

Uplink 65dB Downlink 70dB Indoor Signal Repeater Tri Band Amplifier

Digital Tri Band 900 1800 2100MHz Band Selected Cellular Signal Repeater Amplifier

General :

The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Specification

SPECIFICATIONS		PARAMETERS
Frequency Range		GSM900	890MHz - 915MHz/ 935MHz - 960MHz
		LTE1800	1710MHz - 1785MHz/ 1805MHz - 1880MHz
		UMTS2100<E2100	1920MHz - 1980MHz/ 2110MHz - 2170MHz
Band Width		GSM900	Supports 1*20MHz from 0.2 to 20MHz
		LTE1800	Supports 1*20MHz from 0.2 to 20MHz
		UMTS2100<E2100	Supports 1*20MHz from 0.2 to 20MHz
Gain		Uplink 65dB
		Downlink 70dB
Automatic Gain Control		31dB
MGC (Step Attenuation)		31dB@ 1dB /Step
Output Power		Uplink 13dBm
		Downlink 20dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤ - 36dBm
	150 kHz - 30 MHz/10kHz	≤ - 36dBm
	30 MHz - 1 GHz/100kHz	≤ - 36dBm
	1 GHz- 12.75 GHz/1MHz	≤ - 30dBm
ACPR		Uplink Fully comply with 3GPP 36.106
		Downlink Fully comply with 3GPP 36.106
Unwanted emissions		Fully comply with 3GPP 36.106
VSWR		≤ 2
Ripple	GSM	≤ 3dB
	L1800	≤ 2dB / 3.84MHz
	UMTS	≤ 3dB @ BW Config
Noise Figure		≤ 8dB
Delay		≤ 3.5 us
I/O Impedance		50Q
RF Connector(Customers to Choose)		N - Type (Female)
Operating Temperature		-10°~+55°
Power Supply		100 - 265V
Power consumption		300W
Environment Conditions		IP55
Humidity		≤ 90%
Weight		5kg
Size		416x268x71 mm

Further detail pls click here for downloading the products specification:

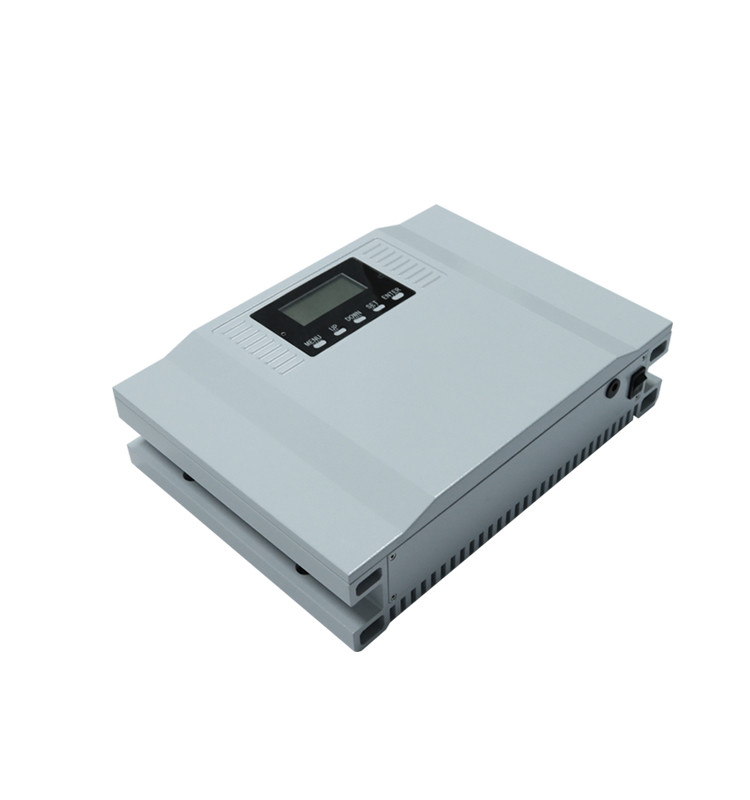

Uplink 65dB Downlink 70dB Indoor Signal Repeater Tri Band Amplifier 0

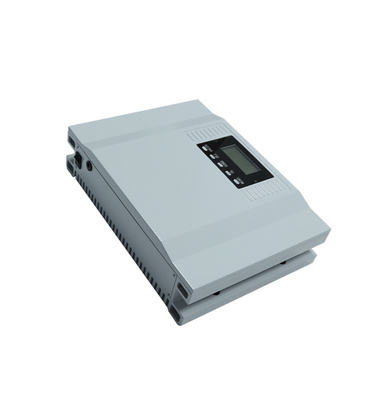

Uplink 65dB Downlink 70dB Indoor Signal Repeater Tri Band Amplifier 1

FAQ

Q1 : Are you trading company or manufacturer ?

A1 : We are factory, with trading service.

Q2 : Could I use our own logo and label?

A2 : We provide OEM/OEM service.

Q3 : Can I have a sample order? What is your MOQ?
A3 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

Q4 : What can I get the price?
A4 : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q5 : What about the lead time for the mass production?
A5 : Honestly, it depends on the order quantity and the season you place the order.

Q6 : What is your warranty time?
A6 : We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
