| Brand Name: | ATNJ |
| Model Number: | JS-DBEGSM900/2100/P |
| MOQ: | 5Pcs |
| Price: | USD+70---85+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(54x49x33cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
Dual Band 70dB Gain 3G Mobile Booster Cellular Cell Range Extender
70dB Gain Cellular Dual Band Repeater 2G 3G 4G Signal Booster E900/2100MHz Amplifier
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1920-1980MHz |
|
Downlink |
935-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
25MHz & 60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+2100MHz 006 mobile signal repeater.pdf
Product Description
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Note : Please be sure the place where you are going to install is EGSM900MHz WCDMA 2100MHz And make sure you can get at least 2 bars 2G and 3G/4G signal of outdoor before you buy, otherwise this product can’t help you. It needs outdoor good signal to improve your indoor signal.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.

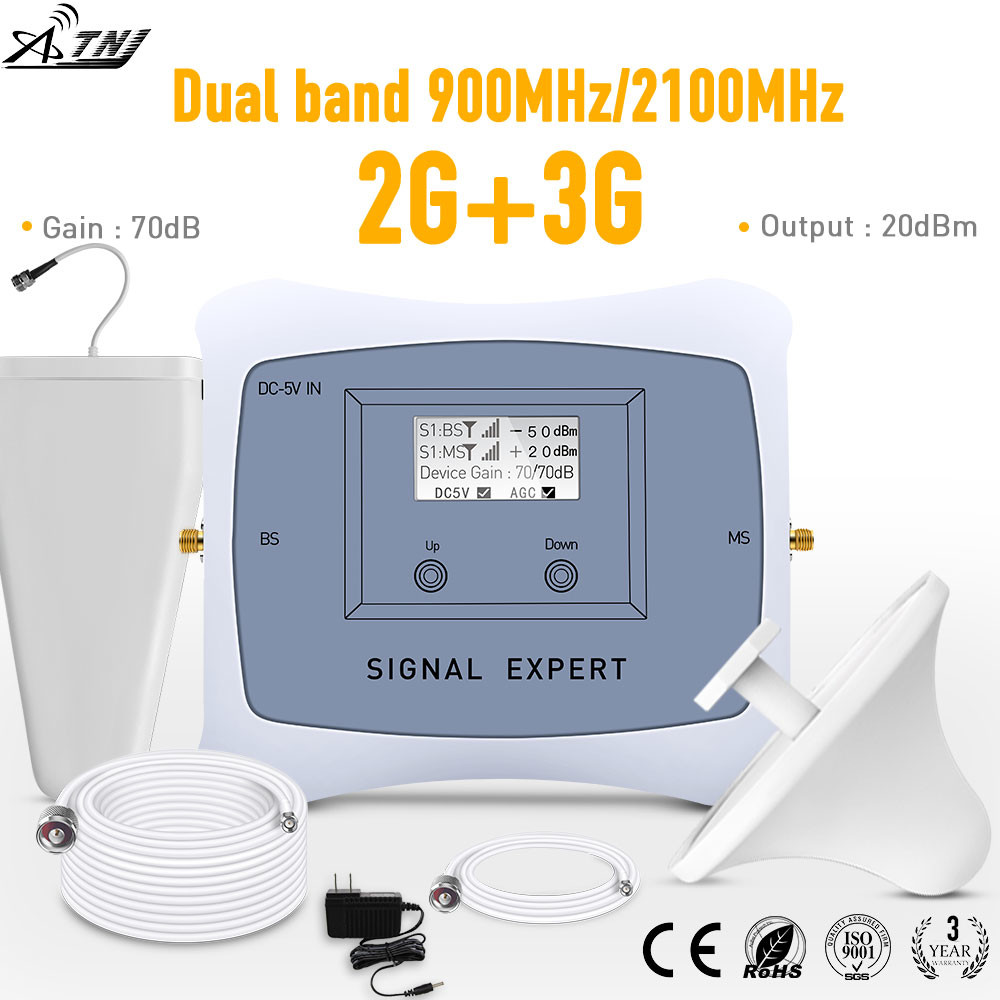

Packaging Including:
1. Dual Band Booster
2. 20 meters cable
3. 5 meters cable
4. Indoor Ceiling antenna
5. Outdoor Log-periodic antenna
6. Power adapter
Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.
FAQ:
1.
Q: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
2.
Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.
Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
4.
Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
5.
Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
|
