3G Signal Booster
>

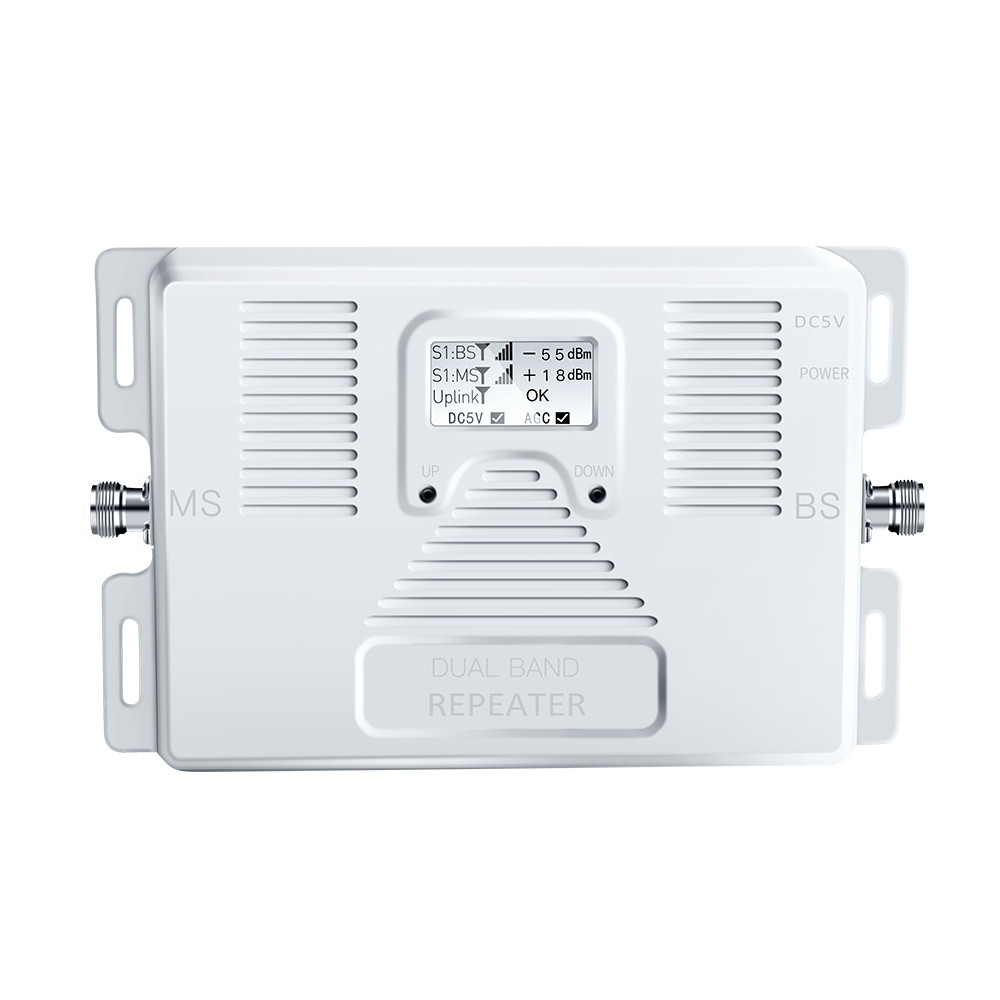

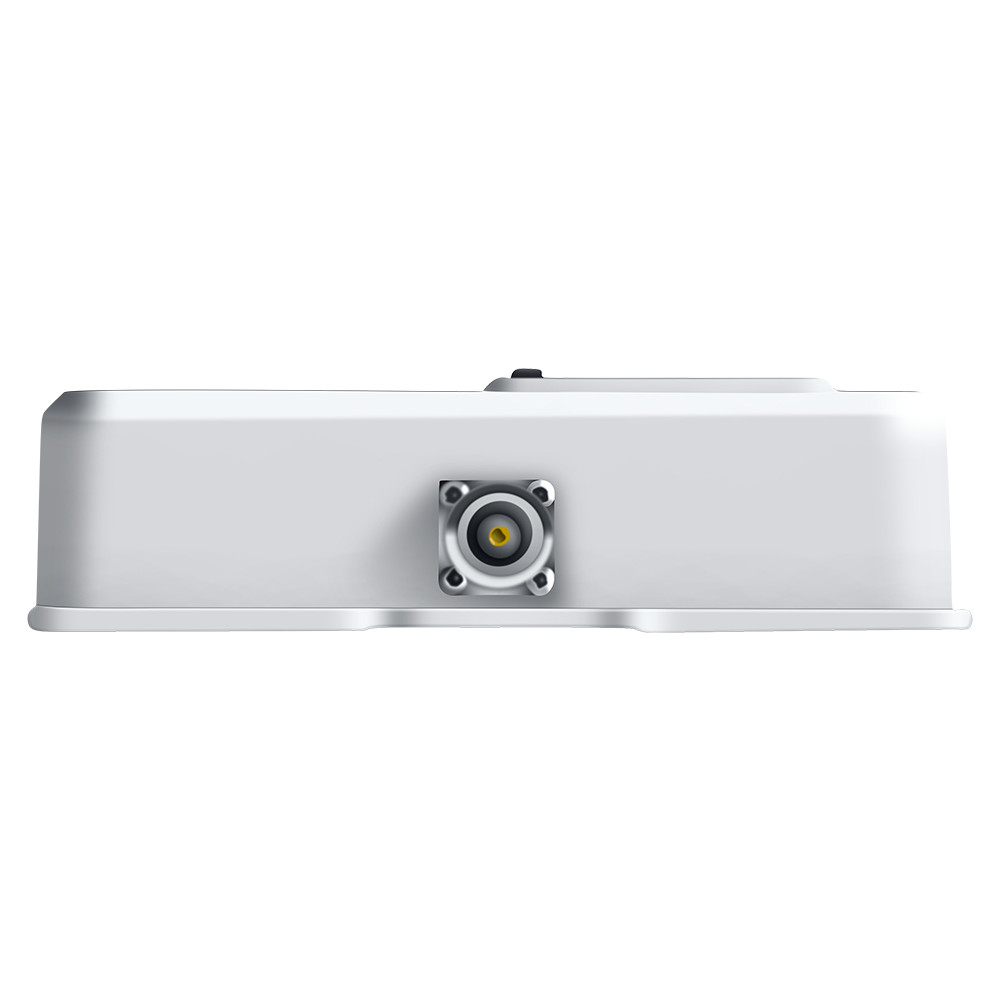

2G 3G 4G Cell Phone Booster Amplifier Dual Band 850MHz 1800MHz

2G 3G 4G Cell Phone Booster Amplifier Dual Band 850MHz 1800MHz

Brand Name: ATNJ
Model Number: JS-DB850/1800
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Color:
Gold Or Black Or White Or Customized
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
MGC:
Done
Weight:
4kg
Products Type:
Digital Repeater, Mobile Booster
Supply Ability:
1000+unit+per day.
High Light:

850MHz 3G Cell Phone Booster

,

1800MHz 3G Amplifier Booster

,

850MHz 3G Network Booster

Product Description

2G 3G 4G Cell Phone Booster Amplifier Dual Band 850MHz 1800MHz



850/1800MHz 2G 3G 4G Signal Booster Dual Band Cell Phone Network Repeater Amplifier



General
The 850/1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1710-1785MHz

Downlink

869-894MHz, 1805-1880MHz

Frequency Bandwidth

25MHz&75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1800MHz A032 mobile signal repeater.pdf



Selling Point



LCD Display.

Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.



Sleep mode.

In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.



Automatic adjustment of operation.

The signal amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.



Compact size and high-tech design.

The signal amplifier has a small size, light weight, advanced design and intelligent LCD display. It fits perfectly into any interior.







Product Description







With ALC AGC Function

Can control gain automatically. Avoid base station interference



Network support : CDMA 2/3G + DCS 2/4G


Gain : 70dB
Power Supply : AC110V~220V;DC+5V/2A
Connector Type : N-female connector





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 0Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 1Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 2Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 3Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 4



Accessories



a. One dual band signal booster;



b. One indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 5





Installation Approaches



1. Fix up outdoor antenna reception on housetop and point to signal tower;



2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;



3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;



4. Plug power adaptor into AC power socket and finish installation.





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 6

Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 7

Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 8





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 9Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 10Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 11





Warranty



● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.



● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.







FAQ:



1. Q: Why choose us for cooperation?

A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.



2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?

A: The mobile signal repeater cannot produce a signal, only amplify a weak one.



3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.



4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.



5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.





6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
