Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: A021-1800/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+86---110+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1800MHz : 1710-1710MHz/1805-1880MHz , 2100MHz :1920-1980MHz/ 2110-2170MHz |
Device Gain: |
70dB |
Device Output Power: |
20dBm |
Color: |
Grey And Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Certification:: |
ISO, RoHS, CE, CCC |
Products Type: |
Amplificador Celular,repetidor |
Frequency Range: |
1800MHz : 1710-1710MHz/1805-1880MHz , 2100MHz :1920-1980MHz/ 2110-2170MHz |
Device Gain: |
70dB |
Device Output Power: |
20dBm |
Color: |
Grey And Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
Certification:: |
ISO, RoHS, CE, CCC |
Products Type: |
Amplificador Celular,repetidor |

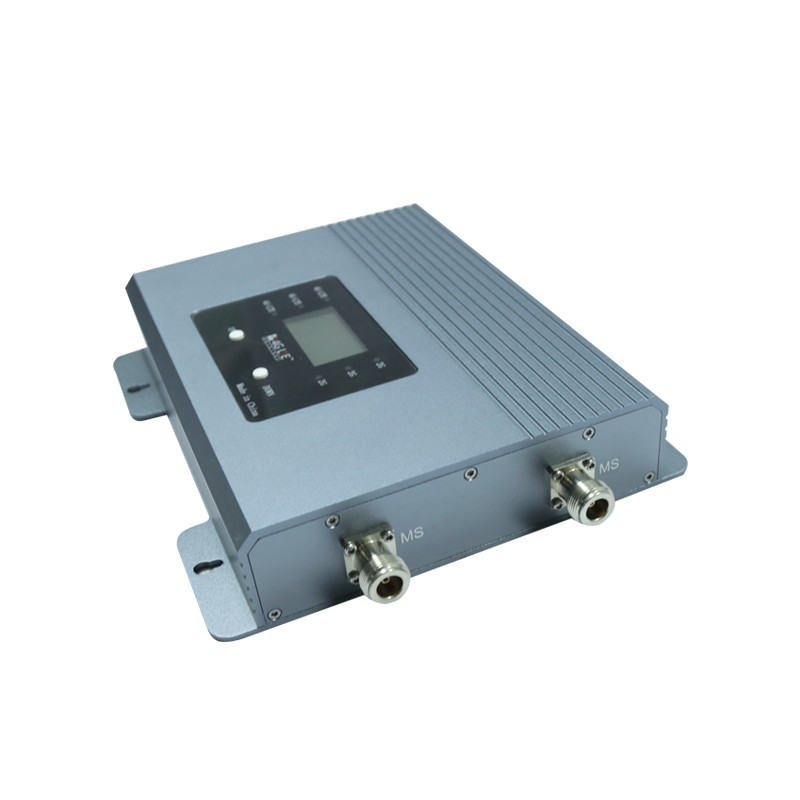

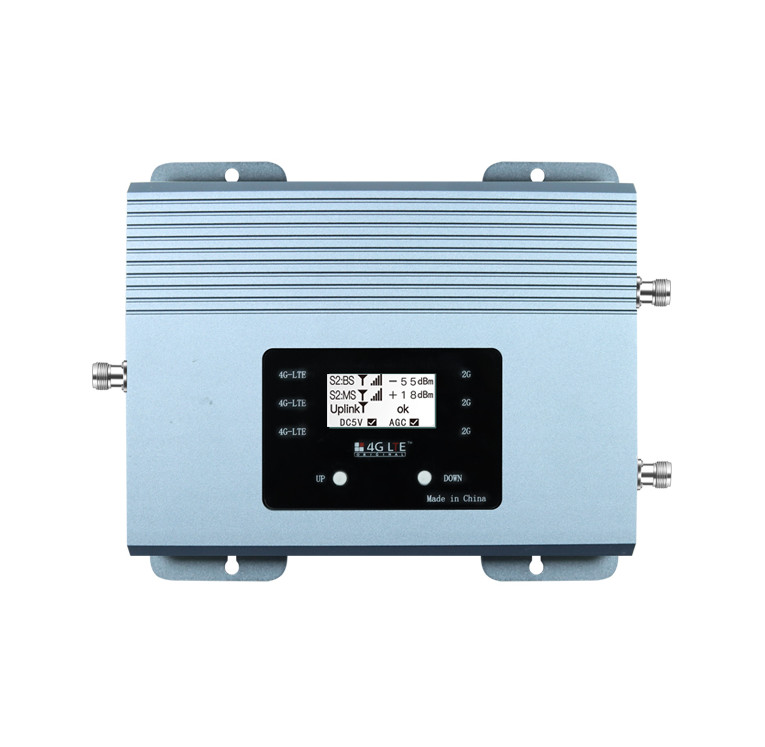

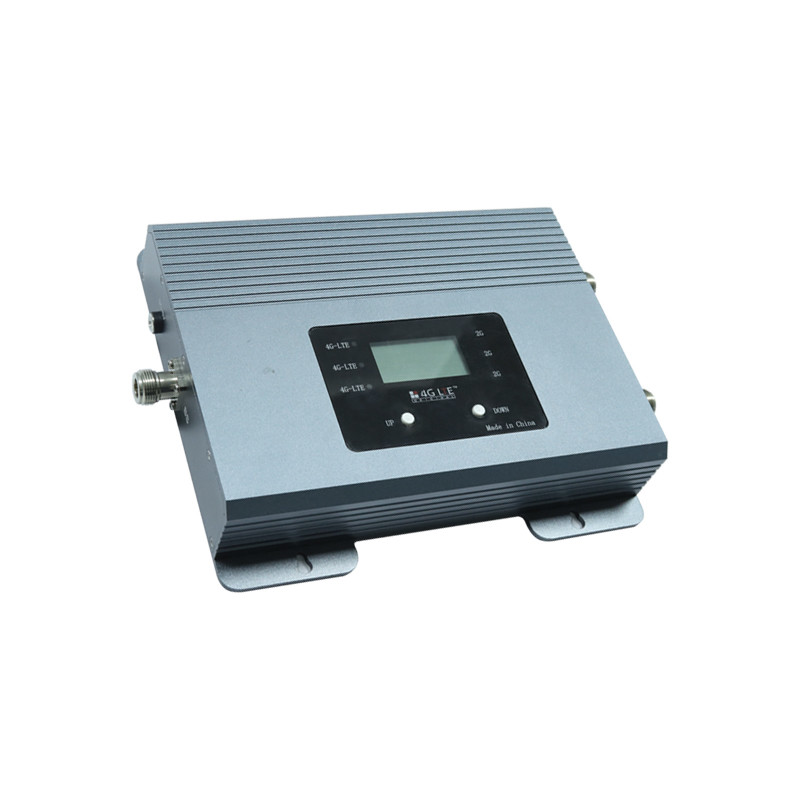

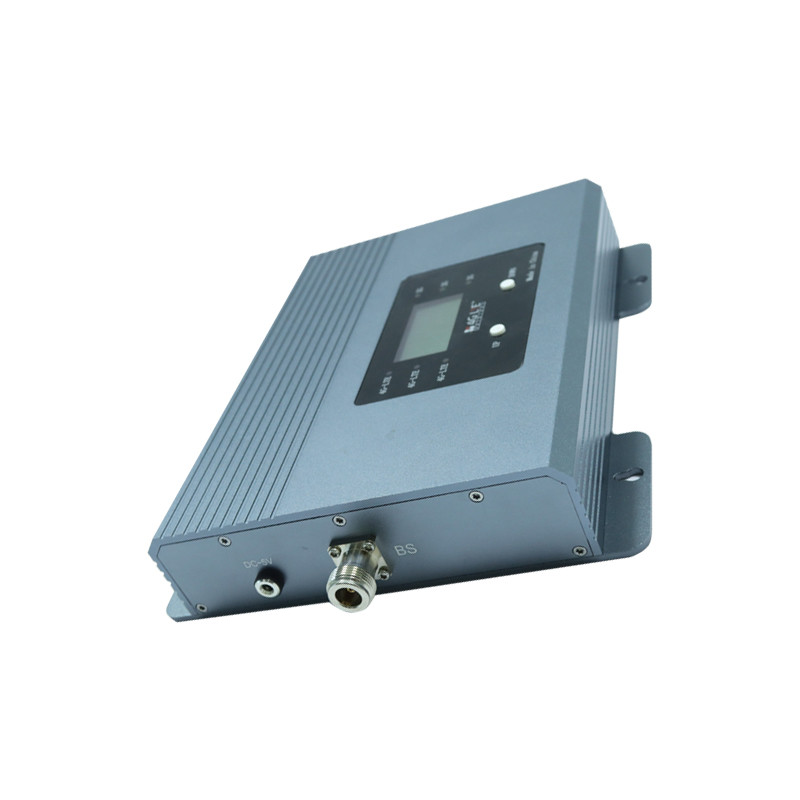

Dual Band 1800MHz 2100MHz Mobile Network Booster Output Power 20dBm
Customized Dual Output 1800+2100MHz mobile signal booster 2G 3G 4G cellular amplifier
Description:
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz,1920-1980MHz |
|
Downlink |
1805-1880MHz,2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz&60MHz |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Certification: |
Signal Repeater |
|
Further detail pls click here for downloading the products specification:
1800+2100MHz A021 Mobile Signal Repeater.docx.pdf
FAQ:
We are manufacturer, and have our own factory.
FAQ:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
|
Sample |
3-5 business days |
|
<20 pcs |
7-15 days |
|
20-200 pcs |
15-24 days |
|
>200 pcs |
Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
|
USA/Canada/Europe/Asia |
3-5 days |
|
Middle East/Latin American |
5-7 days |
|
African |
3-7 days |
Q6.Payment Method
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q7. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
Q8. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Please feel free to contact us if any other questions.
