Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-900/1800
Document: 5W 900+1800MHz Dual band Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1100--1350+kit
Packaging Details: Standard neutral packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 4G, Voice |
Products Type: |
Broadband Satellite Internet Connection, 4g Signal Amplifier |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 4G, Voice |
Products Type: |
Broadband Satellite Internet Connection, 4g Signal Amplifier |

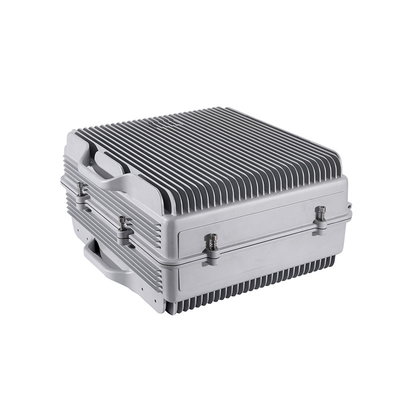

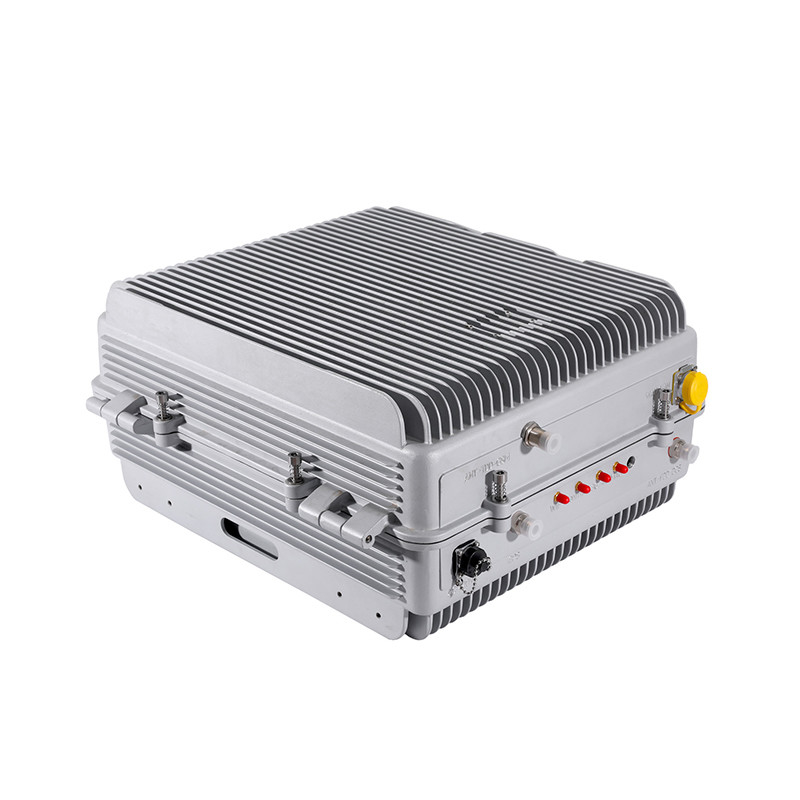

90dB Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm
90dB Gain 900 / 1800MHz Mobile Signal Repeater 2G 4G Dual Band Booster Amplifier
Model No : AT-MS-900/1800
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 3) 1800MHz -- Uplink frequency : 1710-1785MHz/Downlink frequency : 1805-1880MHz
(Band 8) 900MHz -- Uplink frequency : 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G 4G Voice
Gain : 80dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
1. High output 5W, stable fast speed signal, perfect for large area or high building signal improving
(can reduce device quantity, and for easy adjustment and maintain )
2. Pretty easy installation
3. Die cast aluminum alloy out shell for efficient heat dissipation, waterproof, dust proof, IP55 level;
4. Upgrade intelligent WTR chip integrated circuit, reduce the attenuation, with higher load, faster speed
5. Free settings depends on environment, Max 6000sqm
| Single Band Repeater with AGC/MGC | ||||
| Device Model | AT-MS-900/1800 | |||
| Frenquecy Range 1 | UplinK: 890-915MHz Downlink: 935-960MHz | |||
| Frenquecy Range 2 | UplinK: 1710-1785MHz Downlink: 1805-1880MHz | |||
| Working System | Band3 1800MHz; Band8 900MHz | |||
| Gain | 90dB | |||
| Device Output Power | 33dBm | |||
| Bandwidth | Wide Range | |||
| Ripple in Band | ≤4dB | |||
| Noise Figure @ Max.Gain | ≤6dB | |||
| V.S.W.R | ≤2dB | |||
| MTBF | >50000Hours | |||
| Power Supply | AC110V～220V;DC+24V5A | |||
| Power Comsumption | <20W | |||
| Impedance Matching | 50ohm | |||
| Mechanical Specification | ||||
| RF Connector | N/F | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 170*130*26(mm) | |||
| Net Weight | 0.35KG | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP55X | |||
| Origin | Shenzhen | |||
| Operating Temperature | -10°C~55°C | |||
Further detail pls click here for downloading the products specification:
5W 900+1800 Dual Band RF Repeater.pdf
Selling Point
1. Smart LCD : Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS certification,etc.
Q2: Can you give me a discount?
A: Please discuss with our sales.
Q3: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support .
Q5: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
