Name: ATNJ Customized Wideband 20-700MHz Gan Amplifier Ultra Band High Power Gan Amplifier for 2G 3G 4G 5G
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AT-20-700-20W
Price: 1,325.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Series: 20Watt

OperatingFrequency: 20-700MHz

Pout: ≥43dBm@Pin=0dBm

Gain: ≥50dB

Gain Flatness: ≤±2dB

Pin: ≤0 DBm

Spur: ≤-60 DBc

Weight: ≤2.2kg

Basic Infomation

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AT-20-700-20W

Payment & Shipping Terms

Packaging Details: Standard neutral packing,54x47x24.5cm(1 pcs),

Delivery Time: 25 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 100+unit+per Month.

Gallery

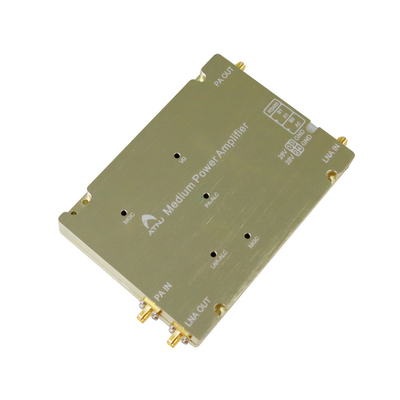

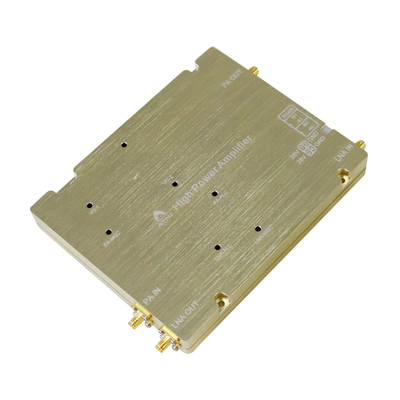

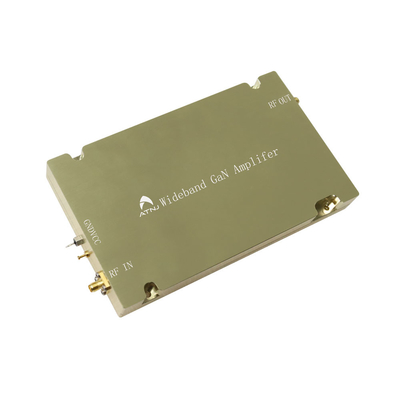

ATNJ Customized Wideband 20-700MHz Gan Amplifier Ultra Band High Power Gan Amplifier for 2G 3G 4G 5G

Product Description

ATNJ Customized Wideband 20-700MHz Gan Amplifier Ultra Band High Power Gan Amplifier for 2G 3G 4G 5G

UWB PA Wide Band 20--700MHz CW Solid State Power Amplifier

Product Instruction:

A wideband power amplifier (UWPA) is a power amplifier with ultra wide bandwidth designed to amplify signals across a wide range of frequencies while maintaining high efficiency, linearity, and low distortion. It was specifically designed for RF jamming, but has also been used for a range of science, industrial and communication applications. With wideband instantaneous power in a compact outline suitable for installation in fixed, mobile and portable systems, these amplifiers utilise the very latest GaN semiconductor devices to achieve unrivalled performance. It is used in OEM radio system integration.

It widely used on different RF application:

Wireless communication systems (base stations, repeaters).Radar and satellite systems. Test equipment (signal generators, spectrum analyzers). Broadband RF systems (CATV,SDR),etc. We undertake different customized requirement for it like:10-700MHz,700MHz-4GHz ,4GHz-8GHz etc.

Technical Specifications:

Parameter	Index
TechniquePart
OperatingFrequency	20-700MHz
Pout	≥43dBm@Pin=0dBm
Gain	≥50dB
Gain Flatness	≤±2dB
Pin	≤0 dBm
Spur	≤-60 dBc
Harmonic suppression	≤-6 dBc
InputVSWR	≤2.0:1
OutputVSWR	≤2.5:1
OperatingVoltage	28V DC
Powerconsumption	≤150W
WorkingTemp	-10 ~ +40ºC
StorageTemp	-55 ~ +70ºC
Weight	≤2.2kg
Connector	SMA-KF / N-KF

ATNJ Customized Wideband 20-700MHz Gan Amplifier Ultra Band High Power Gan Amplifier for 2G 3G 4G 5G 0

Feature

Ultra-Wide Frequency Coverage
UWB PAs operate across a broad spectrum (e.g., hundreds of MHz to tens of GHz), enabling support for multiple frequency bands (sub-6 GHz, mmWave) within a single device, eliminating the need for multiple narrowband amplifiers.

Multi-Standard Compatibility
They seamlessly support diverse communication protocols (5G NR, Wi-Fi 6/7, Bluetooth) and legacy systems, making them ideal for multi-mode devices and software-defined radios (SDRs).

Reduced Hardware Complexity
By consolidating multiple narrowband PAs into one UWB PA, system design is simplified, lowering component count, cost, and maintenance overhead.

Enhanced Flexibility for Emerging Technologies
Future-proofed to accommodate evolving standards (e.g., 6G, IoT expansions) and dynamic spectrum access, ensuring adaptability to new use cases.

High Data Rate and Low Latency
Enables wideband signal transmission, critical for high-speed applications (e.g., AR/VR, 4K streaming) by leveraging broader channel bandwidths and minimizing switching delays.

Improved Power Efficiency
Advanced architectures (e.g., envelope tracking, Doherty) maintain energy efficiency across wide bandwidths, optimizing battery life in portable devices and reducing thermal loads.

Compact and Lightweight
Design Integration of multi-band functionality into a single PA reduces physical footprint, crucial for space-constrained applications like drones, satellites, and wearables.

Simplified Beamforming and MIMO Support
Facilitates phased-array and massive MIMO systems in 5G/6G by handling wideband signals across multiple antenna elements with uniform performance.

FAQ

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
