Home /Products/Mobile Signal Repeater/5Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm

5Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm

5Pcs
MOQ
USD+1100--1350+kit
Price
5Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm
Features Gallery Product Description Request A Quote
Features
Specifications
900MHz Frequency Range: 890-915MHz / 935-960MHz
1800MHz Frequency Range: 1710-1785MHz / 1805-1880MHz
Material: Zinc Alloy ,Plastic
Booster Bandwidth: Wide Range
Support Network: 2G, 4G, Voice
Products Type: Broadband Satellite Internet Connection, 4g Signal Amplifier
Highlight:

90dB Gain Mobile Range Extender

,

6000sqm Mobile Range Extender

,

90dB Mobile Phone Booster
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-900/1800
Document: 5W 900+1800MHz Dual band Re...er.pdf
Payment & Shipping Terms
Packaging Details: Standard neutral packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

 90dB Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm



90dB Gain 900 / 1800MHz Mobile Signal Repeater 2G 4G Dual Band Booster Amplifier



Product Detail:


Model No : AT-MS-900/1800



With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 3) 1800MHz -- Uplink frequency : 1710-1785MHz/Downlink frequency : 1805-1880MHz

(Band 8) 900MHz -- Uplink frequency : 890-915MHz/Downlink frequency : 935-960MHz


Network support : 2G 4G Voice


Gain : 80dB



Output power : 5watt


Power Supply : AC110V～220V; DC+24V 5A


Connector Type : N-F



Wide Range .

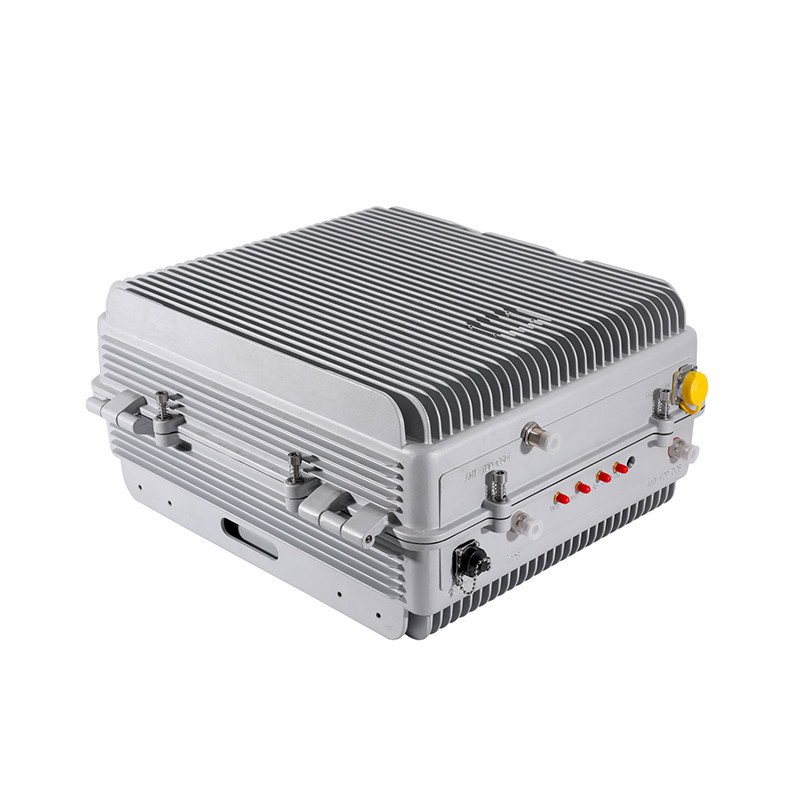

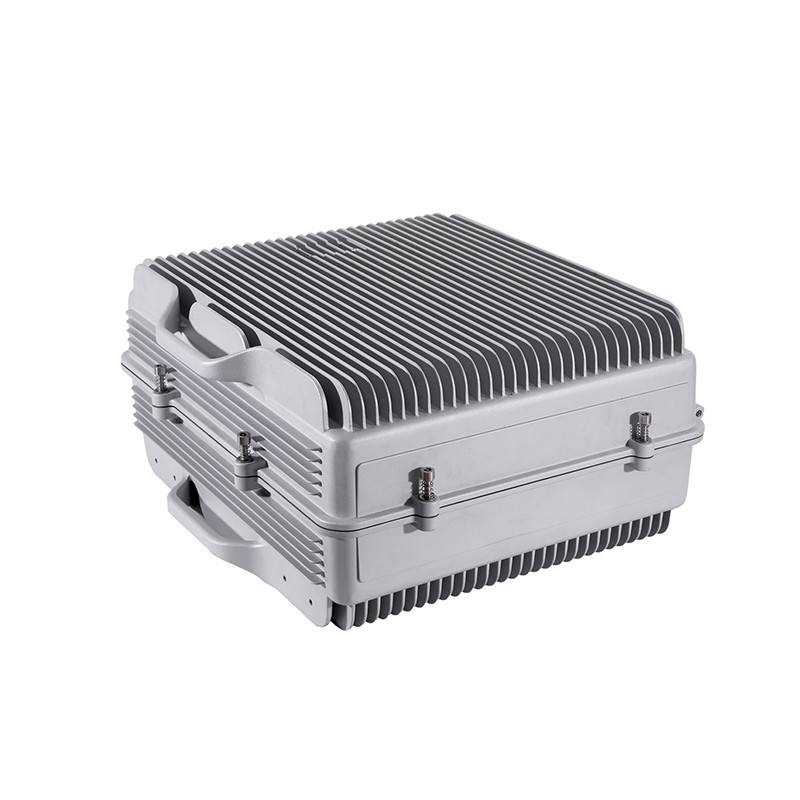

Product Pictures



1. High output 5W, stable fast speed signal, perfect for large area or high building signal improving
(can reduce device quantity, and for easy adjustment and maintain )


2. Pretty easy installation


3. Die cast aluminum alloy out shell for efficient heat dissipation, waterproof, dust proof, IP55 level;


4. Upgrade intelligent WTR chip integrated circuit, reduce the attenuation, with higher load, faster speed


5. Free settings depends on environment, Max 6000sqm







Single Band Repeater with AGC/MGC
Device Model AT-MS-900/1800
Frenquecy Range 1 UplinK: 890-915MHz Downlink: 935-960MHz
Frenquecy Range 2 UplinK: 1710-1785MHz Downlink: 1805-1880MHz
Working System Band3 1800MHz; Band8 900MHz
Gain 90dB
Device Output Power 33dBm
Bandwidth Wide Range
Ripple in Band ≤4dB
Noise Figure @ Max.Gain ≤6dB
V.S.W.R ≤2dB
MTBF >50000Hours
Power Supply AC110V～220V;DC+24V5A
Power Comsumption <20W
Impedance Matching 50ohm
Mechanical Specification
RF Connector N/F
Cooling Heatsink Convection Cooling
Dimension 170*130*26(mm)
Net Weight 0.35KG
Installation Type Wall Installation or Desk
Environment Conditions IP55X
Origin Shenzhen
Operating Temperature -10°C~55°C

Further detail pls click here for downloading the products specification:

5W 900+1800 Dual Band RF Repeater.pdf



Selling Point



1. Smart LCD : Show the real-time signal strength.



2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.



3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.



4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.



5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.



Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations


Output Power : 5W/10W/20W

Power Supply : AC adapter

Size : 308*219* 135mm
Weight : 7.0kg



5Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm 05Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm 15Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm 2



5Watt 900Mhz 1800Mhz Gain Mobile Range Extender 2G 4G Wide Range Max 6000sqm 3



FAQ:



Q1: Do you have CE or any other certification?

A: Yes,we CE, , ROHS certification,etc.



Q2: Can you give me a discount?

A: Please discuss with our sales.



Q3: How about gain and output power of your device?

A: Different models, gain and output power are different,for more details, please contact us.



Q4: How long is warranty period?

A: The warranty is 12 months. And we offer 7*24 technical support .



Q5: How many square meters can be covered?

A: For different models, the covered square meters are different.



Q6: Can I use your device in suburbs or remote areas?

A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
