| Brand Name: | ATNJ |
| Model Number: | CP-5 |
| MOQ: | 5Pcs |
| Price: | USD+7--10+unit |
| Packaging Details: | Standard neutral packing，52x21x16cm(1kit), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

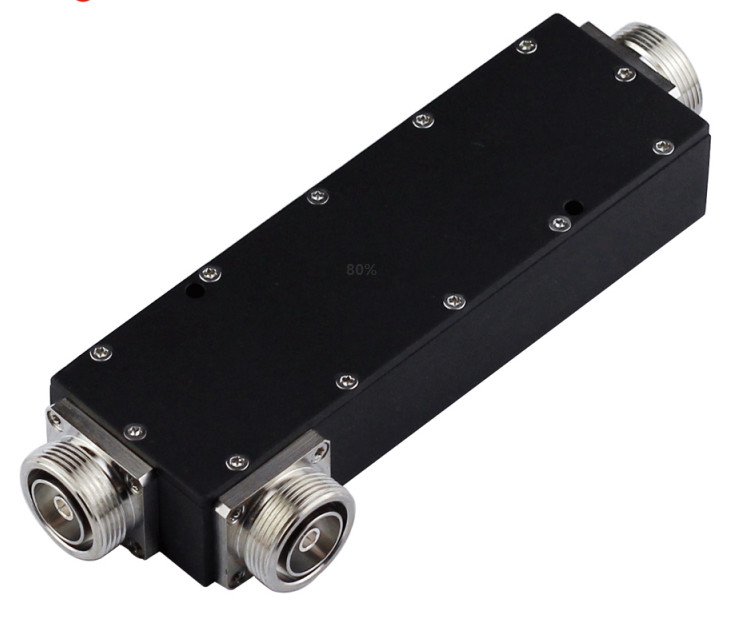

RF 500W Signal Booster Accessories 5dB Directional Coupler N Female
Directional couplers are most frequently constructed from two coupled transmission lines set close enough together such that energy passing through one is coupled to the other. This technique is favoured at the microwave frequencies where transmission line designs are commonly used to implement many circuit elements. However, lumped component devices are also possible at lower frequencies, such as the audio frequencies encountered in telephony. Also at microwave frequencies, particularly the higher bands, waveguide designs can be used. Many of these waveguide couplers correspond to one of the conducting transmission line designs, but there are also types that are unique to waveguide.
|
Frequency
|
698 - 2700MHz
|
|
Model No.
|
CP - 5
|
|
Attenuation
|
± 1
|
|
Insertion Loss
|
< 2.15
|
|
VSWR
|
< 1.25
|
|
PIM (IM3)
|
< -150dBc @ + 43dBm*2
|
|
Isolation
|
> 25
|
|
Power handling
|
500 W
|
|
Impedance
|
50 Ohm
|
|
Operating temperature
|
- 40°C to + 75°C
|
|
Storage temperature
|
- 40°C to + 85°C
|
|
Color
|
Black / gray
|
|
Relative Humidity
|
5% - 95%
|
|
Applications
|
IP65
|
|
Connector type
|
N - Female
|
|
Weight
|
0.68Kg
|
|
Dimension
|
200.5*68.8*32mm
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ
Q1 : What're the main products of ATNJ?
A1 : ATNJ specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
Q2 : Are you trading company or manufacturer ? Could I use our own logo and label?
A2 : We are factory, with trading service. We provide OEM/OEM service.
Q3 : Can you accept the small order?
A3 : Yes, small order is available in our company.
Q4 : Do you have OEM&ODM service?
A4 : Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q5 : How can I protect my transaction with your company?
A5 : The transaction is secured by Alibaba Trade Assurance service who provides you with Payment, Product-quality and Shipping protection. Your order will be protected up to 30 days after you receive the goods. It supports payment by below options:
|
