Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+5--8+unit
Packaging Details: Standard neutral packing，52x21x16cm(1kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Model Number: |
4-Way Splitter |
Frequency Band: |
698 - 2700MHz |
Connector: |
N/Female |
PIM (IM3): |
< -155dBc @+43dBm*2 |
Insertion Loss: |
< 6.4dB |
Power Rating: |
300W |
Operating Temperature: |
- 25.9 To +70.9℃ |
Applied Environment: |
Indoor / Outdoor |
Warranty: |
1 Year |
Products Type: |
Cellular Signal Booster, |
Model Number: |
4-Way Splitter |
Frequency Band: |
698 - 2700MHz |
Connector: |
N/Female |
PIM (IM3): |
< -155dBc @+43dBm*2 |
Insertion Loss: |
< 6.4dB |
Power Rating: |
300W |
Operating Temperature: |
- 25.9 To +70.9℃ |
Applied Environment: |
Indoor / Outdoor |
Warranty: |
1 Year |
Products Type: |
Cellular Signal Booster, |

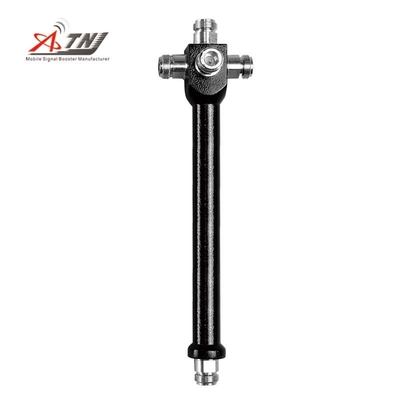

RF 698MHz 2700MHz 4-Way Power Splitter N Female Indoor Outdoor Use
RF 4-way Power Splitter is an equal power-distribution device and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into four signal outputs with the same amplitude.
|
Product Type
|
4 - way Splitter
|
|
Model Number
|
ST - 4
|
|
Frequency Range
|
698 – 2700MHz
|
|
Insertion Loss
|
< 6.4dB
|
|
VSWR
|
< 1.3
|
|
PIM (IM3)
|
< -155dBc @+43dBm*2
|
|
Power Handling
|
300W
|
|
Impedance
|
50Ω
|
|
Connector Type
|
N - Female
|
|
Applied Environment
|
Indoor / Outdoor
|
|
Relative Humidity
|
5 to 95%
|
|
Operating Temperature
|
- 25 to +70℃
|
|
Protection class
|
IP65
|
|
Material
|
Cavity : Aluminum ; Connector : Copper
|
|
Processing
|
Silver plated inner conductor
|
|
Dimension
|
234x60x43mm
|
|
Net Weight
|
0.4Kg
|
Further detail pls click here for downloading the products specification:
FAQ:
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?
A1 : We are factory, with trading service. We provide OEM/OEM service.
Q2 : What's your delivery time?
A2 : This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q3 : Can your company accept customize?
A3 : Welcome OEM & ODM.
Q4 : How do you solve after sale service?
A4 : This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you.
Q5 : Can you accept the small order?
A5 : Yes, small order is available in our company.
Q6 : Do you have OEM&ODM service?
A6 : Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q7 : How can I protect my transaction with your company?
A7 : The transaction is secured by Alibaba Trade Assurance service who provides you with Payment, Product-quality and Shipping protection. Your order will be protected up to 30 days after you receive the goods. It supports payment by below options:
