| Brand Name: | ATNJ |
| Model Number: | AT-5 Bands |
| MOQ: | 5Pcs |
| Price: | USD+1800---2300+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

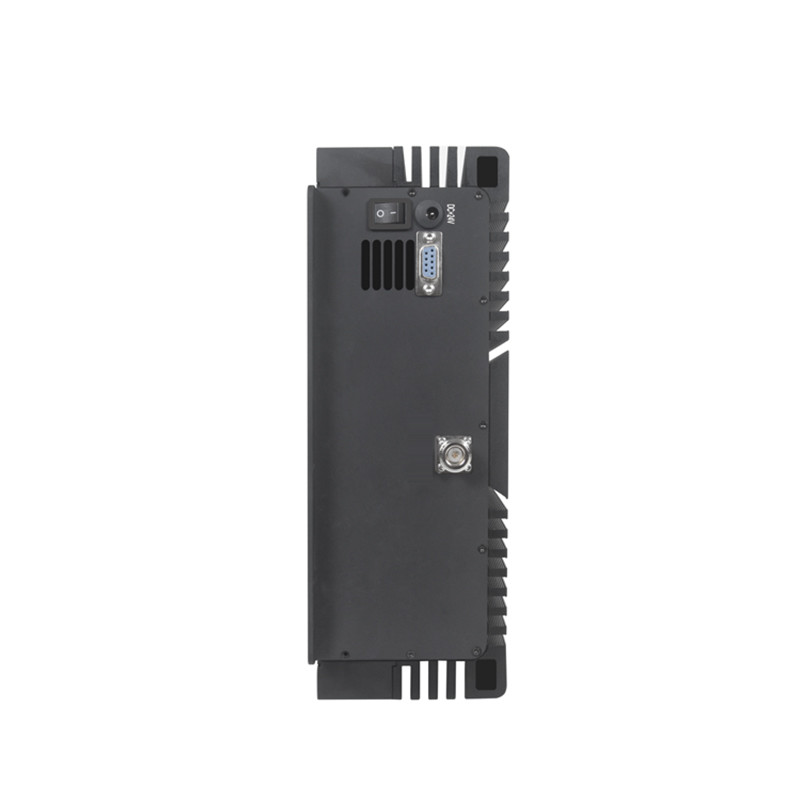

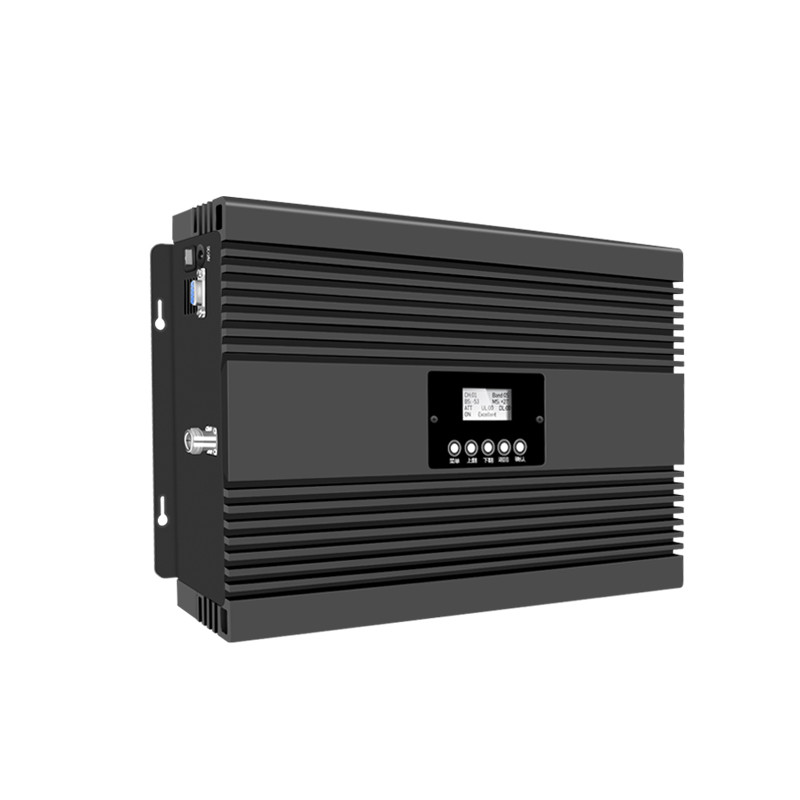

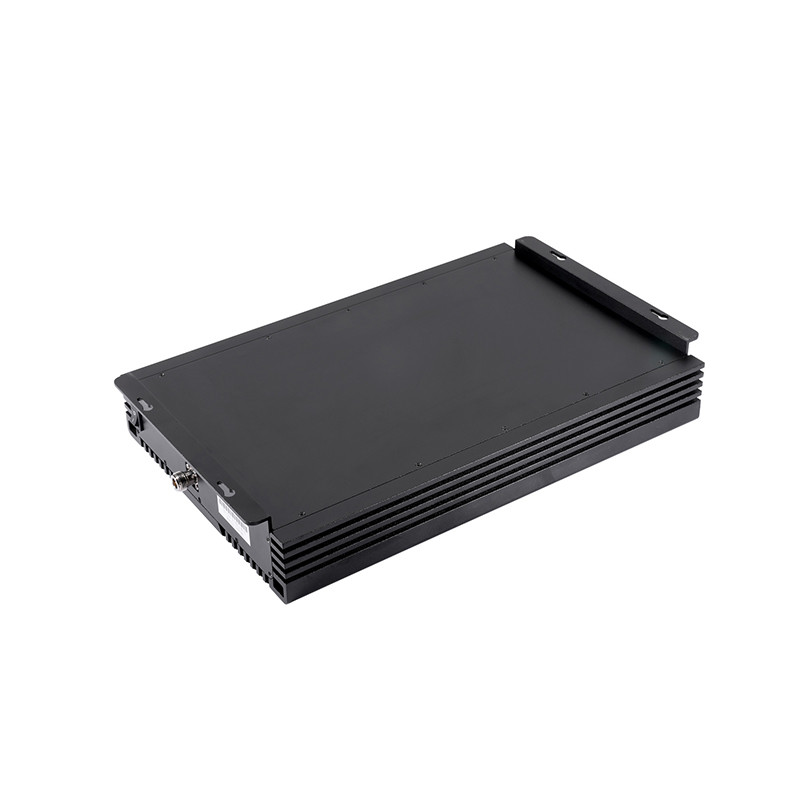

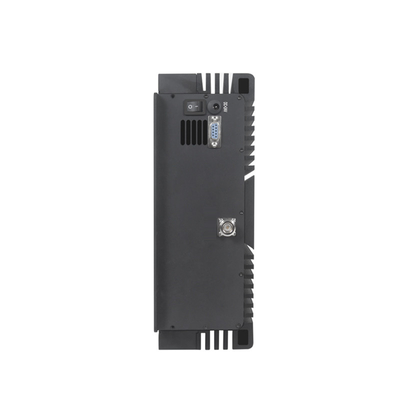

2G 3G 4G 5G Mobile Signal Boosters
Five-bands Full Netcom 2G 3G 4G 5G Multi Band Repeater Aellular Signal Amplifier Indoor Repeater
Signal Booster Description:
When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
|
CDMA 850 |
825-835MHz/870-880MHz(Uplink / Downlink ) |
|
GSM 900 |
889-915MHz/934-960MHz(Uplink / Downlink ) |
|
DCS 1800 |
1710-1755MHz/1805-1850MHz(Uplink / Downlink ) |
|
WCDMA 2100 |
1940-1955MHz/2130-2145MHz(Uplink / Downlink ) |
|
FDD-LTE 1800 |
1755-1785MHz/1850-1880MHz(Uplink / Downlink ) |
|
TDD-LTE 2600 |
2575-2675MHz(Uplink / Downlink ) |
|
|
Uplink |
Downlink |
|
Max Gain |
75 |
80 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥20 |
≥20 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
20±3 |
27±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
|
|
|
|
|
5 Band Mobile signal booster Parameter index
|
Working Voltage |
DC24V |
|
Working Current |
<5A |
|
Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
N-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
416X268X71mm |
|
Weight |
8.5kg |
Further detail pls click here for downloading the products specification:
Multi-Band High Power RF Repeater.pdf
5 Band Mobile signal booster Installation Diagram
Signal Booster Structure Size
Where To Use
|
