3G Signal Booster
>

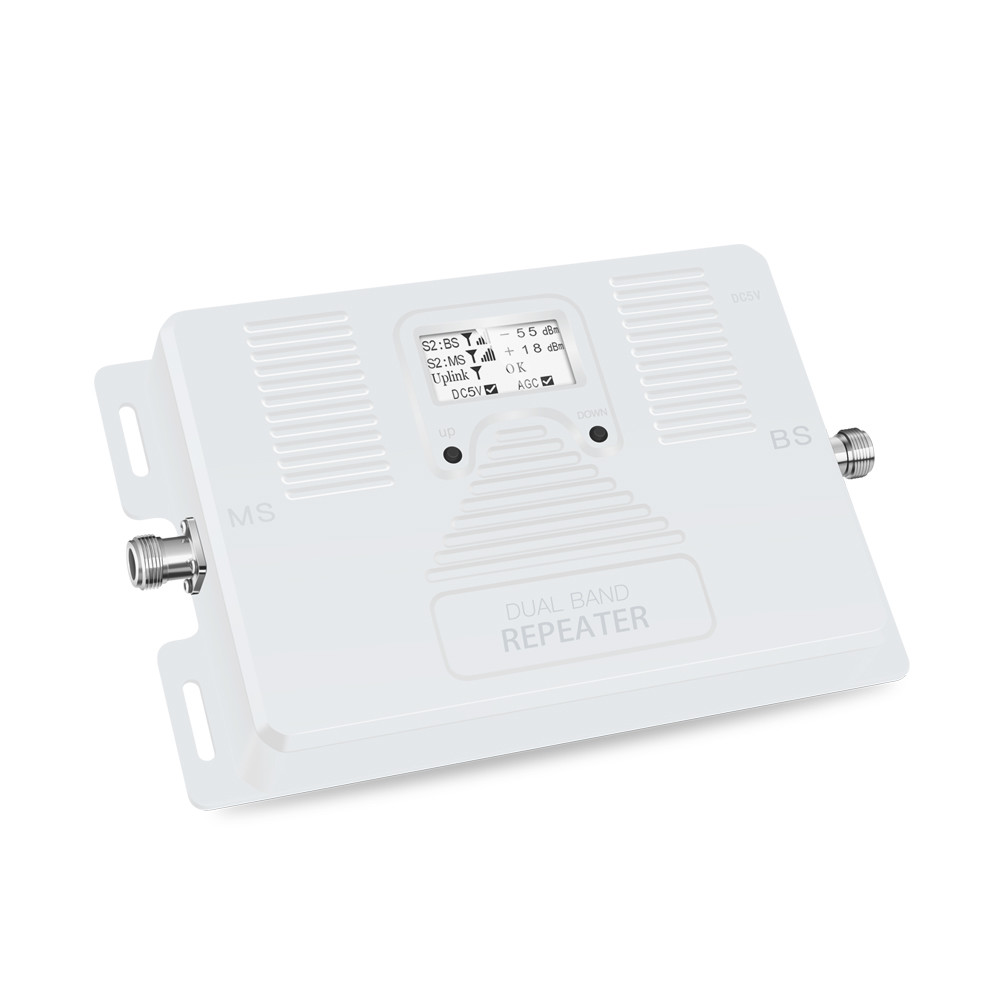

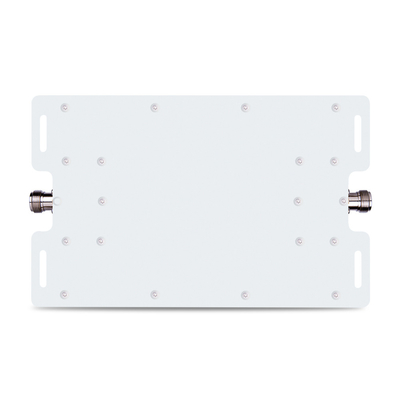

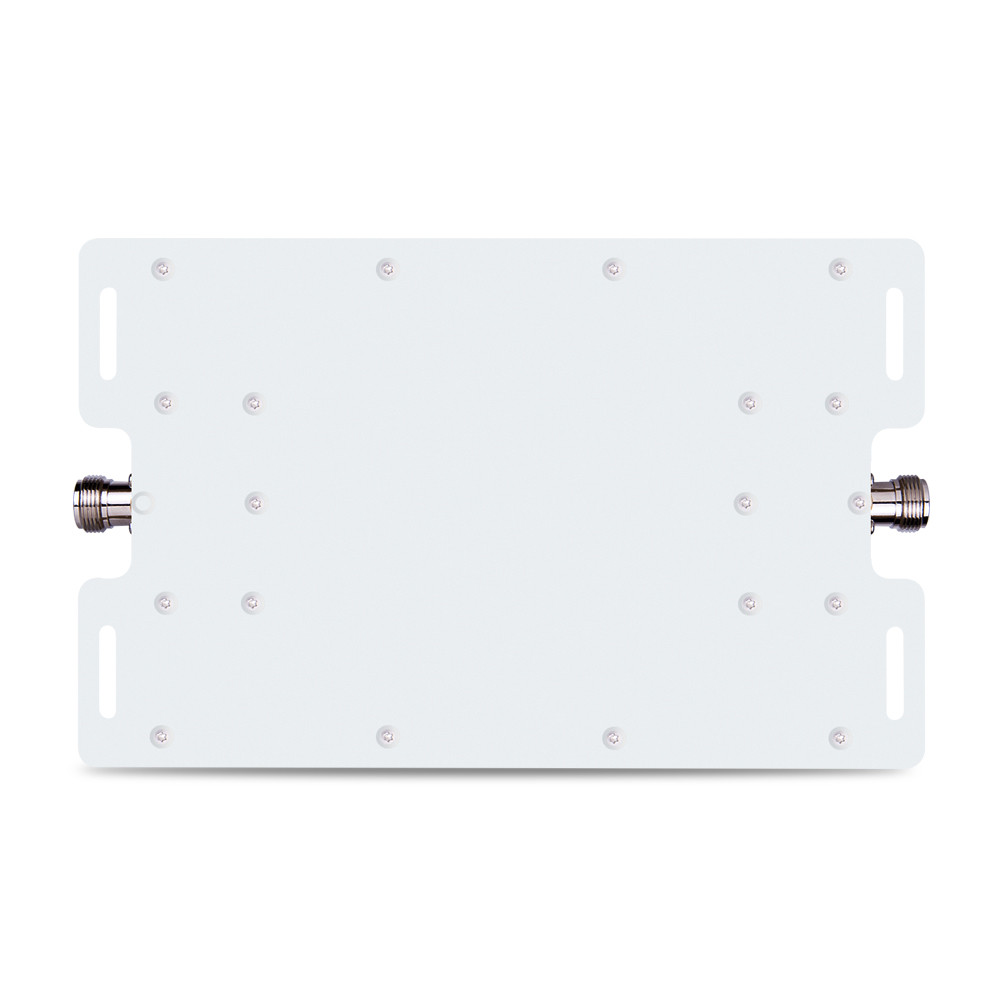

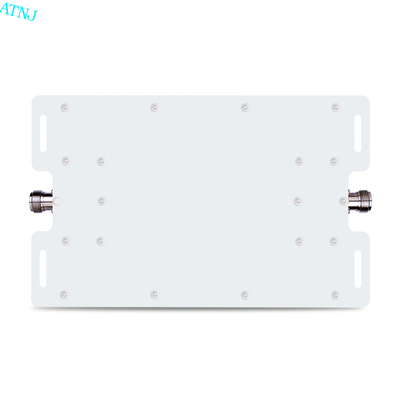

Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater

Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater

Brand Name: ATNJ
Model Number: JS-DB850/1900
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
1900MHz Frequency Range:
1850-1910MHz / 1930-1990MHz
Color:
Gold And Black And White And Customized
Warranty:
36 Months
Packing Size:
52x21x16cm
Products Type:
Cellphone Signal Booster, Cell Phone Signal
Supply Ability:
1000+unit+per day.
High Light:

1900MHz 3G Signal Booster

,

70dB GSM 3G Signal Booster

,

850MHz Cell Phone Repeater

Product Description

Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater

70dB Gain Dual Band Cell Phone Repeater 850 / 1900MHz 2G 3G 4G Signal Booster Amplifier



General


The 850 / 1900MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.


Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz , 1850-1910MHz

Downlink

869-894MHz , 1930-1990MHz

Frequency Bandwidth

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1900MHz A032 mobile signal repeater.pdf

 Selling Point



1. Smart LCD : Show the real-time signal strength.



2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.



3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.



4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.



5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.





Product Description





Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 0Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 1Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 2Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 3Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 4Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 5




Accessories

a. Dual band signal booster;

b. Indoor Ceiling antenna;

c. Outdoor Log-periodic antenna;

d. 20meter outdoor cable and 5meter indoor cable;

e. User manual;

f. Power adapter.




Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 6


Installation:

The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.



Connection:

A. BTS Port : donor antenna cable is connected with Outdoor Port;
B. MS Port : service whip antenna is connected with Indoor Port;
C. DC IN : connected with Power adaptor.




Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 7 Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 8



The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 9Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 10Dual Band 850MHz 1900MHz 3G Signal Booster 70dB Cell Phone Repeater 11



FAQ:


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.


2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.


3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.

5. Can I install a signal repeater myself?
Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.
