Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-008-G
Document: GSM 900MHz B08 RF Repeater....cx.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+120---130+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
880-915MHz，925-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G 3G, Voice |
WIFI Contronal: |
Done |
Products Name: |
Cellular Signal Booster |
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
880-915MHz，925-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G 3G, Voice |
WIFI Contronal: |
Done |
Products Name: |
Cellular Signal Booster |
GSM 900MHz Mobile Signal Repeater
Digital GSM Band8 GSM 900MHz Band Selected Mobile Signal Repeater Amplifier
Product Detail:
Model No :AS-008-G
With ALC AGC Function, WIFI control and monitor
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G 3G, Voice
Gain :70±2dB
Power Supply :AC110V～220V;DC+5V/2A
Connector Type: SMA-F
Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-BS-G |
|||
|
Frenquecy Range |
UplinK:890~915MHz Downlink:935~960MHz |
|||
|
Working System |
Band8 GSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Range,Supports from 0.2 to 20MHz bandwidth adjusted |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+5V/2A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
WIFI Control |
Done |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf

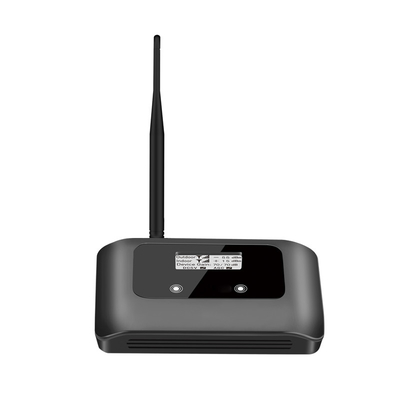

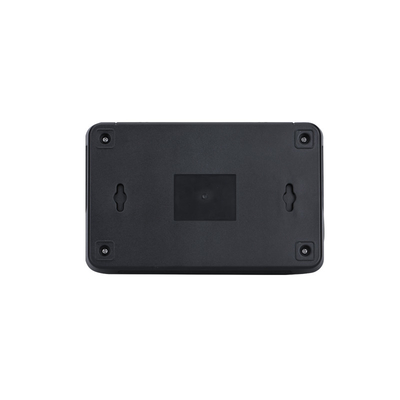

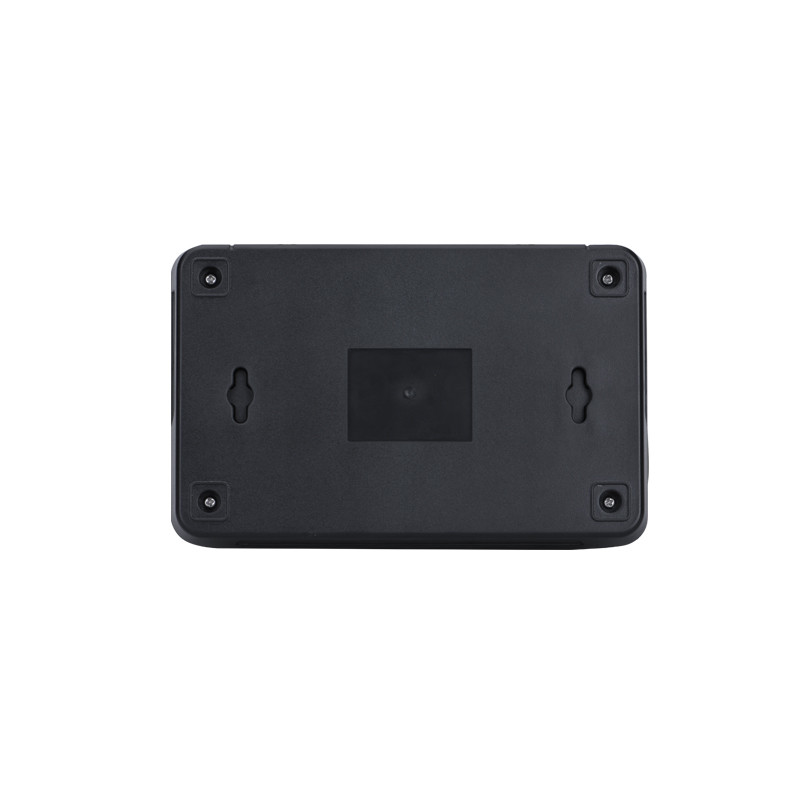

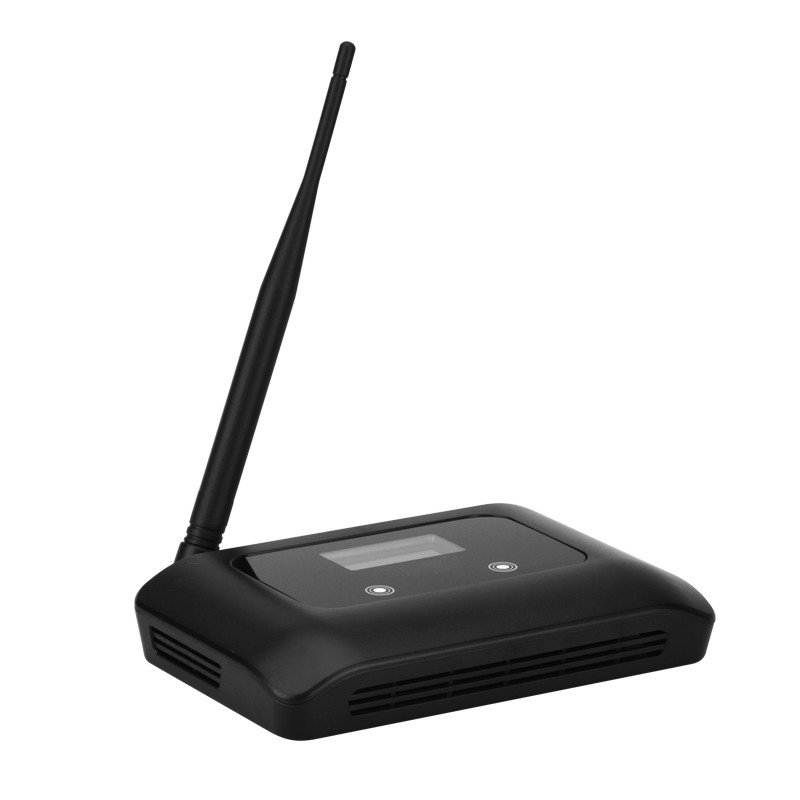

Product Pictures
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.
FAQ
1. What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2. What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3. What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates?
Our warranty is 36 months .
We have CE, ROHS, FCC certificates .
