Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-AWS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1710-1755MHz，2110-2155MHz |
Device Gain: |
70dB |
Device Power: |
17±3 |
Color: |
Black ,White Customized |
Interface: |
SMA/F |
Material: |
Alloy ,Plastic |
Products Name: |
Signal Amplifier 3G 4G |
Warranty: |
3 Years |
Frequency Range: |
1710-1755MHz，2110-2155MHz |
Device Gain: |
70dB |
Device Power: |
17±3 |
Color: |
Black ,White Customized |
Interface: |
SMA/F |
Material: |
Alloy ,Plastic |
Products Name: |
Signal Amplifier 3G 4G |
Warranty: |
3 Years |

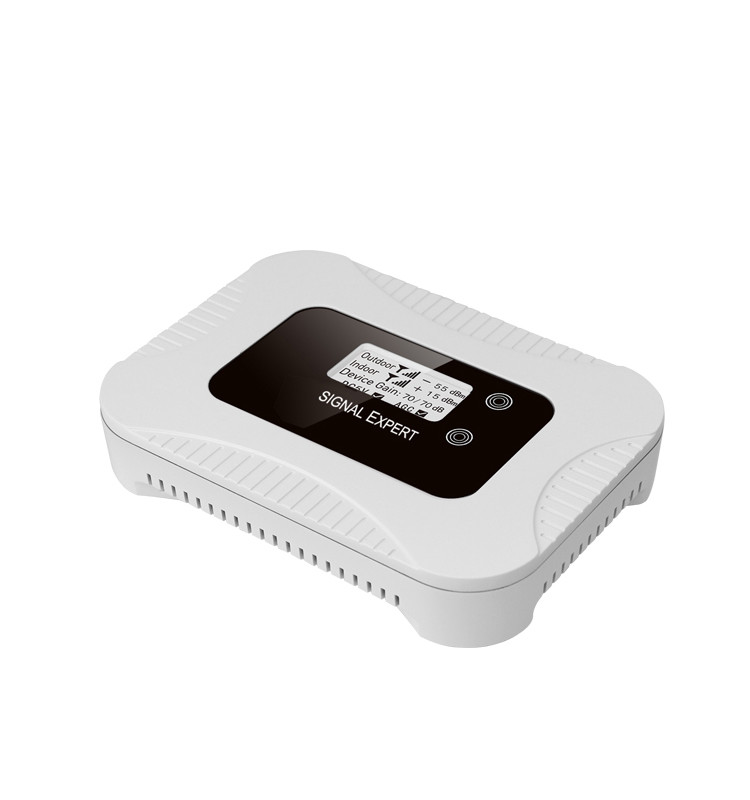

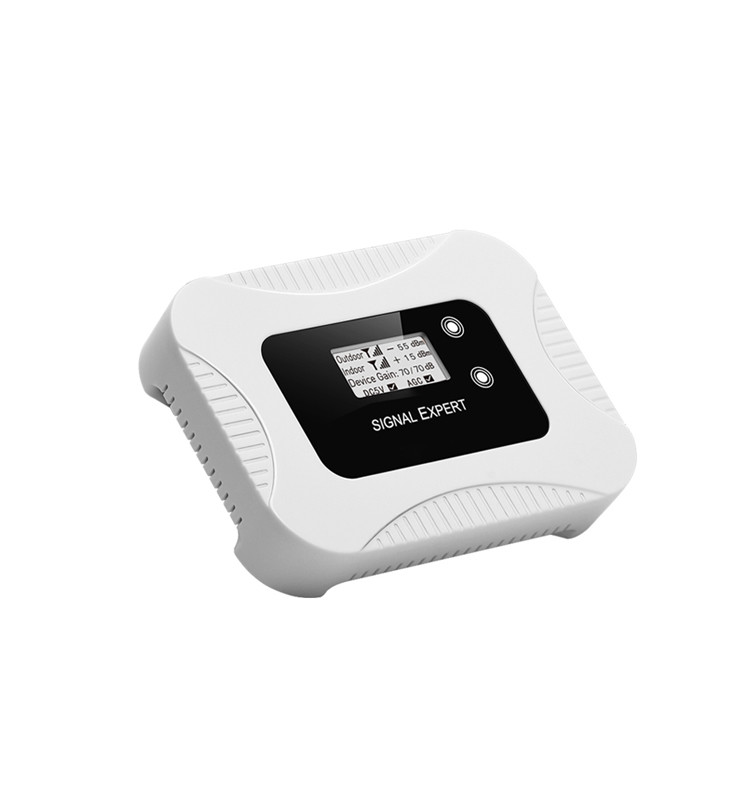

AWS 1700MHz 2100MHz 3G Signal Booster With LCD Real Time Display
AWS 1700MHz 2100MHz 3G Signal Booster
Model No :AWS
Can control gain automatically. Avoid base station interference
(Band 4) 1700/2100MHz -- Uplink frequency: 1710-1755MHz/Downlink frequency :2110-2155MHz
Network support : 3G 4G, Internet
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1755MHz |
|
Downlink |
2110-2155MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<= 2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Production Capacity |
10000/Per Month |
|
|
Transport Package |
Yagi + Pen Antenna |
|
Further detail pls click here for downloading the products specification:
AWS 1700MHz B07 Signal Repeater.pdf
Selling Point
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
3G 4G Mobile Signal Repeater Description:
Cell Phone Signal Amplifier is suitable for small Flat which has 2-4 rooms with 70dB Gain, It can support ultra wide band including 3G,4G. And improve your cell phone signal level In mobile communication, it is inevitable that macro-cell covere caagnnot cover weak or dead zones; to use repeater is a good choice in these areas. These band selective repeaters mainly applied in covering small blind and weak zones.
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
