Home > products > Mobile Signal Repeater > Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater

Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AT-008-G

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+120---130+kit

Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

900MHz Mobile Signal Repeater

,

GSM Mobile Signal Repeater

,

900MHz Mobile Signal Amplifier

Booster Gain:
68±2dB
Booster Power:
17--20dBm
Frequency Range:
880-915MHz,925-960MHz
Connector Type::
SMA/F
Material:
Zinc Alloy ,Plastic
Support Network:
2G 3G, Voice
WIFI Contronal:
Done
Products Name:
Cellular Signal Booster
Booster Gain:
68±2dB
Booster Power:
17--20dBm
Frequency Range:
880-915MHz,925-960MHz
Connector Type::
SMA/F
Material:
Zinc Alloy ,Plastic
Support Network:
2G 3G, Voice
WIFI Contronal:
Done
Products Name:
Cellular Signal Booster
Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater

GSM 900MHz Mobile Signal Repeater



Digital GSM Band8 GSM 900MHz Band Selected Mobile Signal Repeater Amplifier



Product Detail:



Model No :AS-008-G

With ALC AGC Function, WIFI control and monitor

Can control gain automatically. Avoid base station interference

(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G 3G, Voice
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-F

Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted

Single Band Repeater with AGC/MGC

Model

AS-BS-G

Frenquecy Range

UplinK:890~915MHz Downlink:935~960MHz

Working System

Band8 GSM 900MHz

Gain

70dB

Device Output Power

17-20dBm

Bandwidth

Wide Range,Supports from 0.2 to 20MHz bandwidth adjusted

Ripple in Band

≤4dB

Noise Figure @ Max.Gain

≤6dB

V.S.W.R

≤2dB

MTBF

>50000Hours

Power Supply

AC110V~220V;DC+5V/2A

Power Comsumption

<20W

Impedance Matching

50ohm

Mechanical Specification

RF Connector

SMA/F

Cooling

Heatsink Convection Cooling

Dimension

170*130*26(mm)

Net Weight

0.35KG

Installation Type

Wall Installation or Desk

Environment Conditions

IP40

WIFI Control

Done

Operating Temperature

-10°C~55°C

Further detail pls click here for downloading the products specification:

GSM 900MHz B07 Signal Repeater.pdf

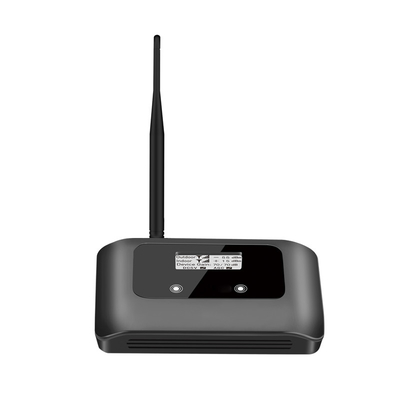

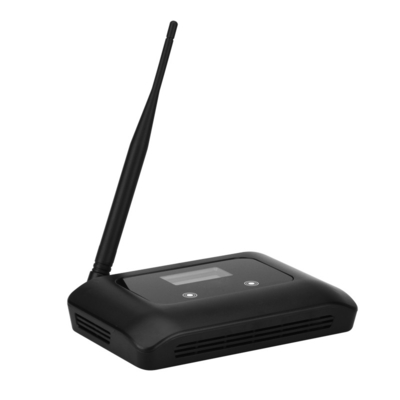

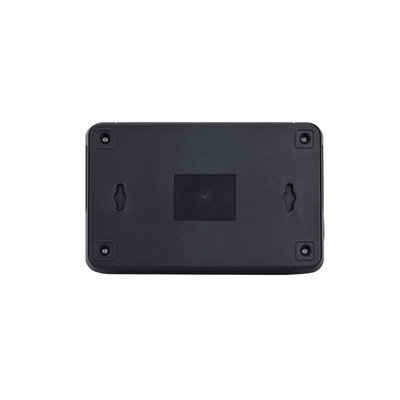

Product Pictures

Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater 0

⭐ Intelligent to guide the installation with LCD .

⭐ Real time display the signal strength .

⭐ Automatic dormancy when no user make the calling .

⭐ Automatic alarm when installation mistake and provide the according solution .

⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

⭐ Initiative reminding when the device was damaged .

⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

⭐ A variety of appearance customization.

Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater 1

Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater 2



FAQ

1. What is your advantage?

---Your inquiry will be replied in 24hours .

---OEM&ODM, for any of your customized products we can help you to design and put into product .

---All our products with 36months guarantee .

2. What is our Payment methods?

We agree T/T, Western Union, PayPal.L/C for old customers.

3. What is our Shipping & Trade terms?

Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .

Delivered time: 1-3 business days for sample, 10-25 days for mass order .

Trade terms: EXW, FOB , CIF etc .

4.  What is our Warranty and Certificates?

Our warranty is 36 months .

We have CE, ROHS, FCC certificates .
