Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AT-MS-1800/2100
Document: 5W 1800+2100MHz Dual band R...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1500--1700+kit
Packaging Details: Standard neutral packing
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Connector Type:: |
N/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G, 3G, 4G, Voice |
Products Type: |
All Mobile Network Duster 4g 5g Signal Booster, Kit Repeater 5g |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Connector Type:: |
N/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G, 3G, 4G, Voice |
Products Type: |
All Mobile Network Duster 4g 5g Signal Booster, Kit Repeater 5g |

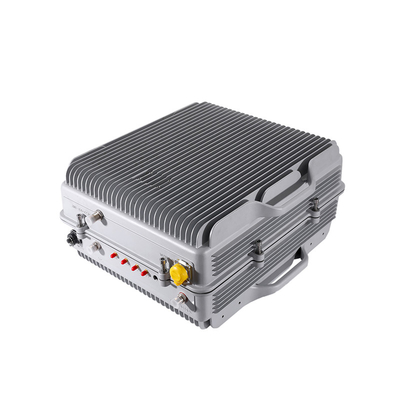

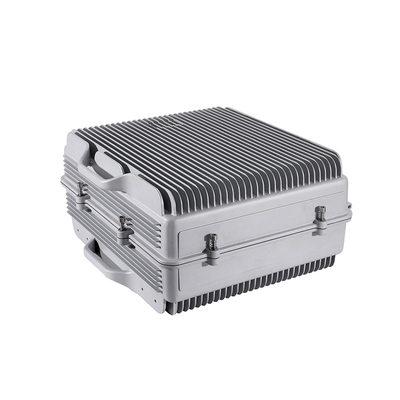

2G 3G 4G 5W Mobile Hotspot Signal Booster Dual Band Cell Phone Repeater
5 Watt Customized 1800 / 2100MHz Mobile Signal Repeater 2G 3G 4G Dual Band Booster Amplifier
Model No :AT-MS-1800/2100
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 1) 2100MHz -- Uplink frequency : 1920 - 1980MHz / Downlink frequency : 2110 - 2170MHz
(Band 3) 1800MHz -- Uplink frequency : 1710 - 1785MHz / Downlink frequency : 1805 - 1880MHz
Network support : 2G 3G 4G Voice
Gain :80dB
Output power : 5watt
Power Supply : AC110V~220V; DC+24V 5A
Connector Type : N-F
Wide Range .
Single Band Repeater with AGC/MGC | ||||
Device Model | AT-MS-1800/2100 | |||
Frenquecy Range 1 | UplinK: 1710-1785MHz Downlink: 1805-1880MHz | |||
Frenquecy Range 2 | UplinK: 1920-1980MHz Downlink: 2110-2170MHz | |||
Working System | Band1 2100MHz; Band3 1800MHz | |||
Gain | 90dB | |||
Device Output Power | 37dBm | |||
Bandwidth | Wide Range | |||
Ripple in Band | ≤4dB | |||
Noise Figure @ Max.Gain | ≤6dB | |||
V.S.W.R | ≤2dB | |||
MTBF | >50000Hours | |||
Power Supply | AC110V~220V;DC+24V5A | |||
Power Comsumption | <20W | |||
Impedance Matching | 50ohm | |||
Mechanical Specification | ||||
RF Connector | N/F | |||
Cooling | Heatsink Convection Cooling | |||
Dimension | 170*130*26(mm) | |||
Net Weight | 0.35KG | |||
Installation Type | Wall Installation or Desk | |||
Environment Conditions | IP55X | |||
Origin | Shenzhen | |||
Operating Temperature | -10°C~55°C |
Further detail pls click here for downloading the products specification:
5W 1800+2100 Dual Band Repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.
5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
