Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-900/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1100--1500+kit
Packaging Details: Standard neutral packing
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 3G, 4G, Voice |
Products Type: |
Repeater Gsm 180021007023, Repetidor De Seal 3g |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 3G, 4G, Voice |
Products Type: |
Repeater Gsm 180021007023, Repetidor De Seal 3g |

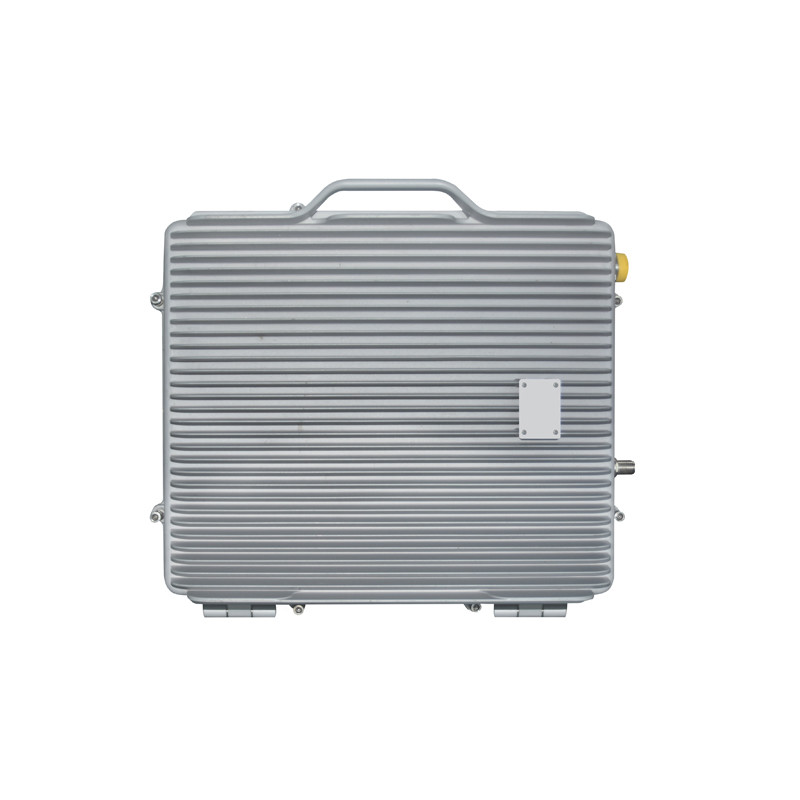

Dual Band 900MHz 2100MHz Mobile Signal Repeater Customized 5 Watt
5 Watt Customized 900 / 2100MHz Mobile Signal Repeater 2G 3G 4G Dual Band Booster Amplifier
Model No :AT-MS-900/2100
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 1) 2100MHz -- Uplink frequency : 1920 - 1980MHz / Downlink frequency : 2110 - 2170MHz
(Band 8) 900MHz -- Uplink frequency : 890 - 915MHz / Downlink frequency : 935 - 960MHz
Network support : 2G 3G 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-900/2100 |
|||
|
Frenquecy Range 1 |
UplinK : 890-915MHz Downlink : 935-960MHz |
|||
|
Frenquecy Range 2 |
UplinK : 1920-1980MHz Downlink : 2110-2170MHz |
|||
|
Working System |
Band1 2100MHz; Band8 900MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 900-2100MHz High Power Signal Repeater.pdf

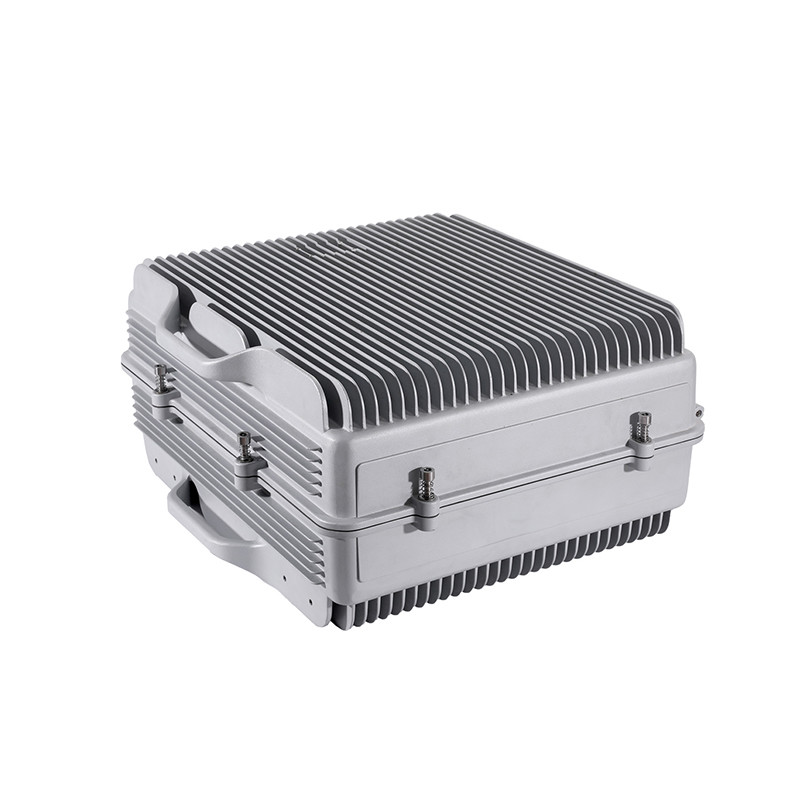

Selling Point
One device connects with several antennas to cover large area
1. Wide Coverage Up To 3000 ㎡.
2. Max Output Power:33dBm Support 2 to 5 Bands.
3. Industrial Design IP65 level waterproof.
4. Full Intelligent LCD Guide.
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation.
The signal amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.
5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
