| Brand Name: | ATNJ |
| Model Number: | AS-DB900/1800 |
| MOQ: | 5Pcs |
| Price: | USD+240---260+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

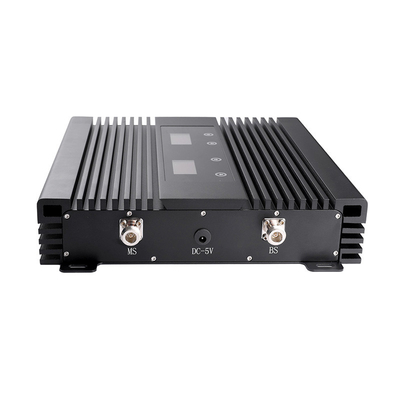

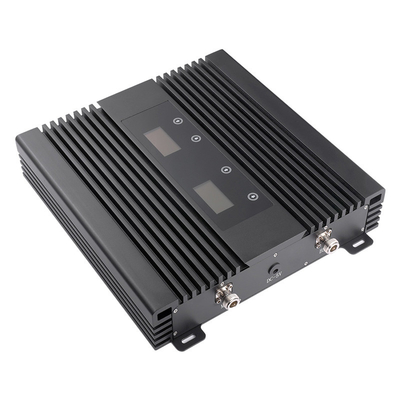

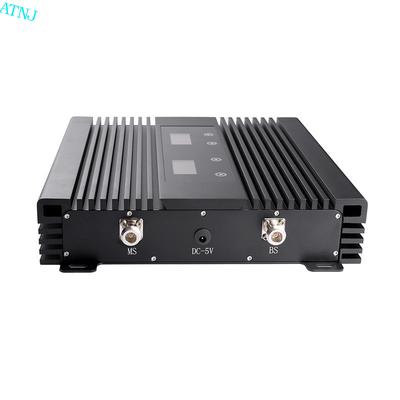

2G 4G Mobile Signal Booster repetidora Signal Amplifier Cell phone amplificateur 4g Phone repeater
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz,1710-1785MHz |
|
Downlink |
935-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Switch |
Power Switch |
|
|
Coverage |
350-800Square Meters |
|
Further detail pls click here for downloading the products specification:
Product Description
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
Packaging Including:
[1] Tri Band Booster Base Unit
[2] AC Power Cord
[3] Outdoor Panel Antenna
[4] Indoor Panel Antenna
[5] 35 Meters White Coax. Cable
We are manufacturer, and have our own factory.
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
FAQ:
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
|
