Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: JS-DB850/1900/P

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+70---85+kit

Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(54x49x33cm)

Delivery Time: 3 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

CDMA 3G Signal Booster

,

5dB 3G Signal Booster

,

5dB 2G Signal Booster

850MHz Frequency Range:
824-849MHz / 869-894MHz
1900MHz Frequency Range:
1850-1910MHz / 1930-1990MHz
Gain:
70±3dB
Output Power:
20±3dBm
Color:
Grey Or Cuztomized
Products Type:
Cellular Amplifier, Amplifier
850MHz Frequency Range:
824-849MHz / 869-894MHz
1900MHz Frequency Range:
1850-1910MHz / 1930-1990MHz
Gain:
70±3dB
Output Power:
20±3dBm
Color:
Grey Or Cuztomized
Products Type:
Cellular Amplifier, Amplifier
Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home

Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home







Selling Point

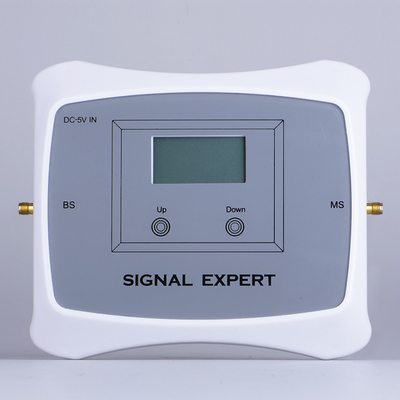

1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1850-1910MHz

Downlink

869-894MHz, 1930-1990MHz

Frequency Bandwidth

25MHz&60MHz

Gain

65±5dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

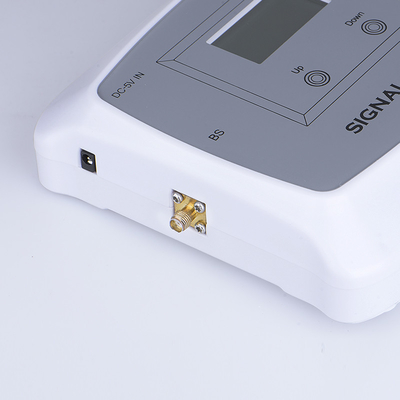

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1900MHz 006 mobile signal repeater.pdf



Product Description



With ALC AGC Function

Can control gain automatically. Avoid base station interference

Network support : CDMA 850MHz + PCS 1900MHz



The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.



How Booster/Repeater Works?
Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.

1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to the installed Repeater.

3) The repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.





Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 0

Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 1Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 2Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 3Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 4Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 5

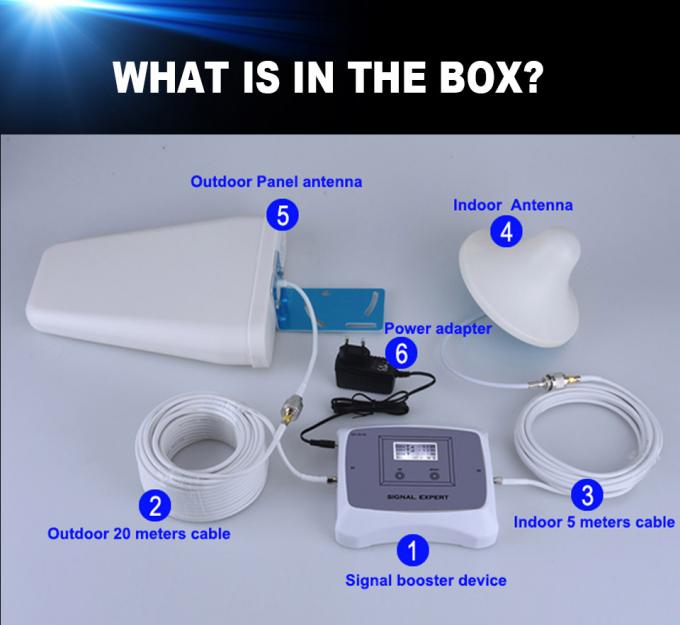

Packaging Including:



1. Dual Band Booster

2. Power adapter

3. Outdoor Log-periodic antenna

4. Indoor Ceiling antenna

5. 5 meters cable

6. 20 meters cable





Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 6Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 7Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 8

Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 9Customized CDMA 2G 3G Signal Booster 850 / 1900MHz cell phone signal booster for home 10





FAQ:


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.



4. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.



5. How many square meters can be covered?
For different models, the covered square meters are different.
